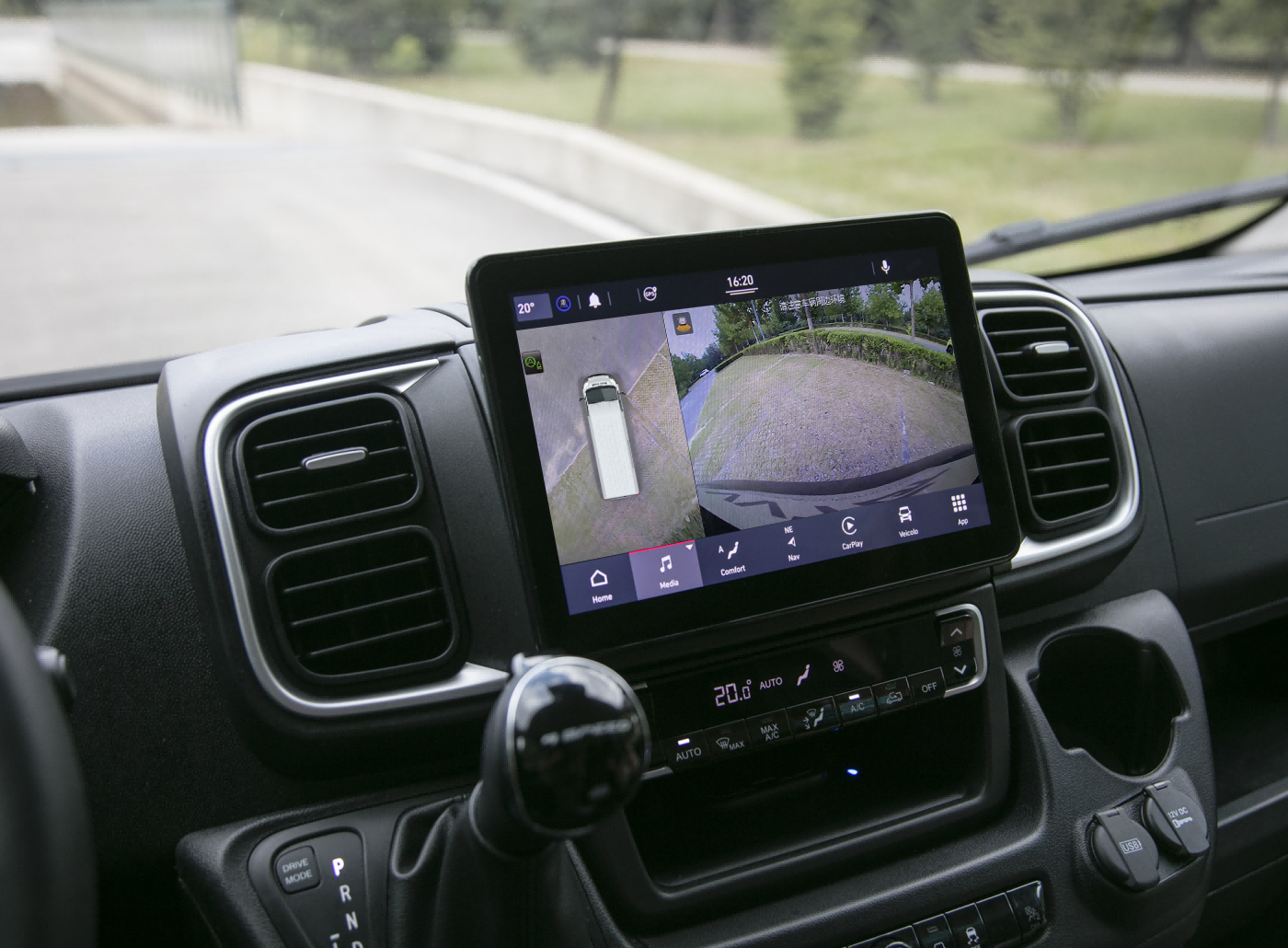

LVDS 360°AVM System Solution For RV
01 Reversing camera system
Support decoding Dezhou Instruments TI serial chips, such as TI953 / TI935 / TI933 / TI913, etc.
Support decoding MAXIM serial chips, such as max96705 / max96701 / max9295A / max96717 / max96717f, etc.
Customization experience: Yutong Bus original factory OE project.
02 Specification upgrade
Compared with traditional AHD signals, under the same image quality, the camera transmits LVDS signals faster and anti-interference ability stronger.

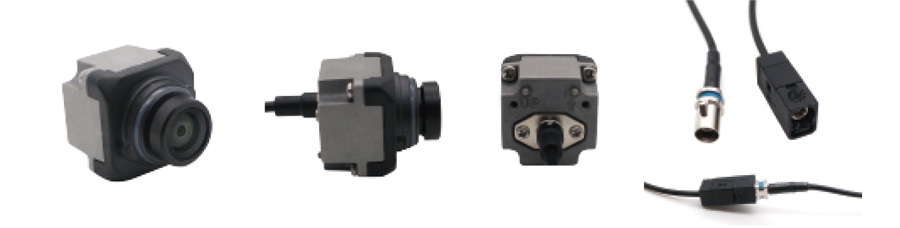

03 Specification parameter sheet
| Item | Parameter |
| Signal output | LVDS |
| Power supply | Coaxial power supply (POC) |
| Image Sensor | 1/3.7inch |
| Operation voltage range | 6V-16V |
| Working current | 50mA±20mA &12V |
| Maximum power | ≦0.84W DC12 V |
| Video output frame rate | 30fps |
| Output resolution | 1920*1080 |
| Output format | YUV422 8bit |
| Harness impedance | 50ohm |
| Infrared filter | IR |
| Start Time | ≦500ms |
| Signal to Noise ratio | 42dB |
| Wide dynamic | 120dB |
| Lens angle | H=130±5°，V=80±5° |

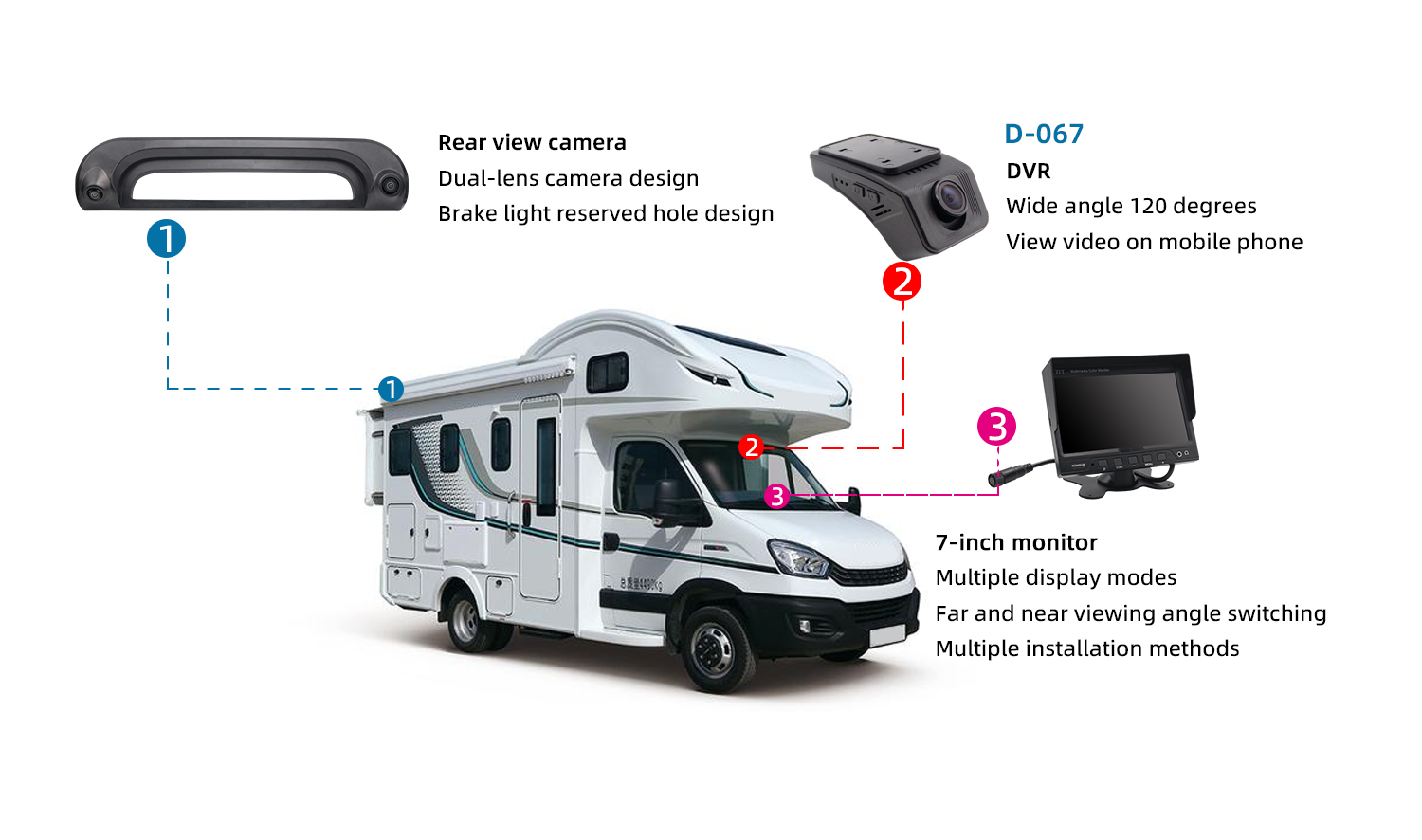

RV reversing Monitoring system
To enhance the safe driving performance of RV, you can choose to install an RV HD monitor system, including rear view camera and driving recorder. The rear view camera with dual lens design is installed at the top of the rear of the car, which is not only used to assist in reversing, but also as a RV brake light because of the design of the pre-drilled hole.
