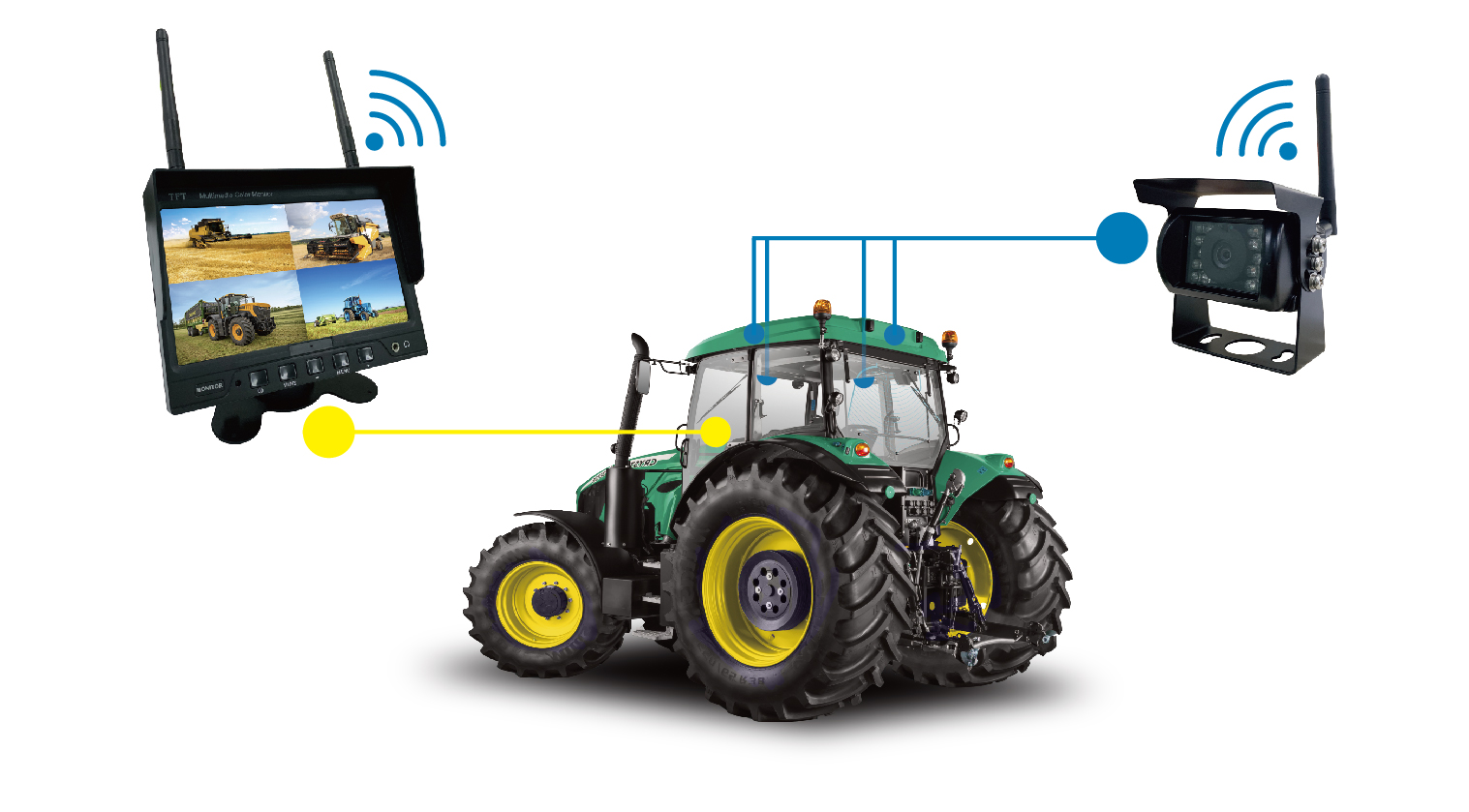

Wireless Monitor System For Agricultural vehicle
01 Function
Channel blind area monitoring

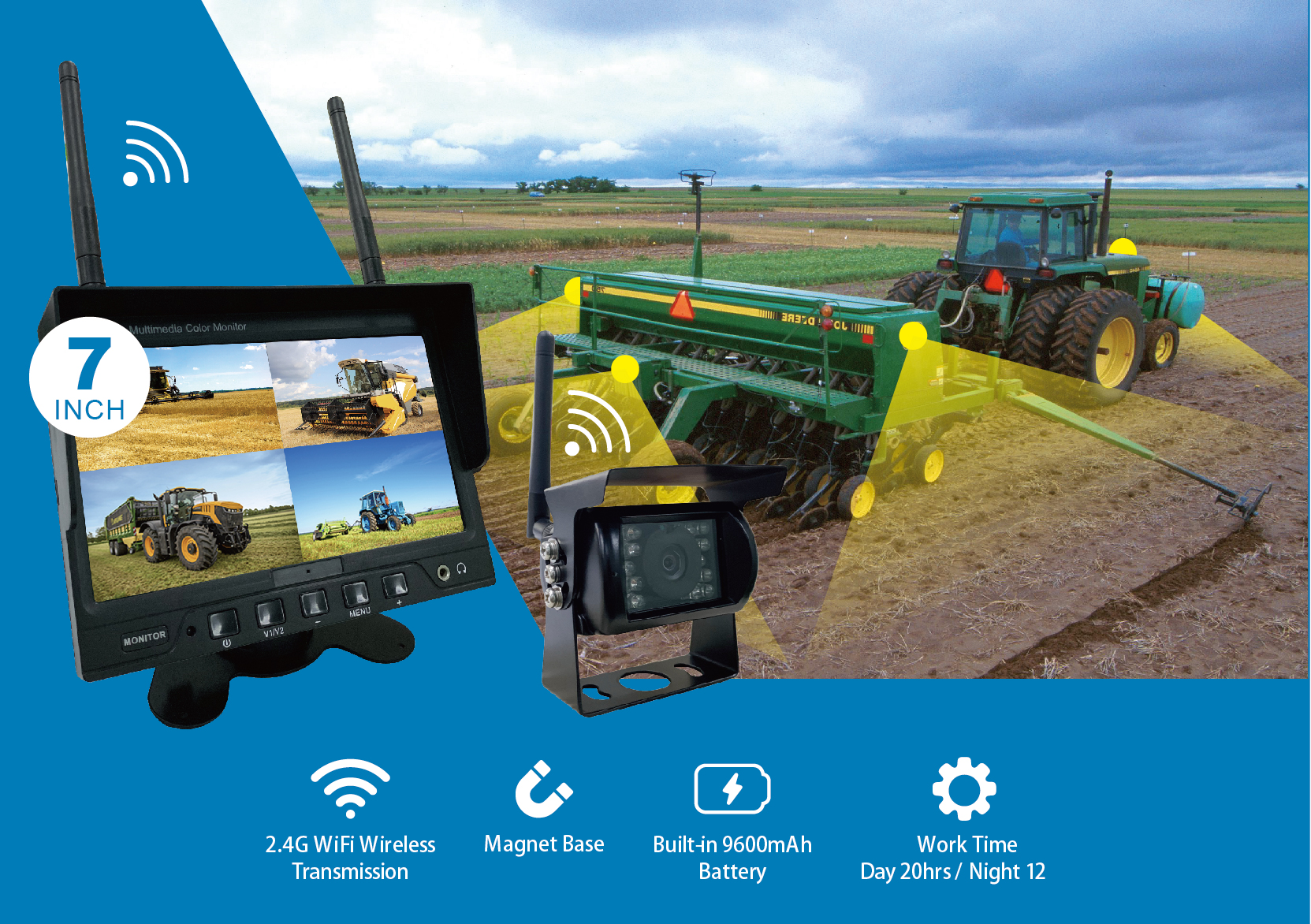

It can be used to monitor the sowing equipment of the seeder, the blind area of the tractor tail, and the box monitoring of the mud truck.
Ultra long transmission distance 200 meters
Remote monitoring of agricultural machinery equipment, more efficient production.
Customization multi-language
Built-in German, French, British, Israeli, Japanese, Chinese and other commonly used languages.
02 Feature
1. Display four channels on the same screen
2. Remove cables from installation
3. AHD digital signal
4. Top Speed is paired in 3 seconds
5. Signal stability and anti-interference
6. Low latency real-time transmission
7. Automatic infrared night vision
8. Adaptive brightness adjustment
03 Specification
| Item | Parameter | Item | Parameter |
| Model | CA-7006 | Model | CA-9880 |
| Screen size | 7" | TV Mode | PAL / NTSC |
| Dot Resolution | 1024(RGB )*600Pixel | Image Sensor | 1/3.7 inch |
| Interface | 1/2/3/4 Video in | Pixsls | 682*496 |
| Brightness | 500cd/m² | Signal to Noise ratio | ≥47dB |
| Power Supply | DC40V-60V | Operation voltage range | DC12V(6-16V) |
| Contrast | 500:1 | Video Output | 1± 0.2 Vpp 75Ω |
| Operation Temperature | -20℃~+70℃ | IP rating | IP68 |
| Storage | -30℃~+85℃ | Minimum IIIomination | 0.4 Lux |
| Temperature | CA-7006 | Model | CA-9880 |

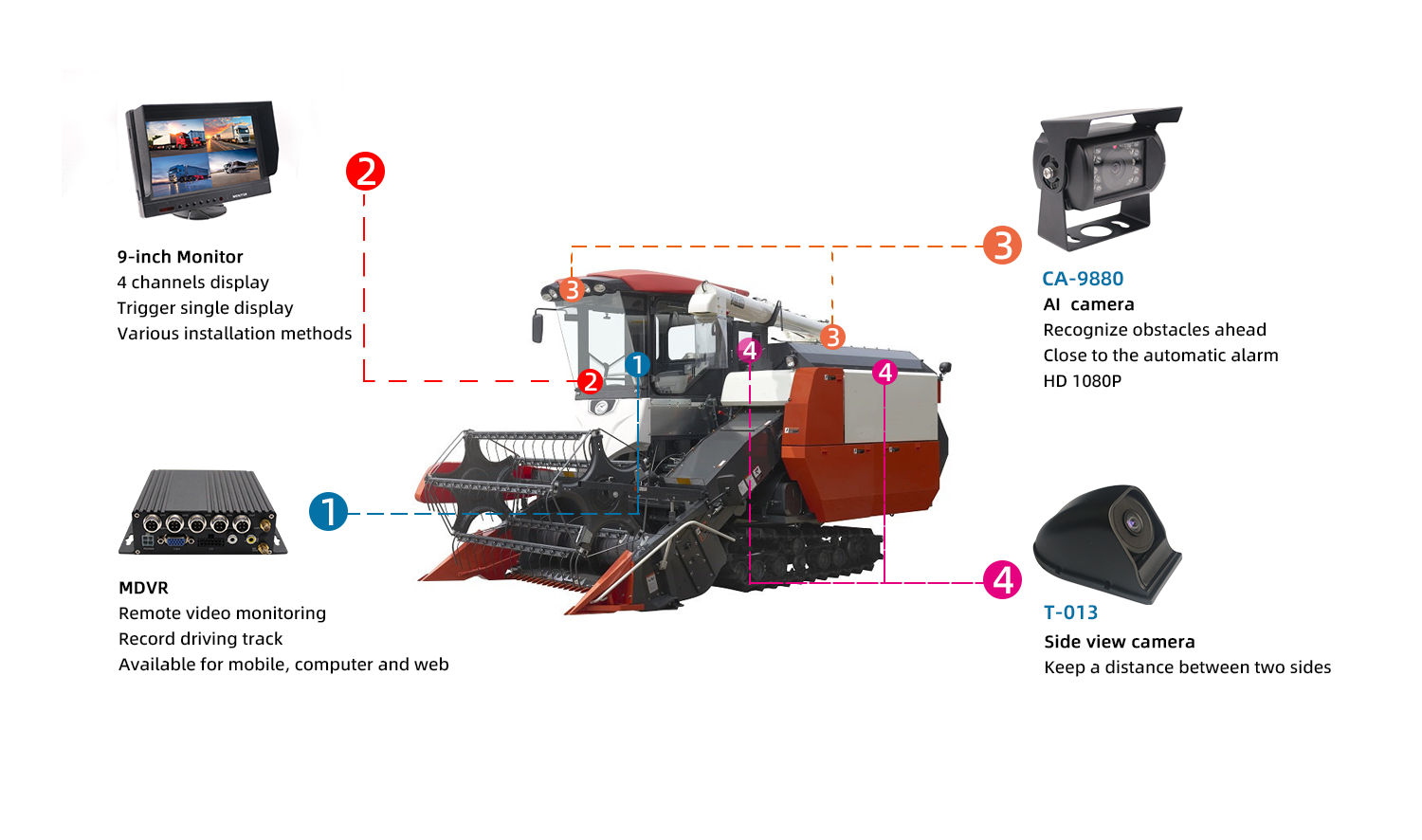

Harvester Intelligent Monitoring System
This is a harvester monitoring system. AI camera and side-view cameras are installed outside the machine.Monitor and DVR are installed inside. The remote monitoring system will make harvesting safer.
