Solutions
AI BSD Digital system Solutions For Trucks
Recommended installation model: bus, truck, driving school coach
Taking the truck as an example, there are hidden dangers in the driving process:
①The right blind area is easy to be ignored when the speed is too fast
②The body is too long, can not see the rear blind area, and the rear car is encountered when changing lanes, and the risk is large
1.Solutions
① For the visual field blind area existing on the right side of the truck, install the blind area monitoring system, to identify nearby pedestrians, cars, lamp posts, and automatically alarm.
② For cars coming from the rear, install a lane change warning assistant system
2.Product composition

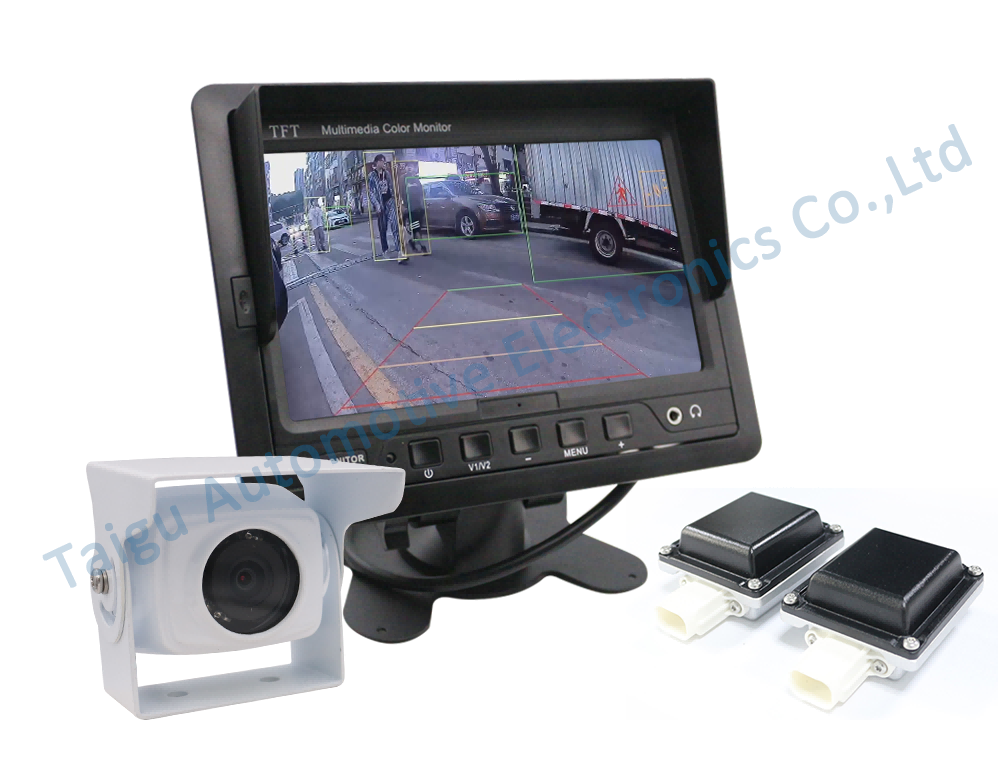

AI camera、7 inch display、Blind Spot Detection
3.Function introduction
①Pedestrians and vehicles monitoring and early warning

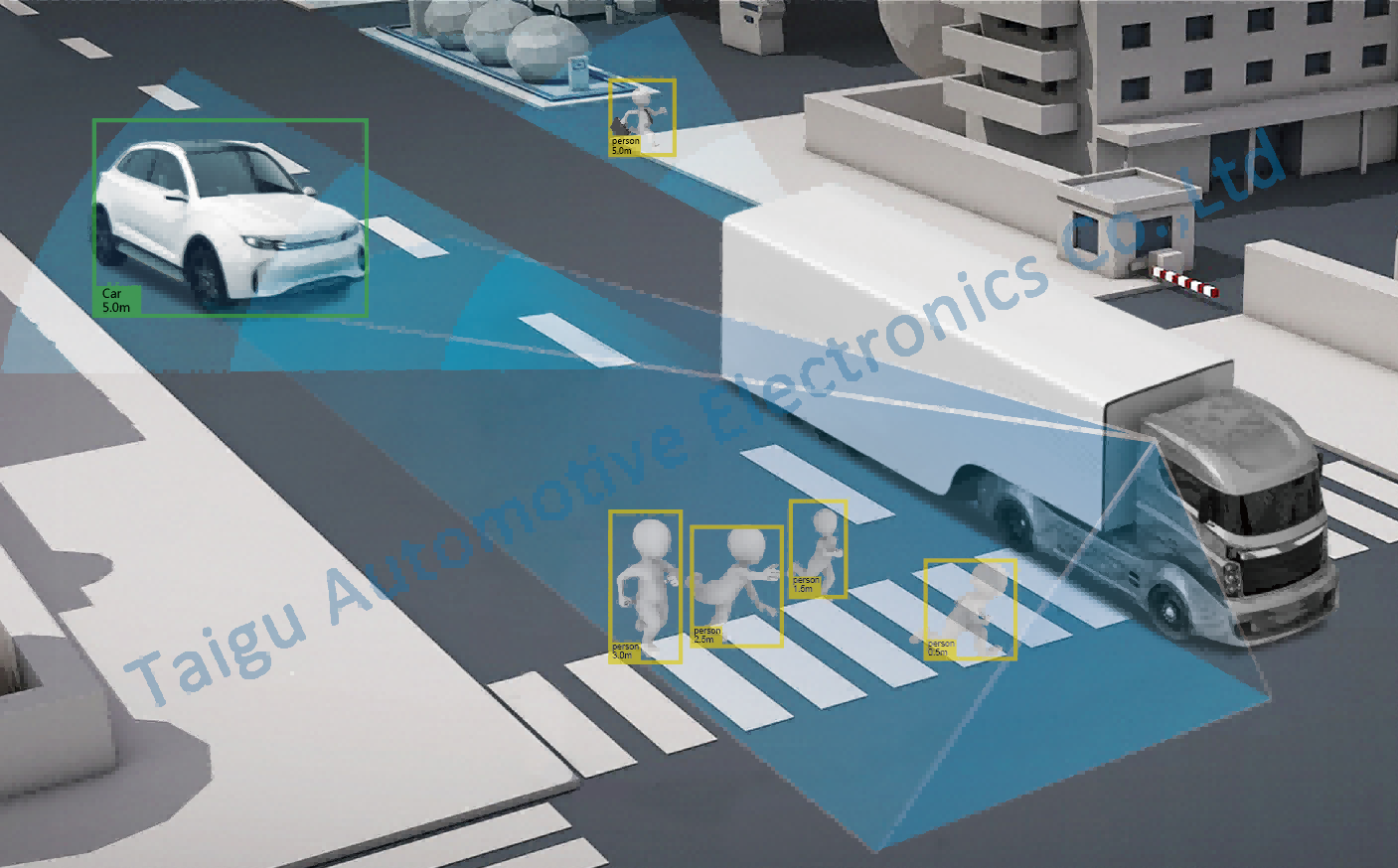

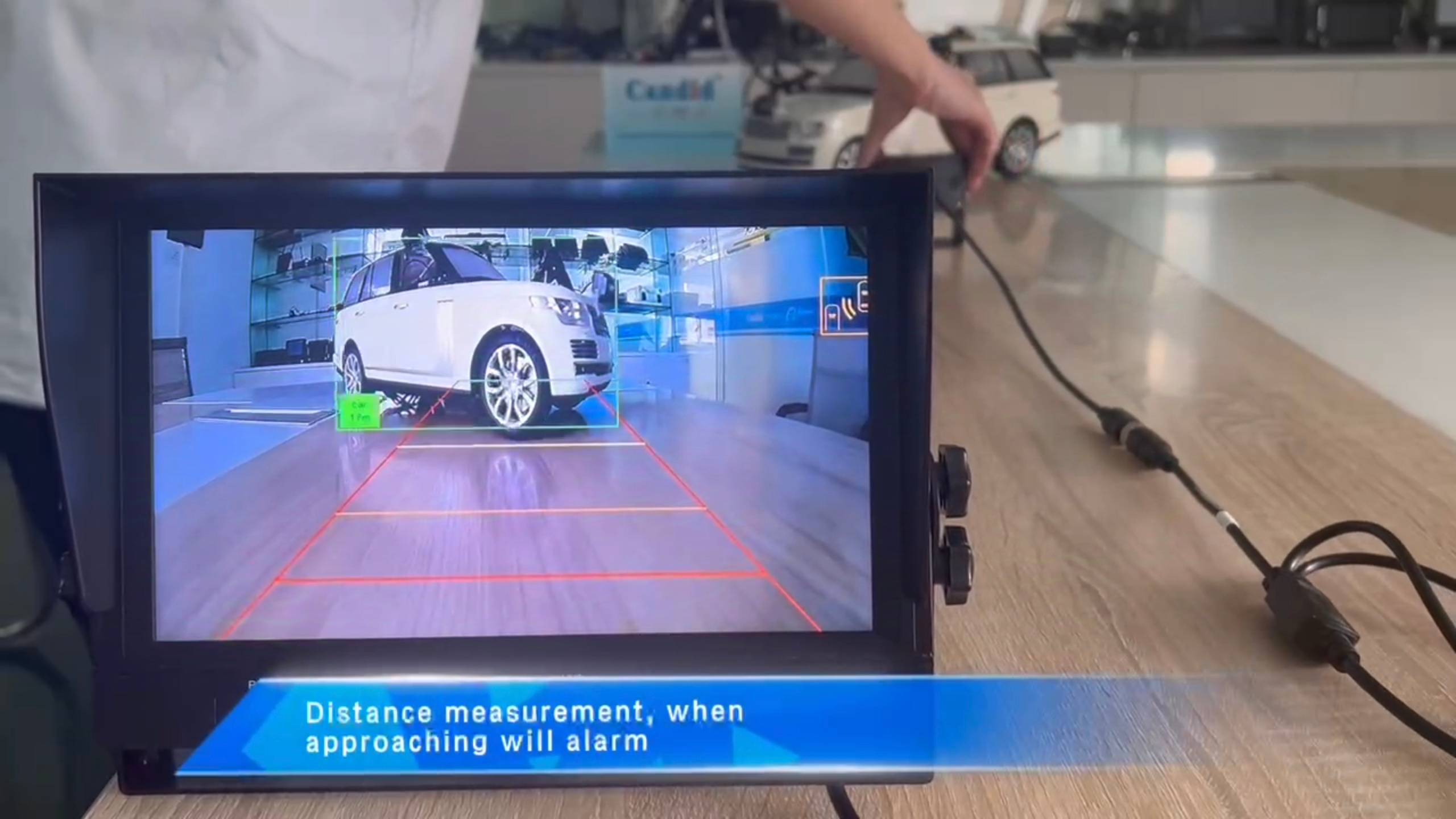

If the AI camera is focused on the right blind spot, the AI camera will mark the recognized pedestrians as yellow boxes and the cars as green boxes and the distance values will be displayed so that the driver can judge the distance of obstacles.

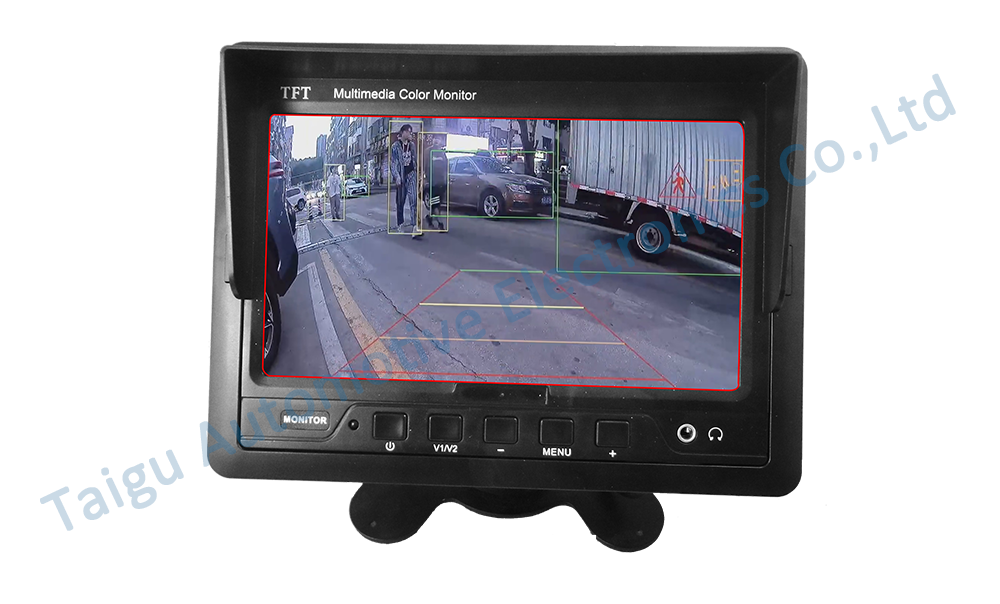

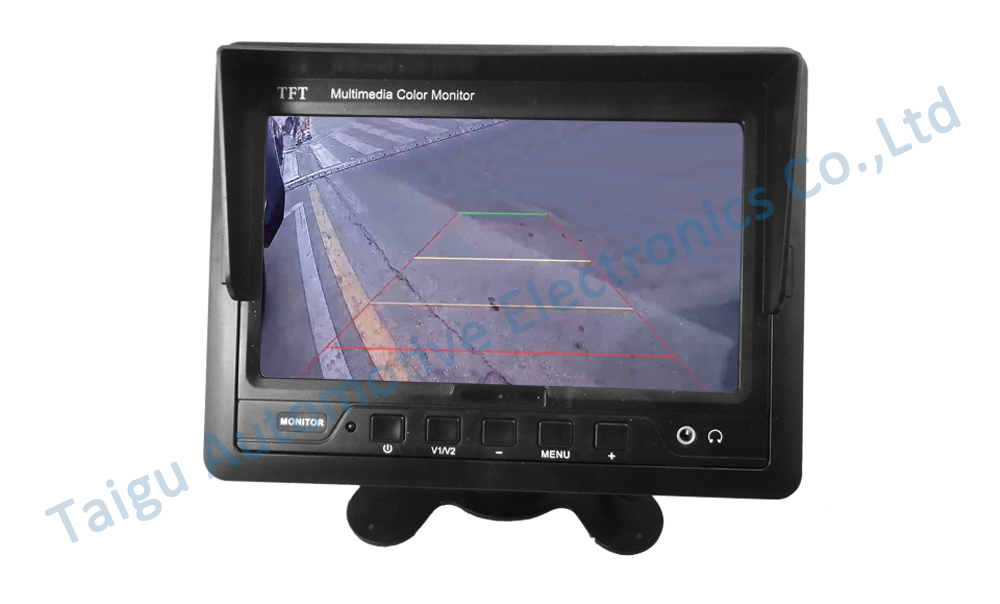

If the AI camera is aimed at the rear blind area, when a pedestrian or a car appears in the blind area, the border of the screen turns red, and the buzzer sounds a warning.

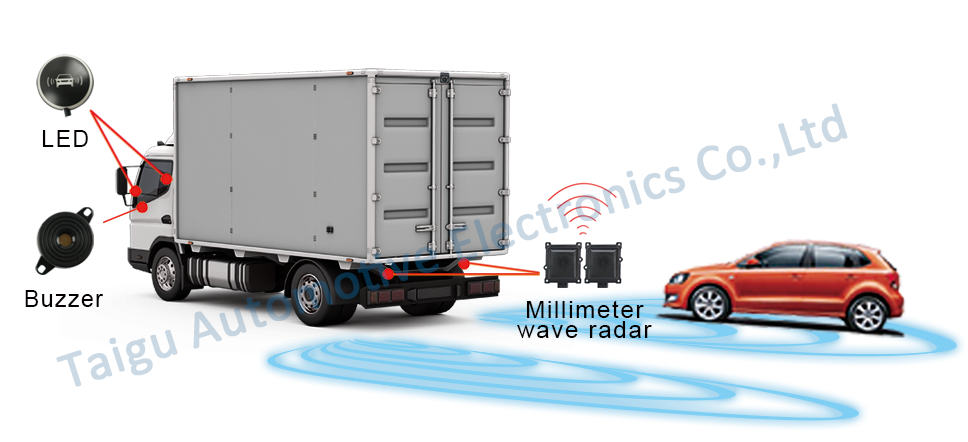

②Oncoming vehicle early warning and reminder
Millimeter-wave radar gives early warning to vehicles behind, and a buzzer sounds a warning sound when a vehicle is too close.
4. Installation position

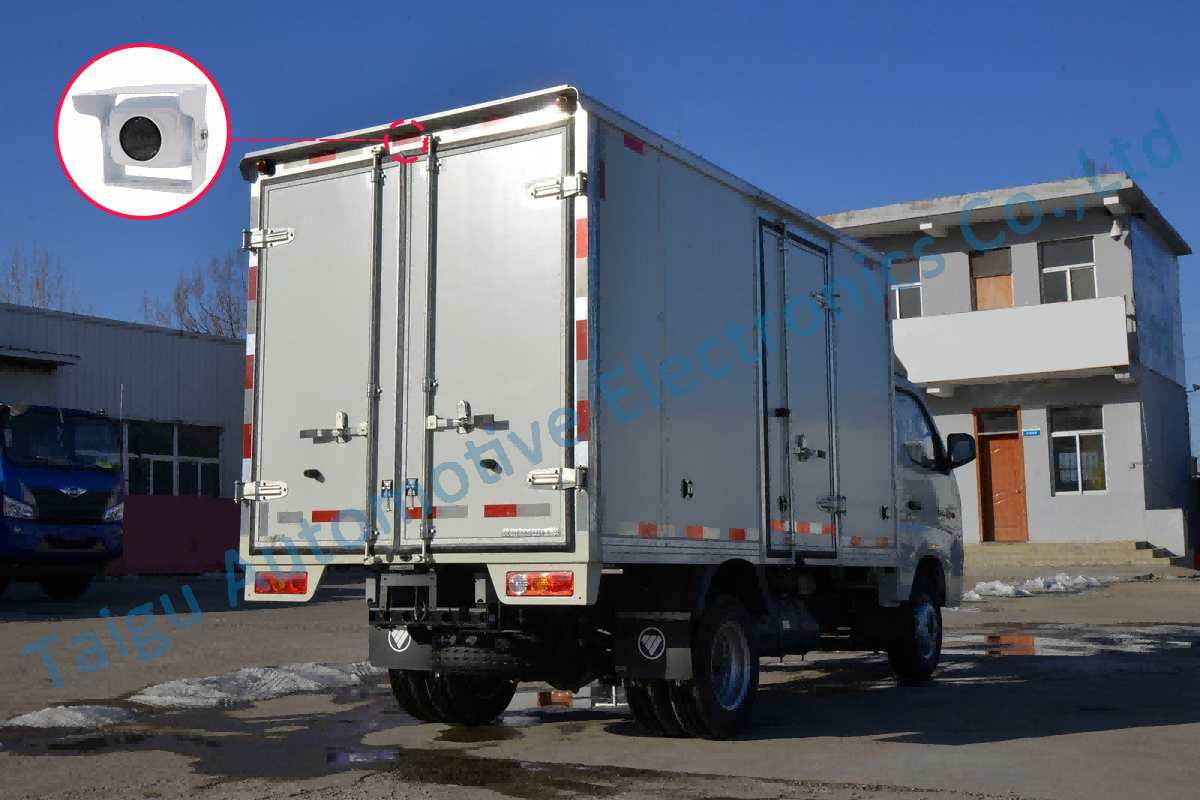

① The camera is installed on the rear side of the roof

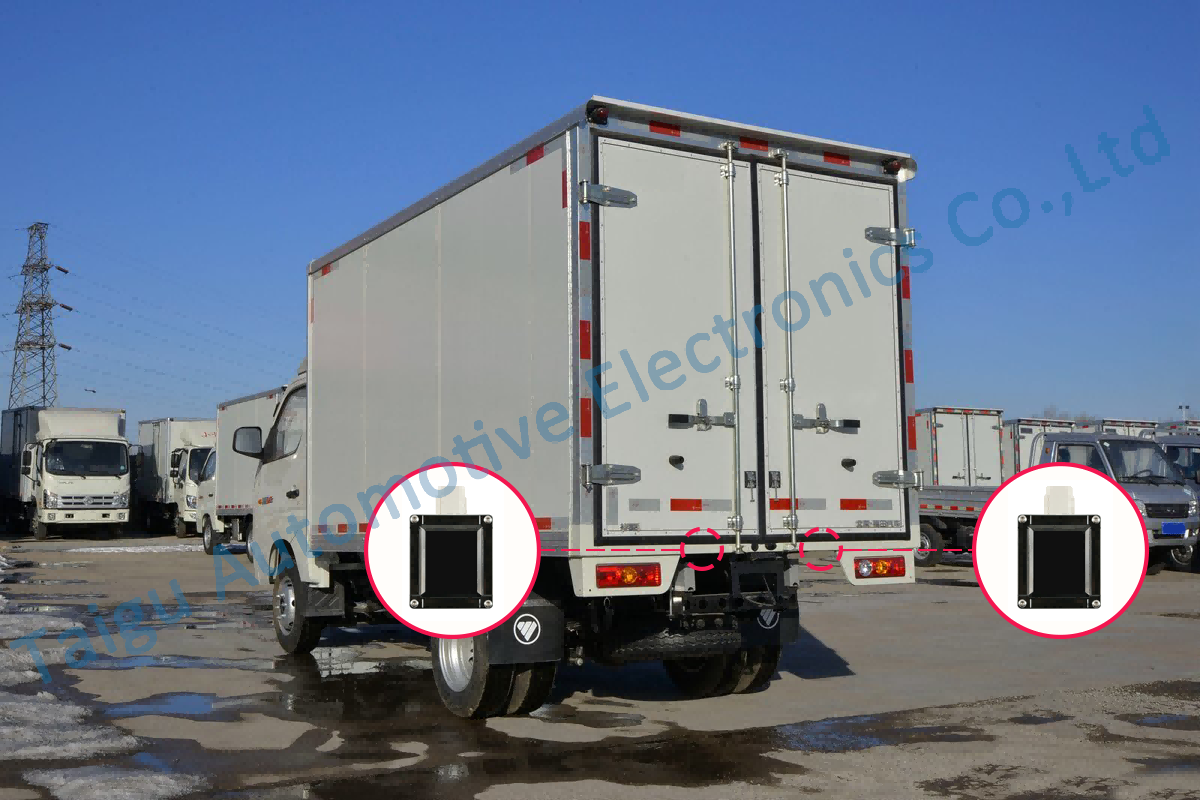

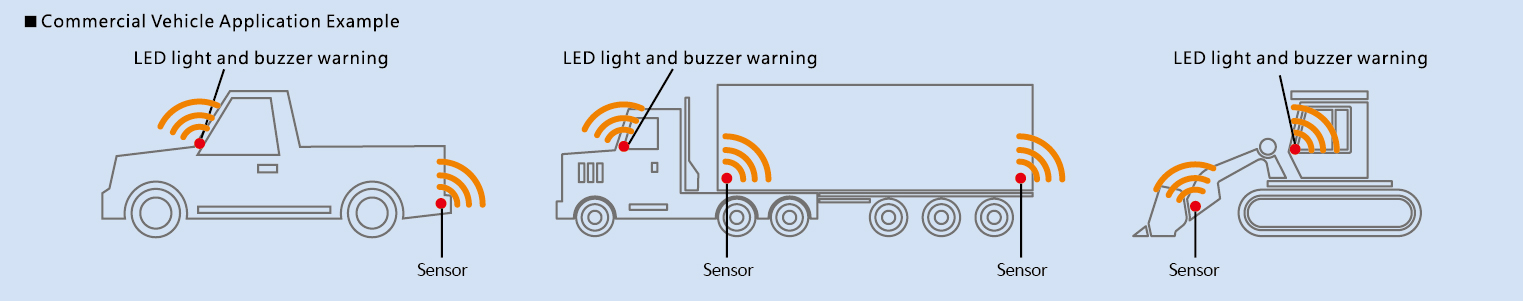

② The millimeter-wave radar is installed at the rear bumper of the car

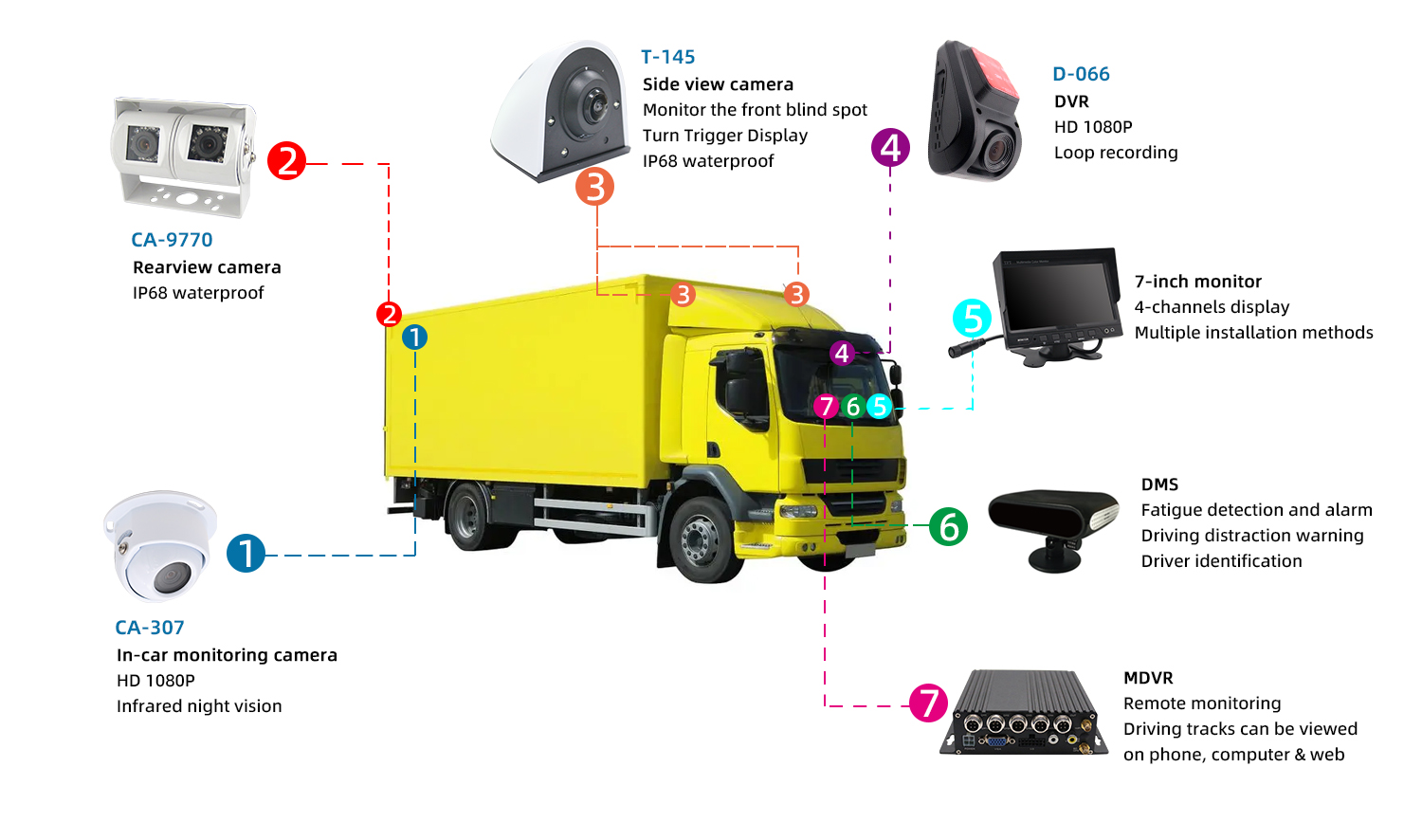

Dumper Truck Intelligent Driving System
This is a complete set of blind area monitoring system for logistics trucks, which integrates many driving assistance system solutions, including reversing camera, monitoring camera of inside cabin, right blind area monitoring system, and driver monitor system.
On this basis, the system has made additional upgrades:
①For the characteristics of large blind spot at the rear of logistics trucks, the reversing camera is upgraded to a dual-lens camera, so that the driver will clearer for the road conditions behind the vehicle;
②To meet the supervision needs of the fleet, the remote monitoring system is added, so that the driving conditions can be viewed anytime and anywhere.

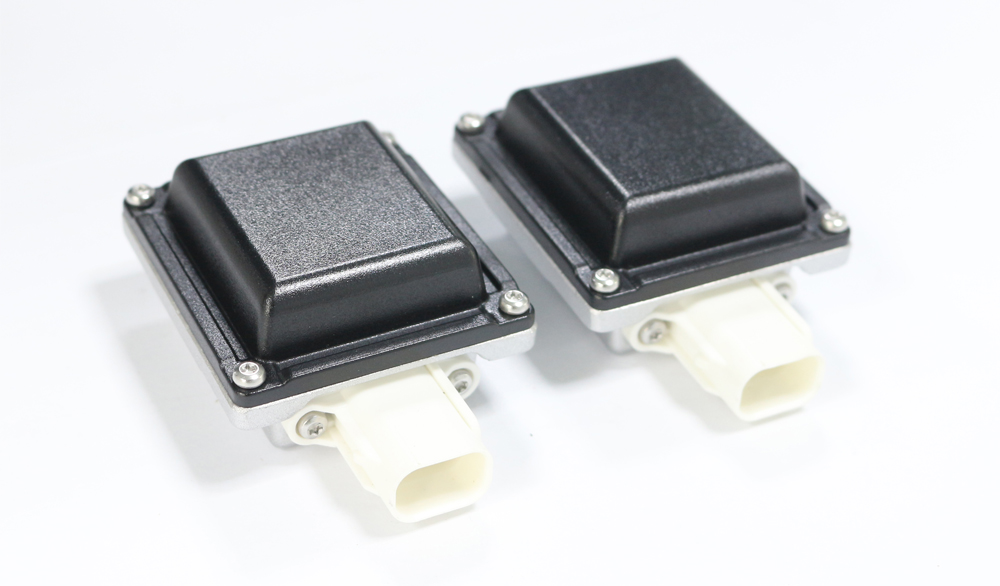

BSD Radar Warning System For Trucks
01 Specification
| Item | Parameter |
| Operating frequency | 77GHz |
| Detection range on both sidesof the body | 3m |
| Vehicle rear detection range | 80m |
| Horizontal angle | 120° |
| Update target rate | 33Hz |
| Detection range accuracy | 0.36m |
| Detection angle error ange | 1° |
| Detect the relative velocity error range | ±0.25 m/s |
| Operation voltage | 9V-16V |
| Power Consumption | ＜300mA(Single) |
| Operation Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+85℃ |
| IP Rating | IP 68 |
02 Function
Blind spot detection

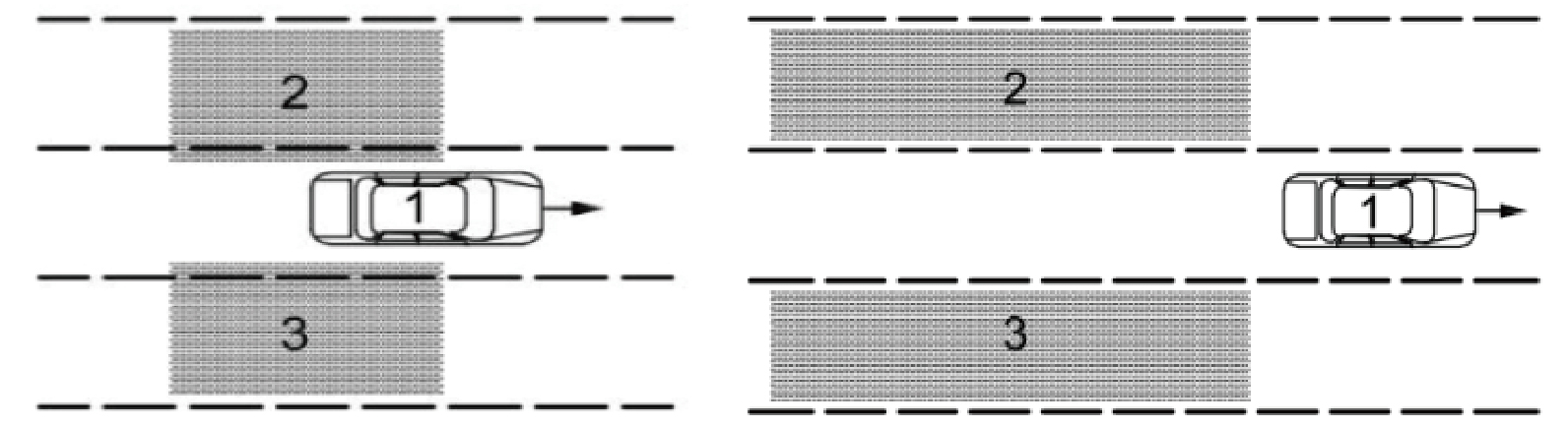

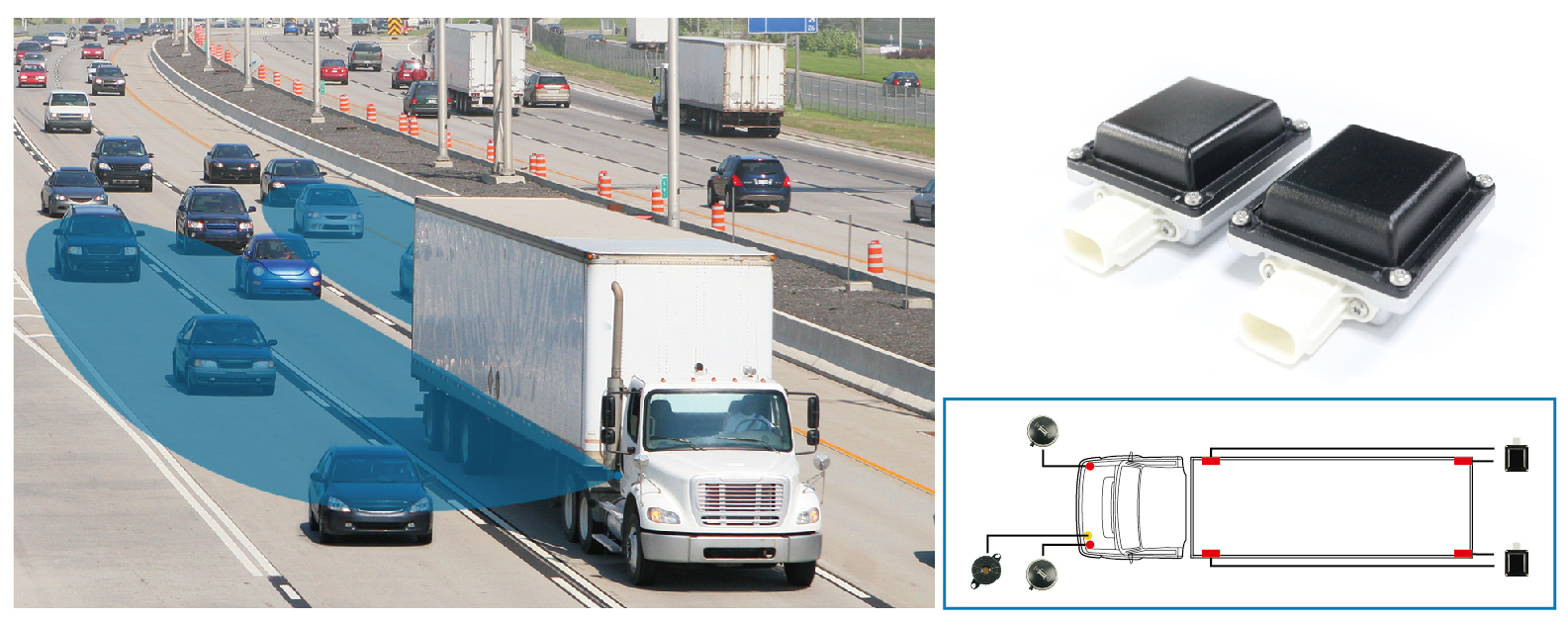

Note: As the below photo, the shadow parts will be the detection area. As the car driving the same direction with car 1, there is a car approaching in the part 2 or part 3, the system will have a sound or LED flash alert. (Blind area detection range is 3M of the backside of your car).
Lane change assistant
Note: As shown on the left, the areas 2&3 of the shadow parts are the lane changing function areas.If there are vehicles coming the same direction as the car 1 and getting closer to the car 1 in the area 2 or 3, the system will beep and the LED light will flash to give a warning. The farthest detectable distance is 15M behind the car.
03 Feature
1. 77G HZ high performance microwave sensor
2. Open door early warning function
3. LED light alarm, Sound alarm, Double security
4. All-day work, not affected by the weather
5. Detect 3*80m long distance and wide area behind the car
6. No need to pierce holes, does not affect the appearance of the car
