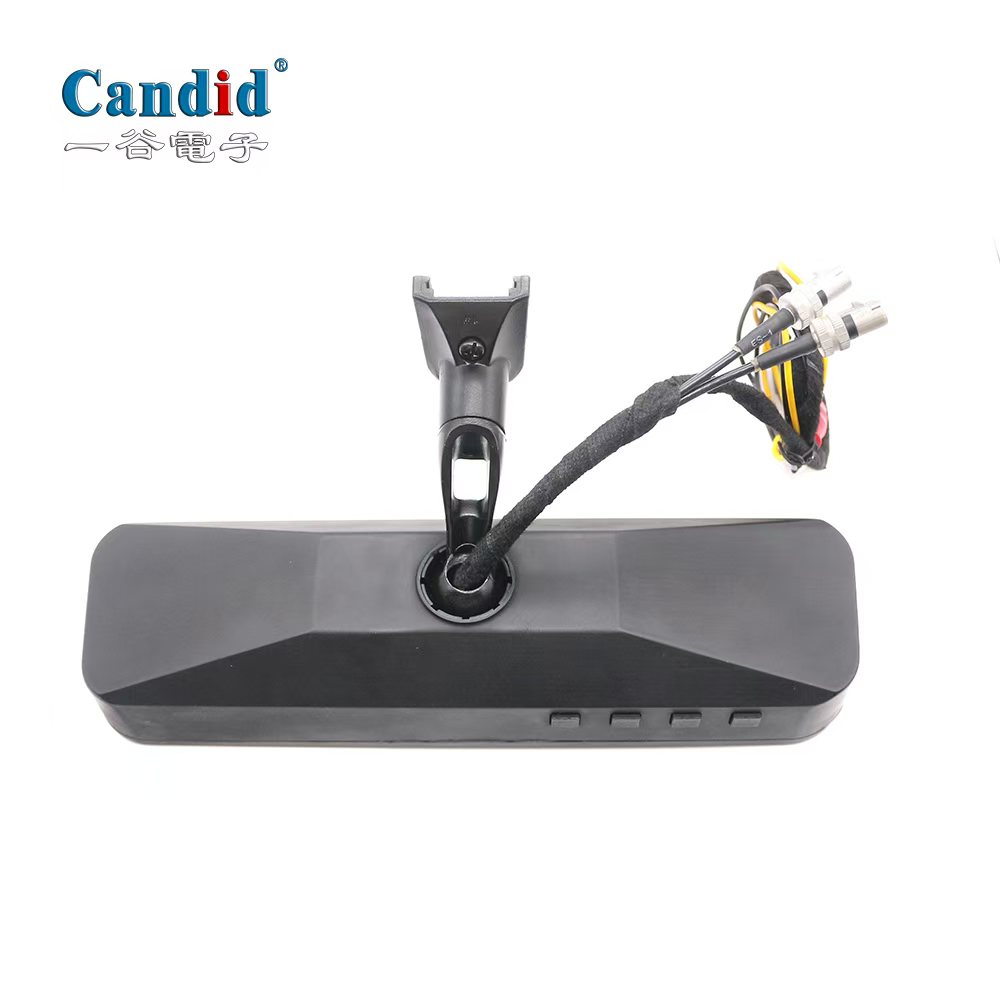

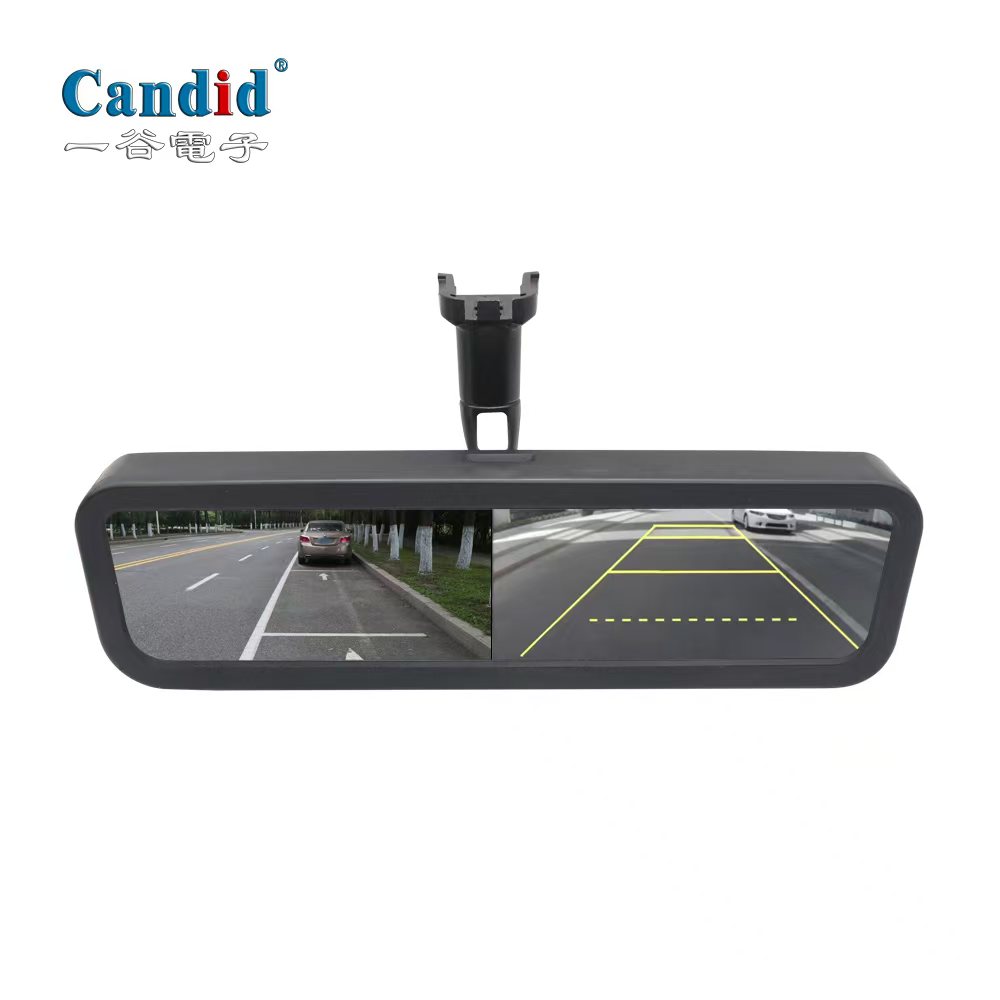

Automotive-grade streaming media rearview mirror

Affected by electromagnetic interference, traditional streaming media recorders are prone to high delays, blurred screens, and failure to light up. However, the automotive-grade streaming media rearview mirror uses LVDS signals and the wire adopts electromagnetic interference shielding technology, which greatly improves product stability.

Features

1.Monitor the road conditions behind the vehicle

2.Front driving record

3.Video playback

4.Mobile phone management video

5.Anti-glare interference

Specifications

HD Monitor

Item Parameter
Resolution 1920x384
Contrast 1000
Operating temperature -30~85
Operating voltage 12V
Operating current < 600mA
Standby current < 1mA
Startup time < 2S
Image delay < 40ms

Image field of view up

and down adjustment

support

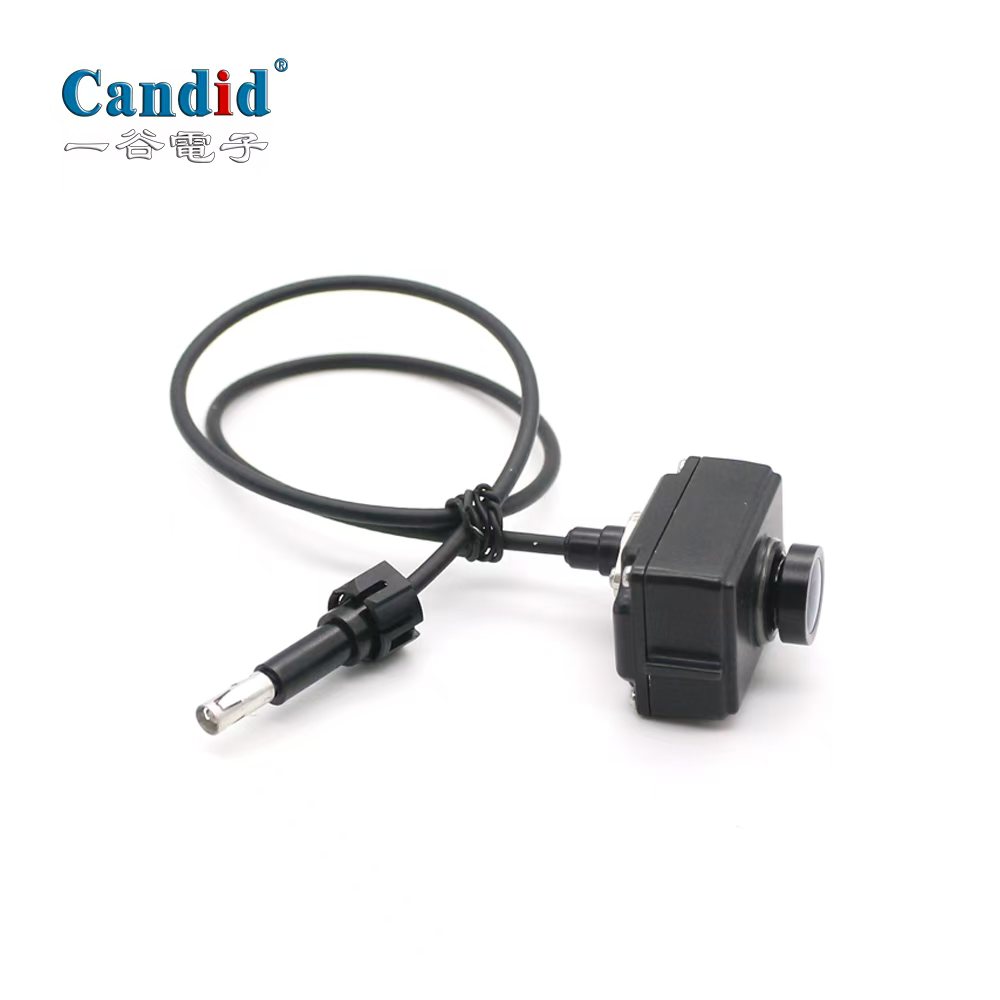

Camera

Item Parameter
Resolution 1920x1080P
FPS 60fps
H FOV 123±3°
V FOV 58±3°
FPS 60FPS
Clarity center Center>750 TV Line
0.7>550 TV Line
LFM support
Operating voltage DC12V



Applications

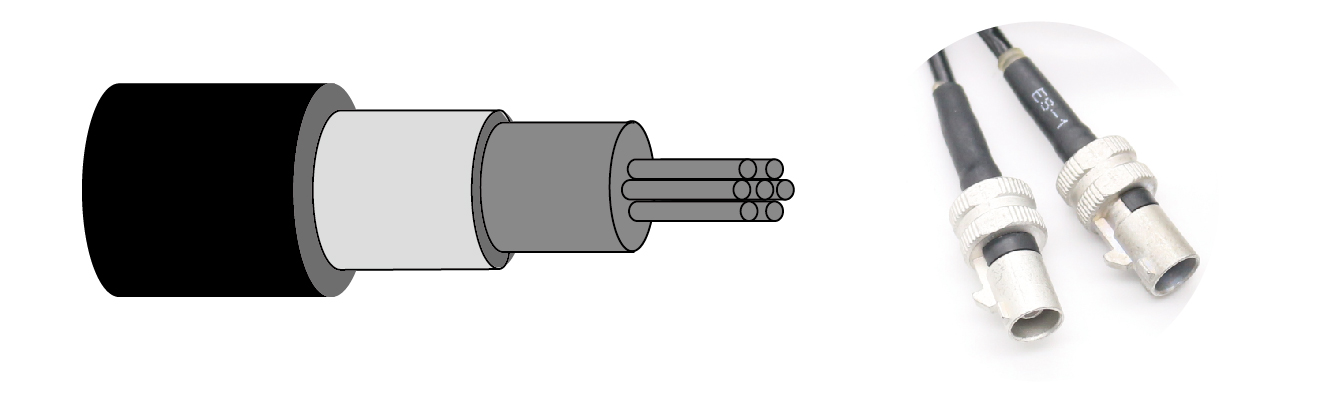

The wire uses a shielding layer to prevent electromagnetic interference.

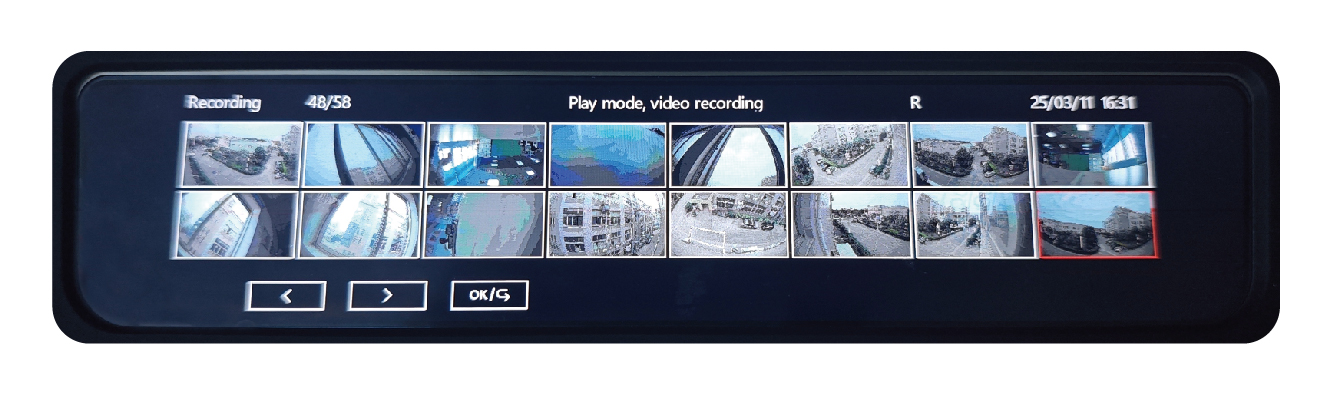

Recording playback function

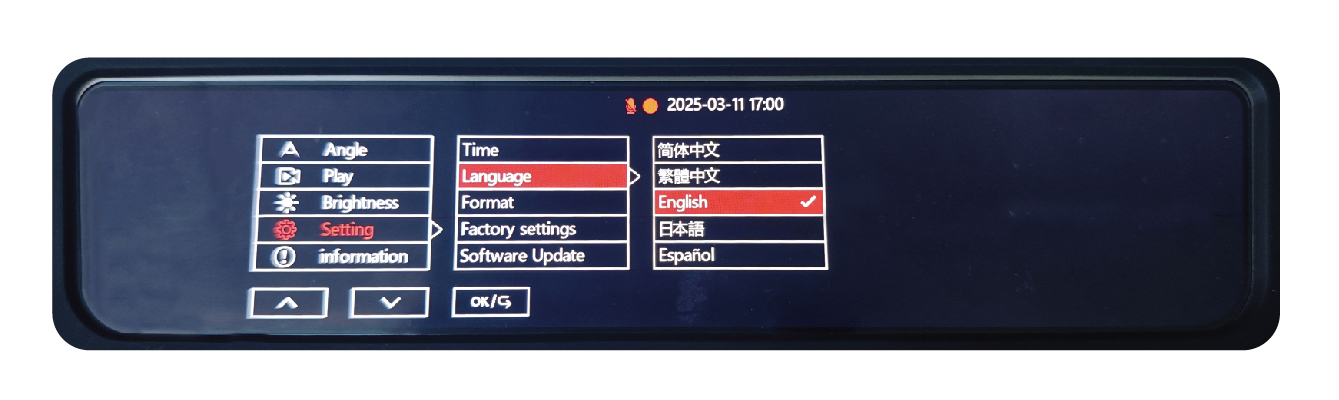

Support multiple languages
