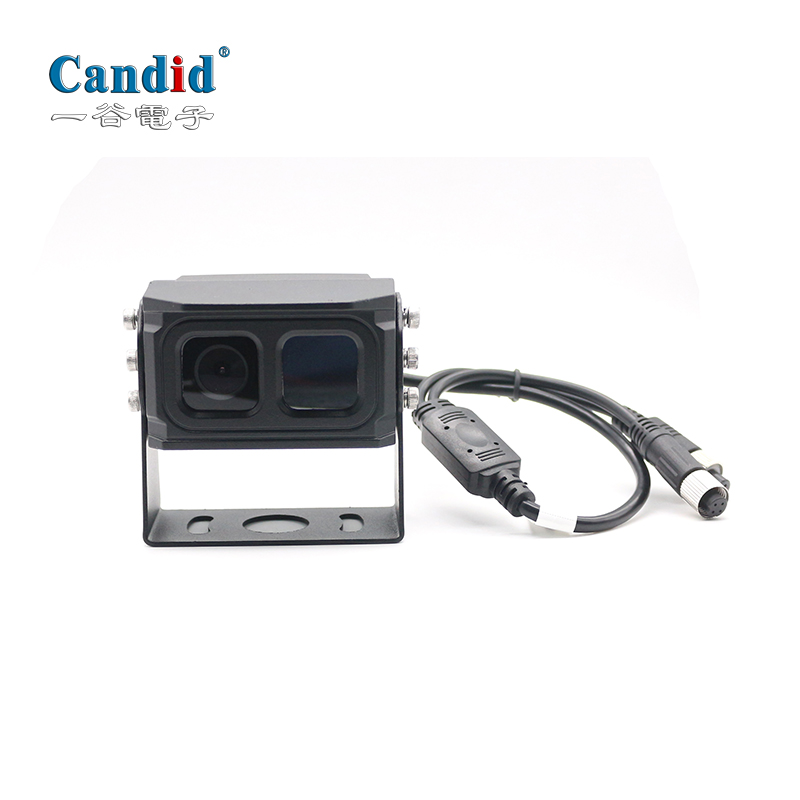

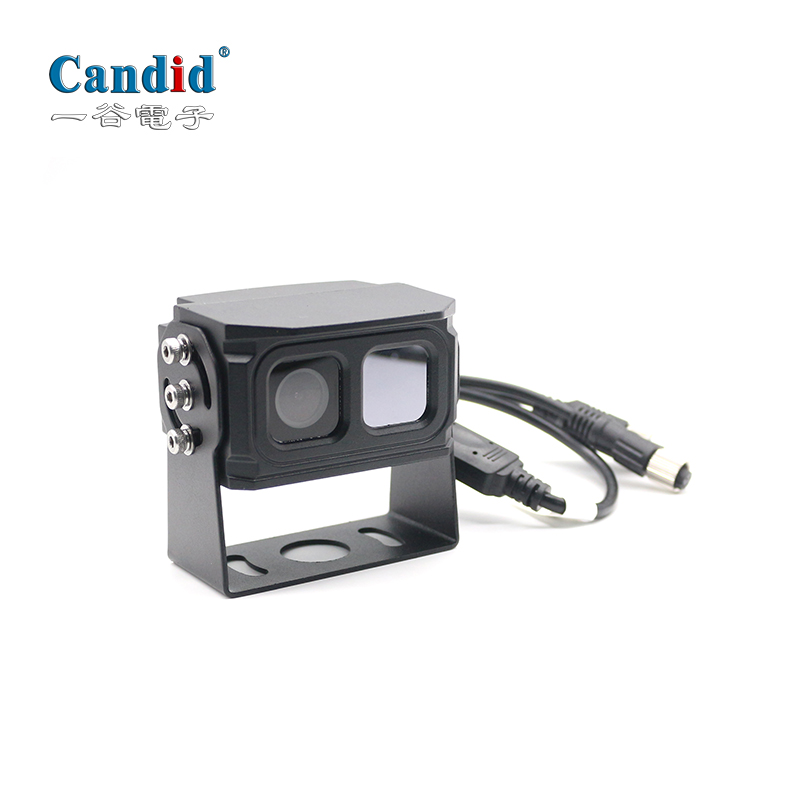

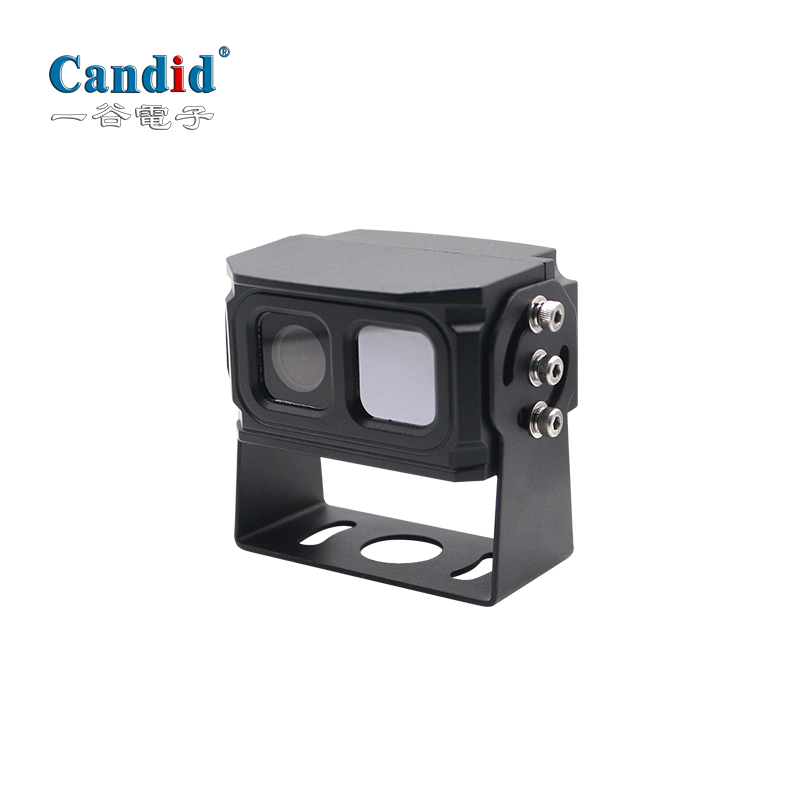

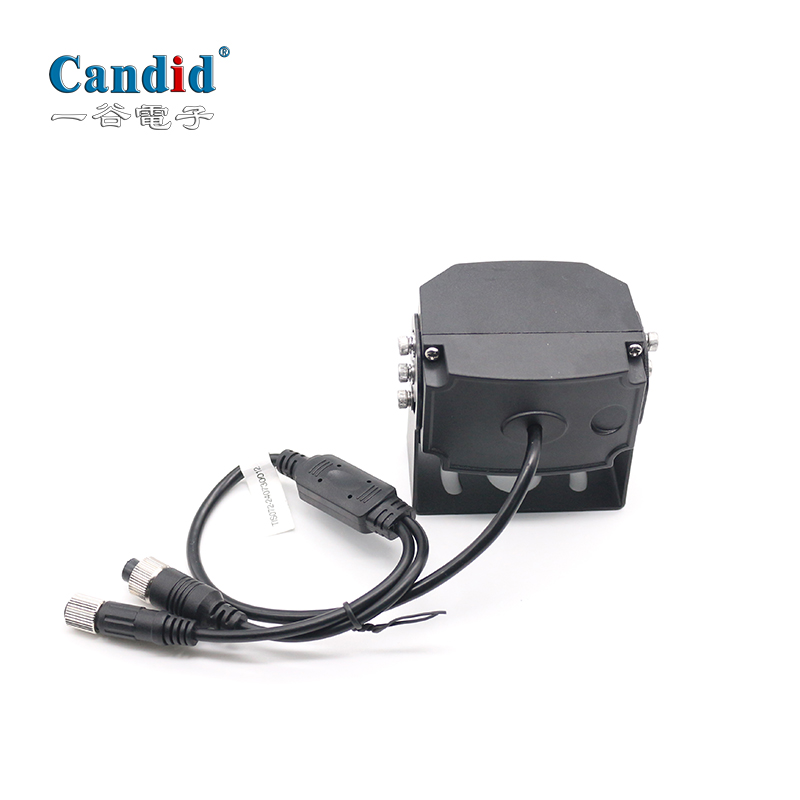

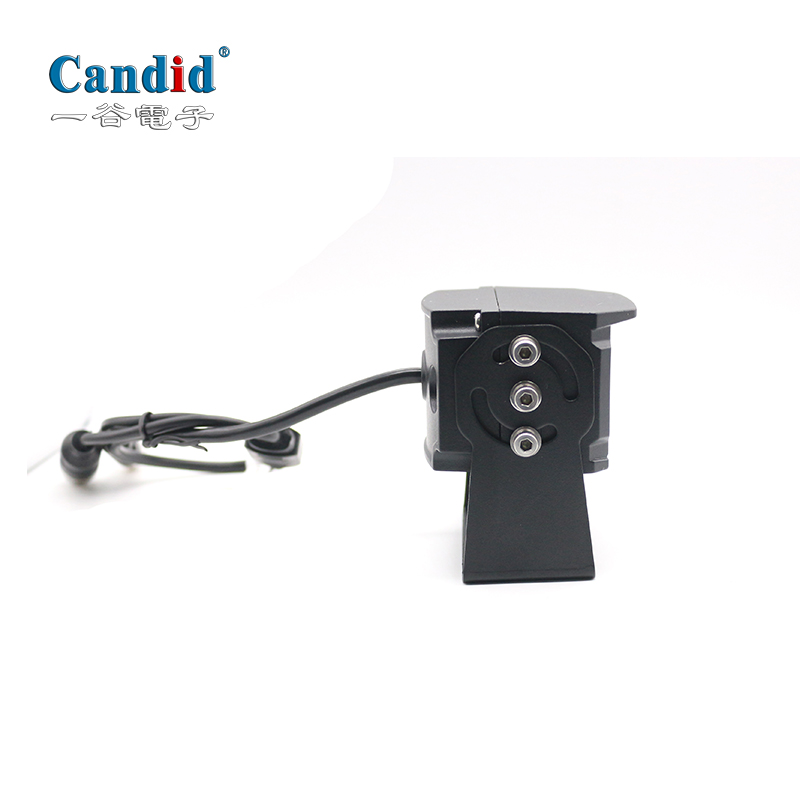

Infrared thermal dula lens AI camera
A good helper for comimercial vehicles to drive at night.
Features
1. 300 meters long range detection

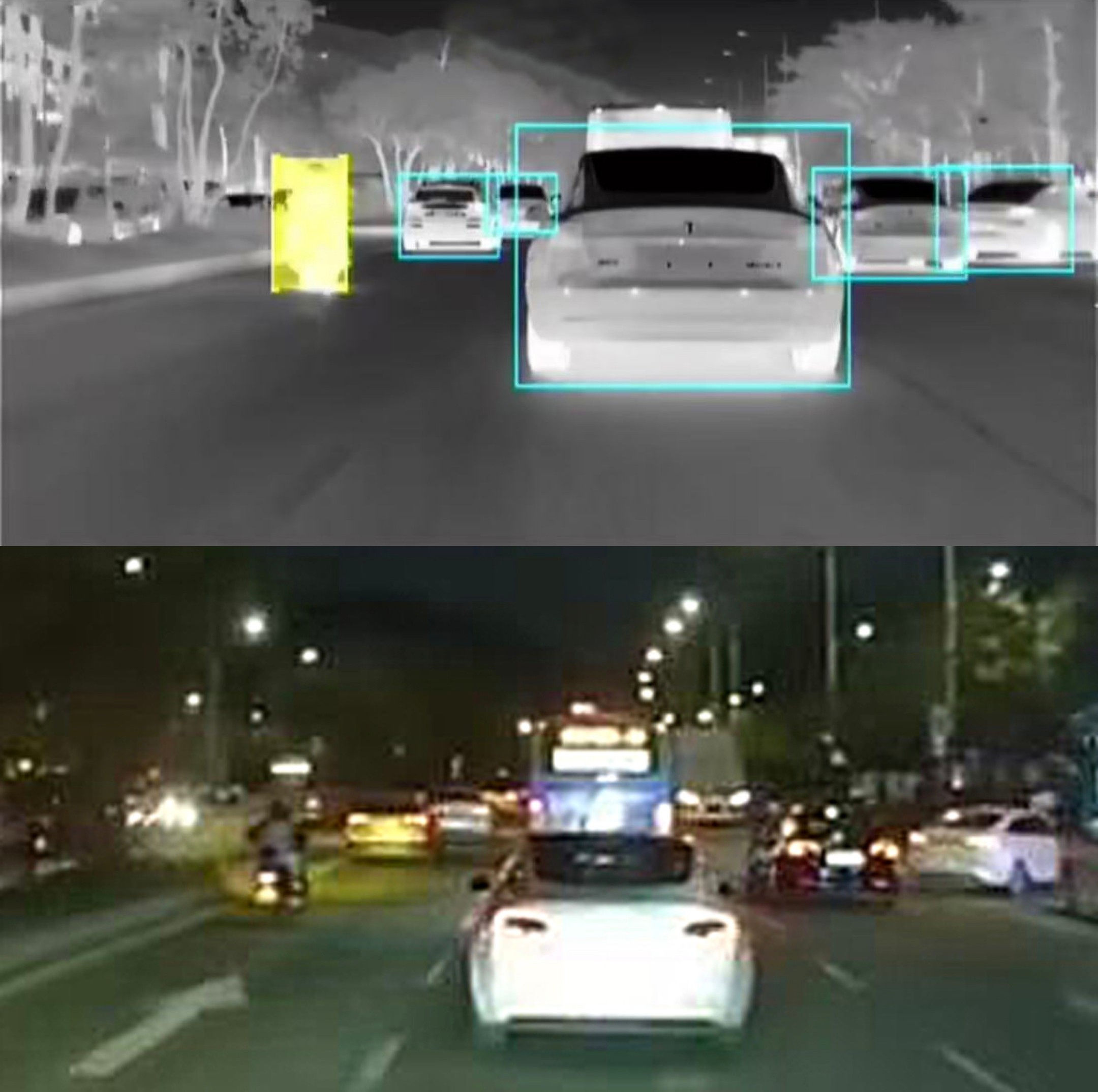

2.Thermal imaging and visible light fusion technology
3.Wide-angle 110 degrees
4.AI human-vehicle recognition
Specifications
| TV Mode | PAL/NTSC |
| Signal | AHD |
| Resolution | 1080P |
| Detection distance | 300 meters |
| Operation voltage range | DC12V±10％ |
| Working current | ≤300mA@12V |
| Power Consumption | ≤3.5W@12V |
| UsefulPixels | 1920*1080 |
| Thermal imaging pixel spacing | @12μm WLP |
| Thermal imaging response band | 8~14μm |
| Thermal imaging detection lens | 7.0mm |
| Thermal imaging field of view angle | 29 degrees |
| Visible light field of view angle | 110 degrees |
| Waterproofing grade | IP69K |
| Operation Humidity | 20%~80% |
| Operation Temperature | -30℃～+70℃ |
| Storage Temperature | -30℃～+85℃ |
| Special functions 1 | Thermal imaging and visible light fusion technology |
| Special functions 2 | AI human-cehicle recognition |
Applications
