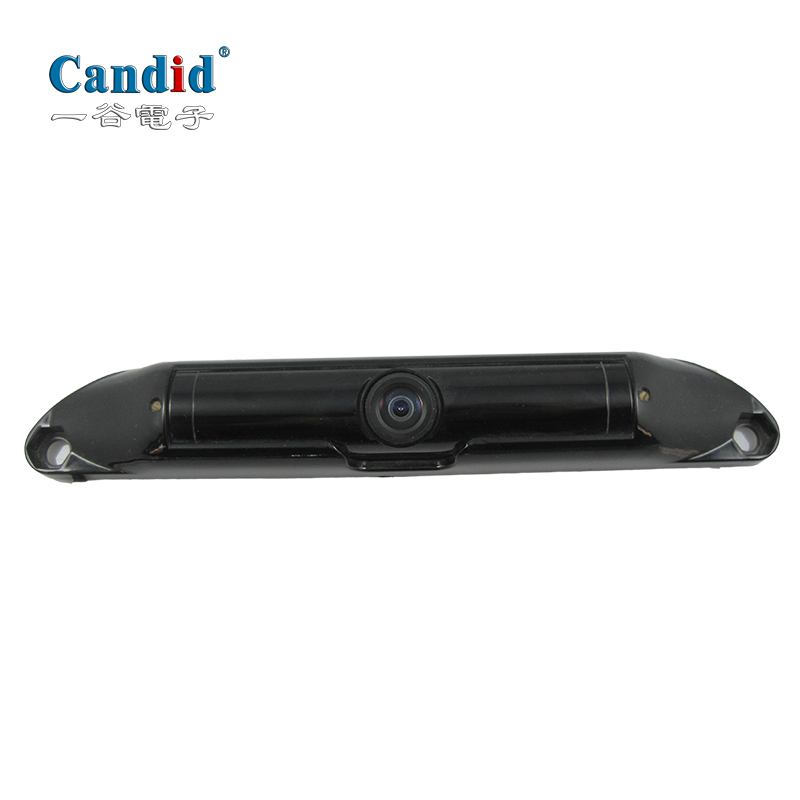

License Plate Frame CCD Cameras CA-350

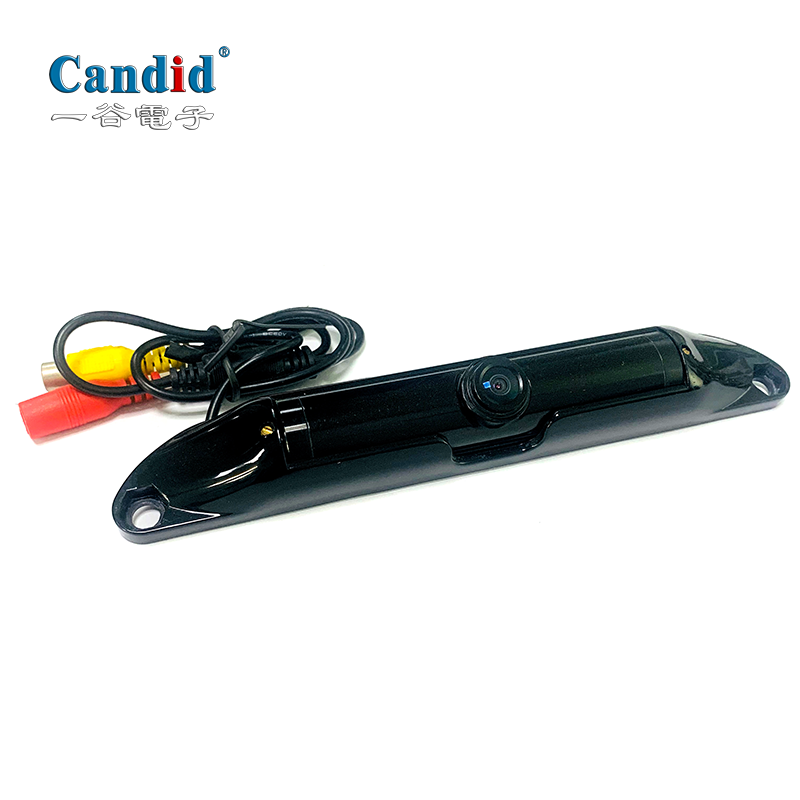

Suitable for commercial vehicle.
Features
1.Sharp CCD

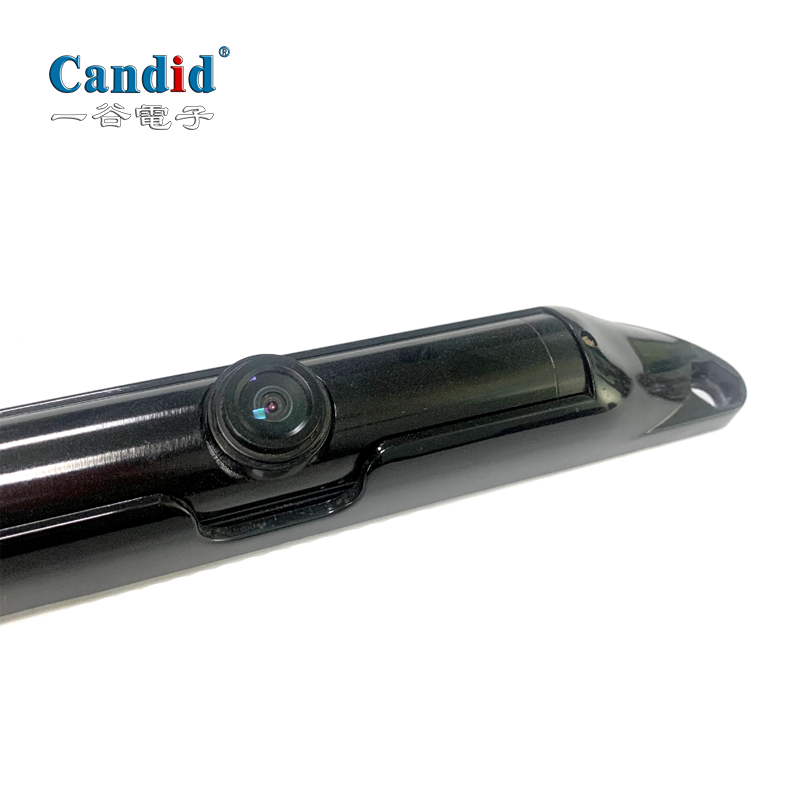

2. 170 degree viewing range

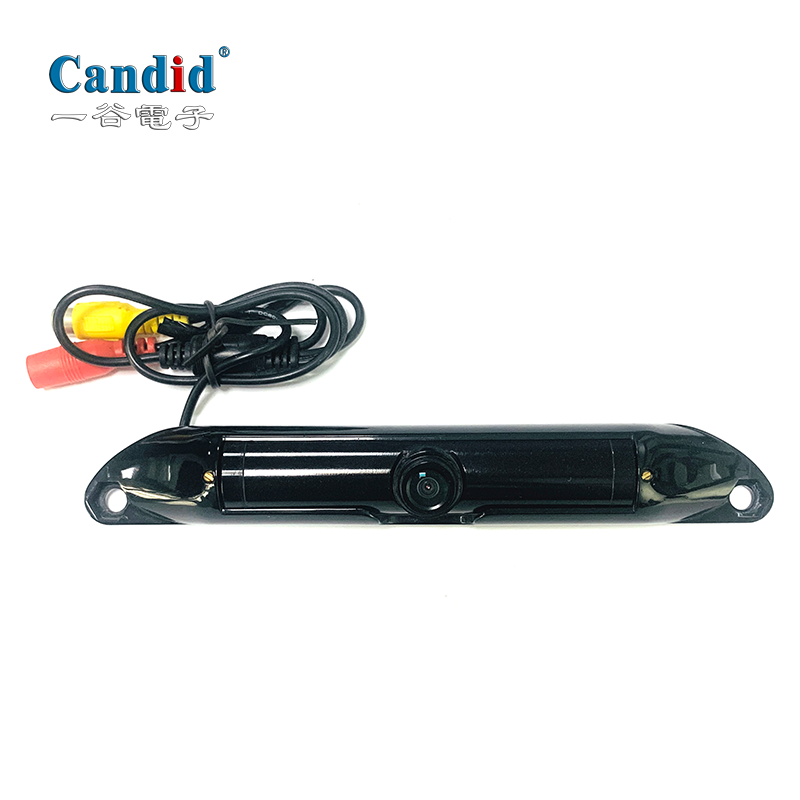

3.Fixed above the license plate
4.Do not cover the license plate
5.IP68 waterproof
Specifications
| Signal | CVBS (CCD sensor) |
| TV Mode | NTSC/PAL |
|
Image Sensor |
1/4 inch or 1/3 inch |
|
Operation voltage range |
DC12V(11-16V) |
|
Working current |
65mA±10mA |
|
Power Consumption |
0.78W@ DC12 V |
|
Video Output |
1±0.2 Vpp 75Ω |
| Pixsls | NTSC 811*507 / PAL 795*595 |
|
UsefulPixels |
NTSC 768*494 / PAL 752*582 |
| Angle | 170 |
|
Minimum lllomination |
0.3Lux |
| WDR | 80dB |
| Signal to Noise ratio | 51dB |
| Gamma value | 0.45 |
| Shutter Speed | Auto |
| White Balance | Auto |
| AGC | Auto |
|
Waterproofing grade |
IP68 |
|
Operation Humidity |
85 RH% |
|
Operation Temperature |
-20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
