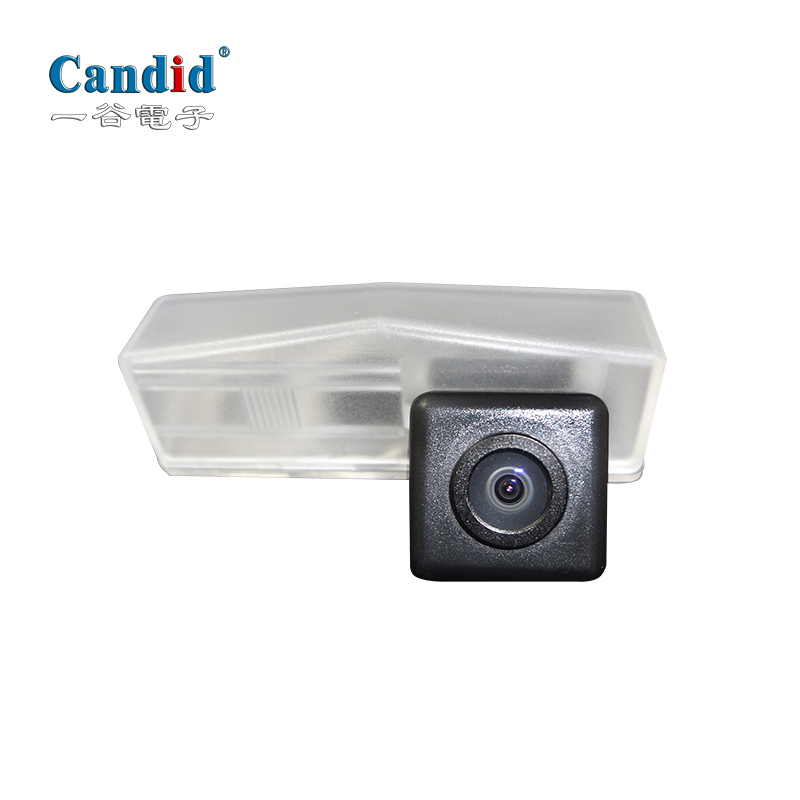

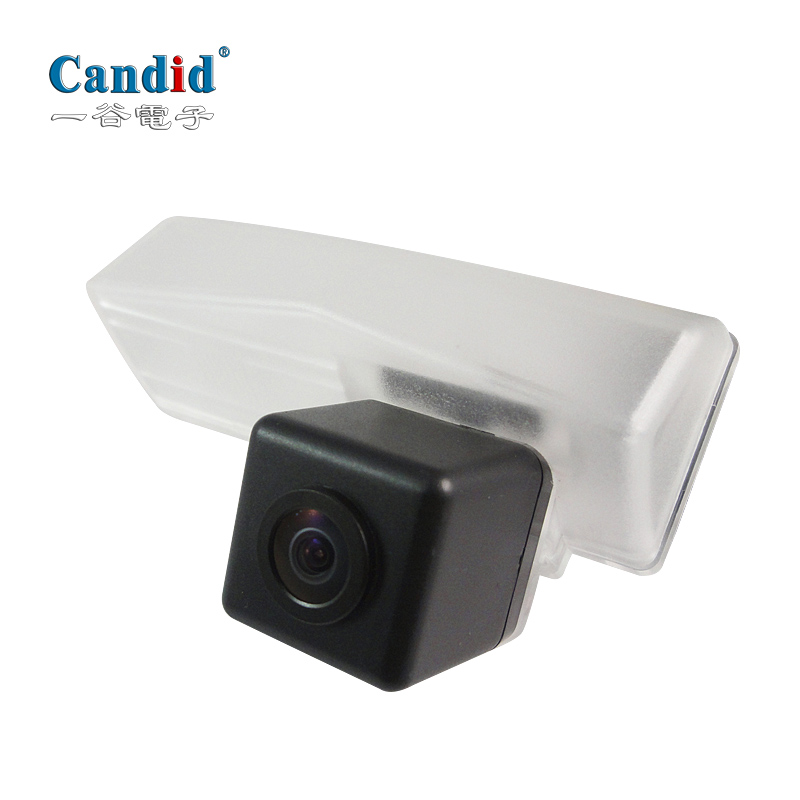

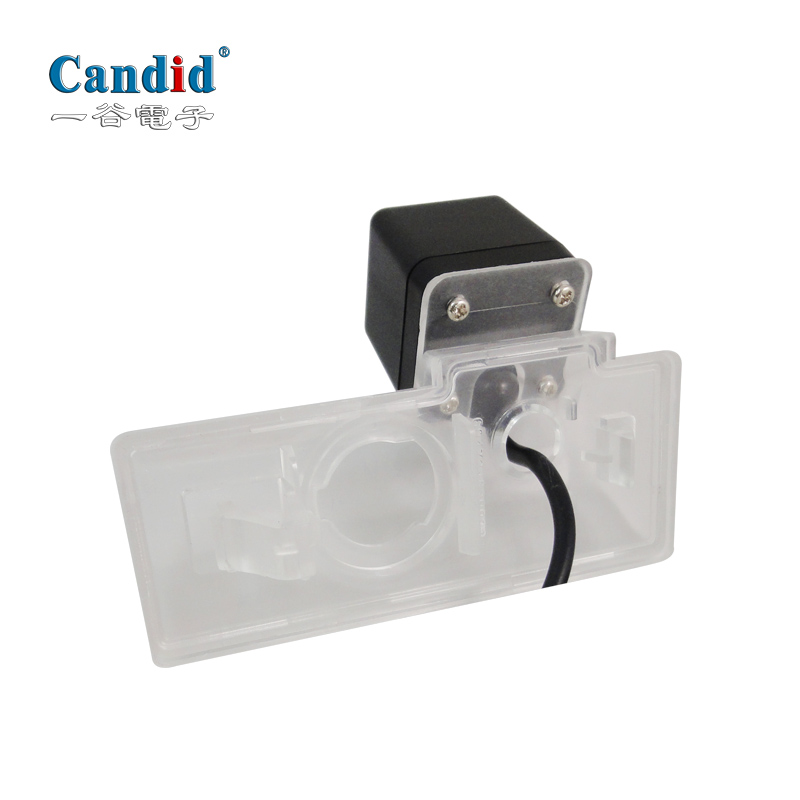

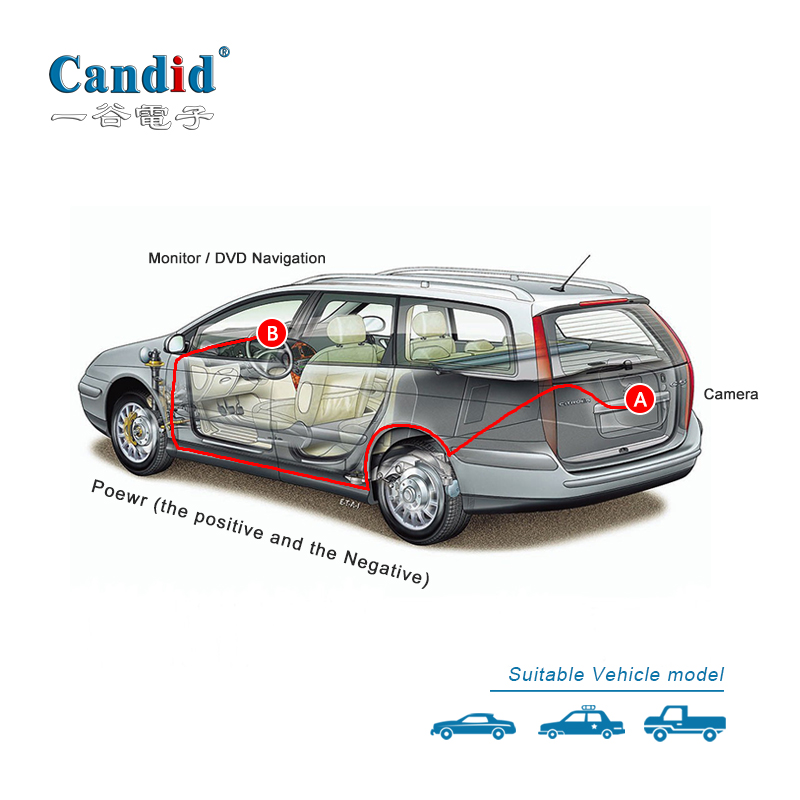

OEM customized backup camera for Toyota RAV4
High definition waterproof backup specical cameras for Toyota RAV4
Features
1.The housing is specical design for Toyota RAV4, perfect match .
2.High definition image sensor.
3.View angle 170°, wider visual angle ,simple and easy to install .
4.Professional Perfomance Auto parts supplier.

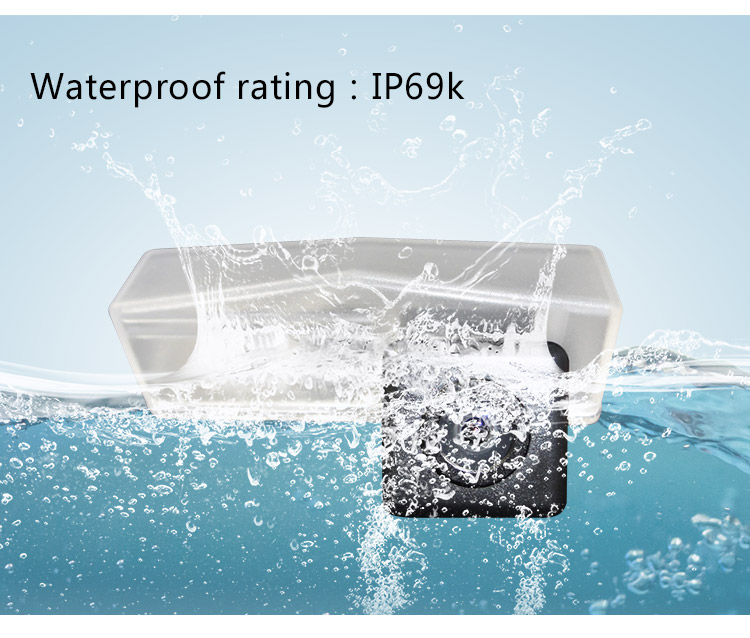

5.Waterproof design
2.High definition image sensor.
3.View angle 170°, wider visual angle ,simple and easy to install .
4.Professional Perfomance Auto parts supplier.
5.Waterproof design
Specifications
Replacement camera for Toyota RAV4. CCD camera provide the high definition camera image.
| Image sensor | Sharp CCD |
| TV Mode | PAL/NTSC |
| Image Sensor | 1/3 inch or 1/4inch |
| Operation voltage range | DC12V(10-16V) |
| working current | 65mA±10mA |
| Power Consumption | 0.78W@ DC12 V |
| USEFUL PIXELS | PAL 752*582/NTSC 768*494 |
| Minimum lllomination | 0.3Lux |
| Wide Dynamic | 80dB |
| Signal to Noise ratio | 51dB |
| resolution ratio | 430,000 Pixsls/ 370,000Pixsls |
| Gamma value | 0.45 |
| camera angle | Max 150 |
| waterproofing grade | IP67 |
| white balance | Auto |
| Backlight compensation | Auto |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
Applications
Accessories
