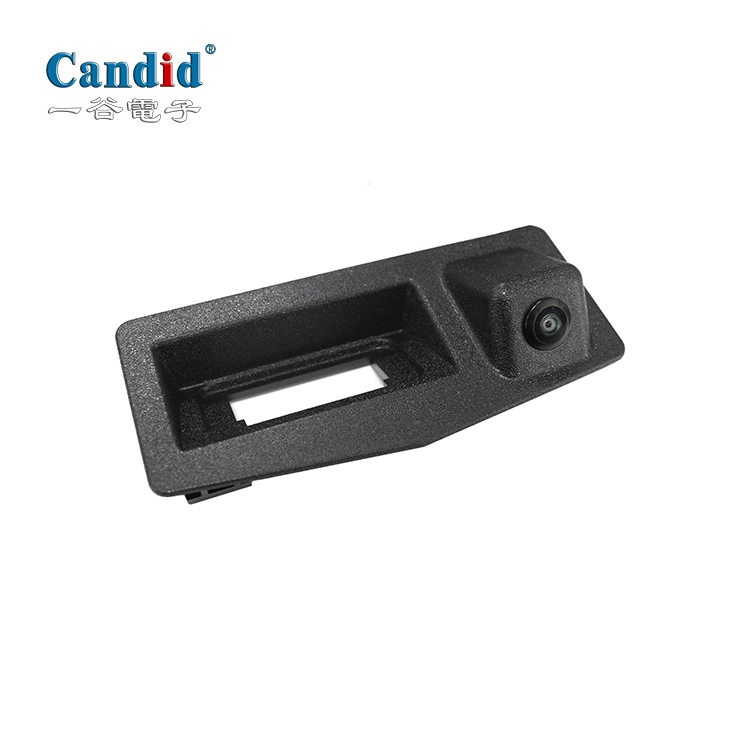

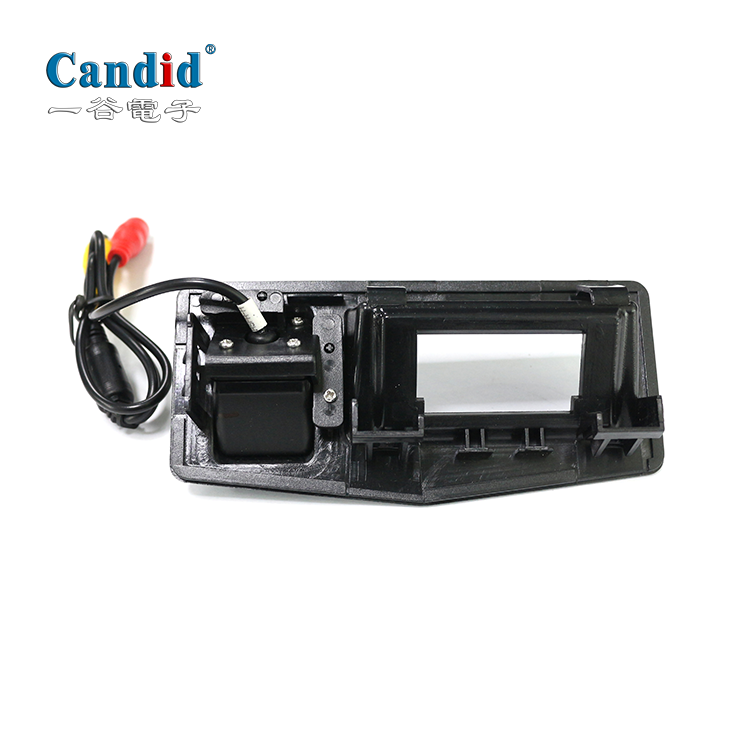

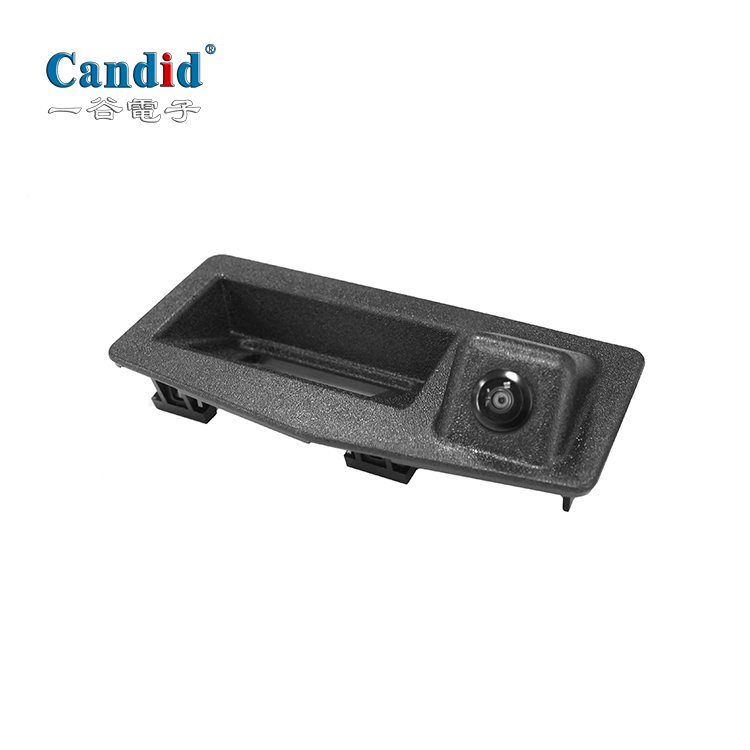

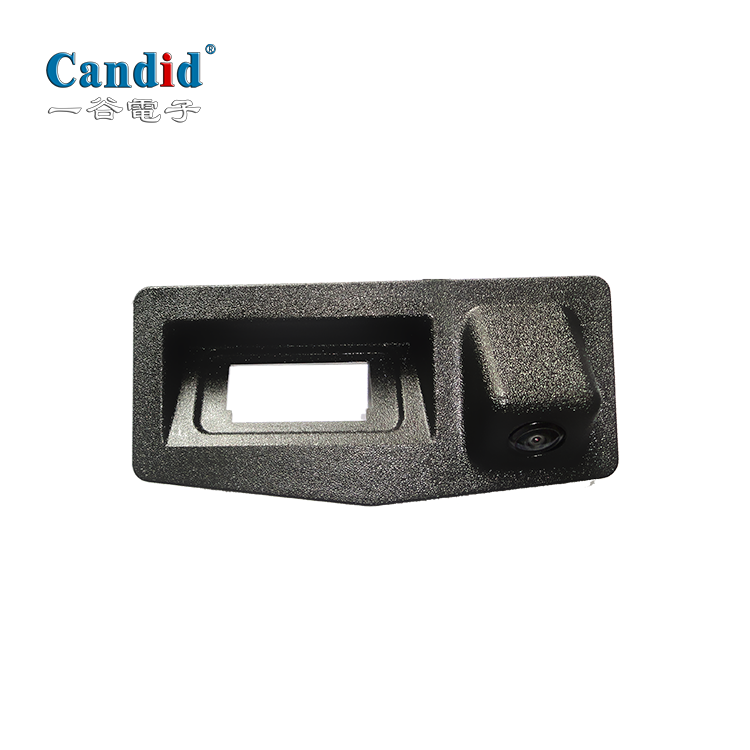

Tailgate-cameras for Cadillac ATS&XTS CA-711
Suitable for Cadillac ATS in 2014, XTS in 2013.
Features
1.Replacement camera for Cadillac ATS&XTS
2.HD 1080P
3. 170 degree viewing range
Specifications
| Signal | AHD |
| TV Mode | NTSC/PAL |
|
Image Sensor |
1/2.9 inch |
|
Operation voltage range |
DC12V(6-16V) |
|
Working current |
TBD |
|
Power Consumption |
TBD |
|
Video Output |
1±0.2 Vpp 75Ω |
| Pixsls | 1928*1088 |
|
UsefulPixels |
1920*1080 |
|
Minimum lllomination |
TBD |
| WDR | 68.1dB |
| Signal to Noise ratio | 43.2dB |
| Gamma value | 0.45 |
| Shutter Speed | Auto |
| White Balance | Auto |
| AGC | Auto |
|
Waterproofing grade |
IP68 |
|
Operation Humidity |
85 RH% |
|
Operation Temperature |
-20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
