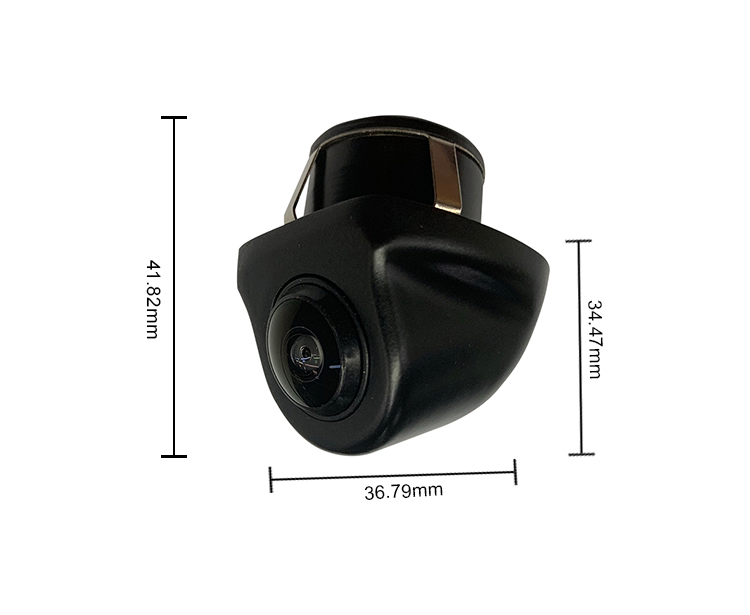

Universal Mini Camera for Passenger Vehicle T-173
Suitable for passenger vehicle.
Features

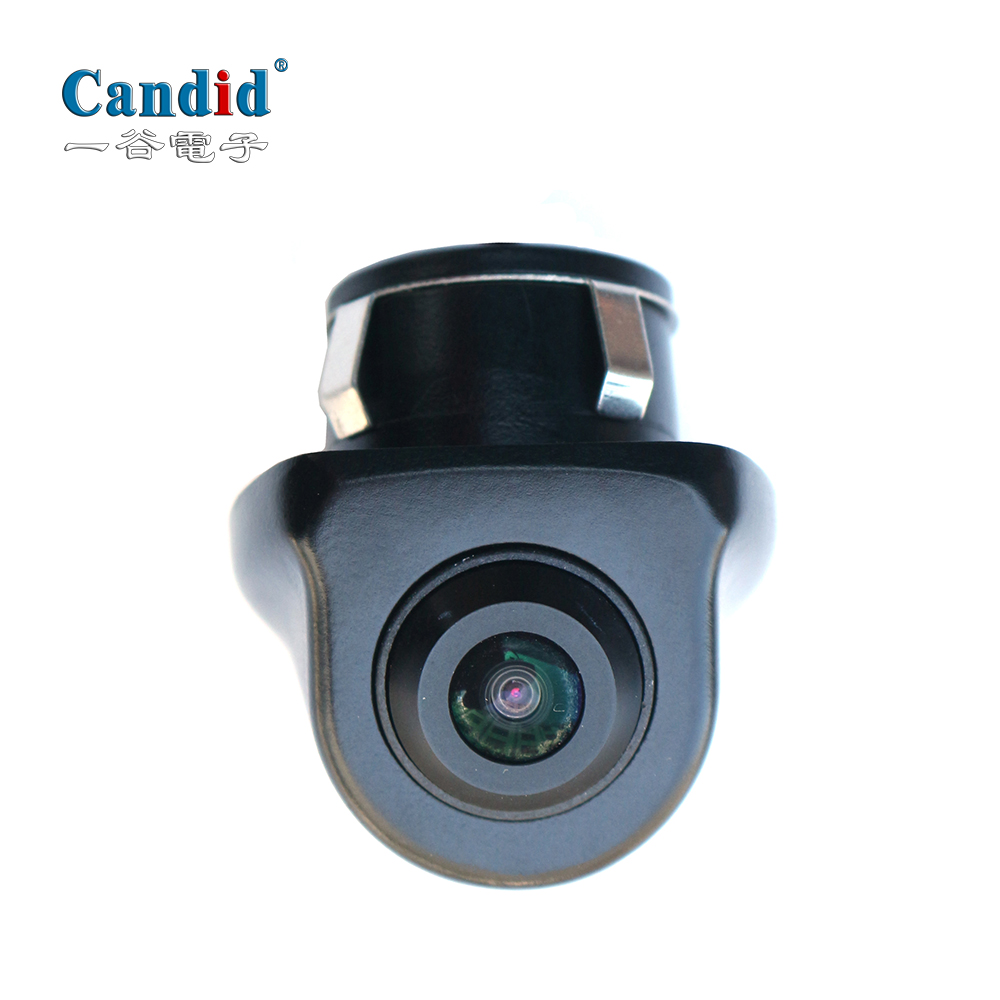

1.Install with drilling holes
2.Ultra-wide angle 140 degrees

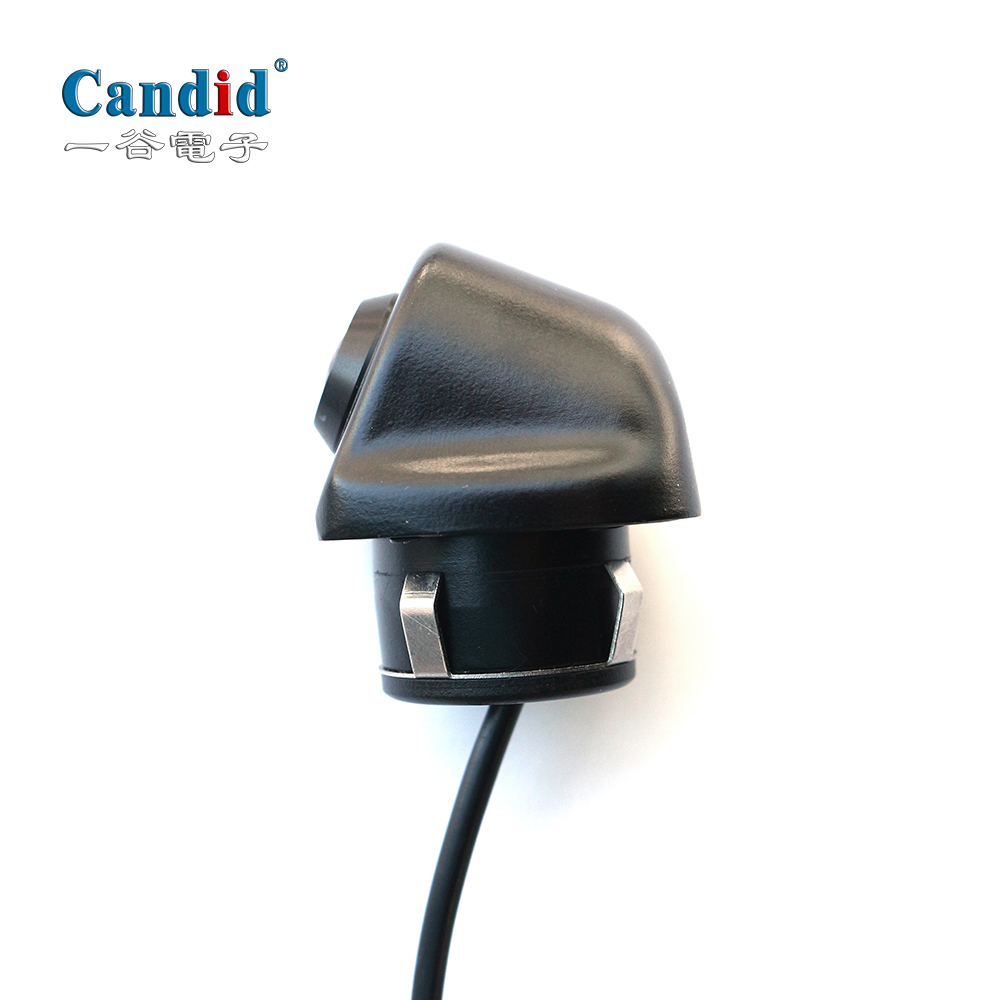

3.IP68 waterproof
Specifications
| Signal | CVBS |
| TV Mode | NTSC/PAL |
|
Image Sensor |
1/4 inch |
|
Operation voltage range |
DC12V(6-16V) |
|
Working current |
25mA±10mA |
|
Power Consumption |
0.3W@ DC12 V |
|
Video Output |
1±0.2 Vpp 75Ω |
| Pixsls | 688*528 |
|
UsefulPixels |
640*480 |
| Angle | 140 |
|
Minimum lllomination |
TBD |
| WDR | 65dB |
| Signal to Noise ratio | 48.7dB |
| Gamma value | TBD |
| Shutter Speed | Auto |
| White Balance | Auto |
| AGC | Auto |
|
Waterproofing grade |
IP68 |
|
Operation Humidity |
85 RH% |
|
Operation Temperature |
-20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
