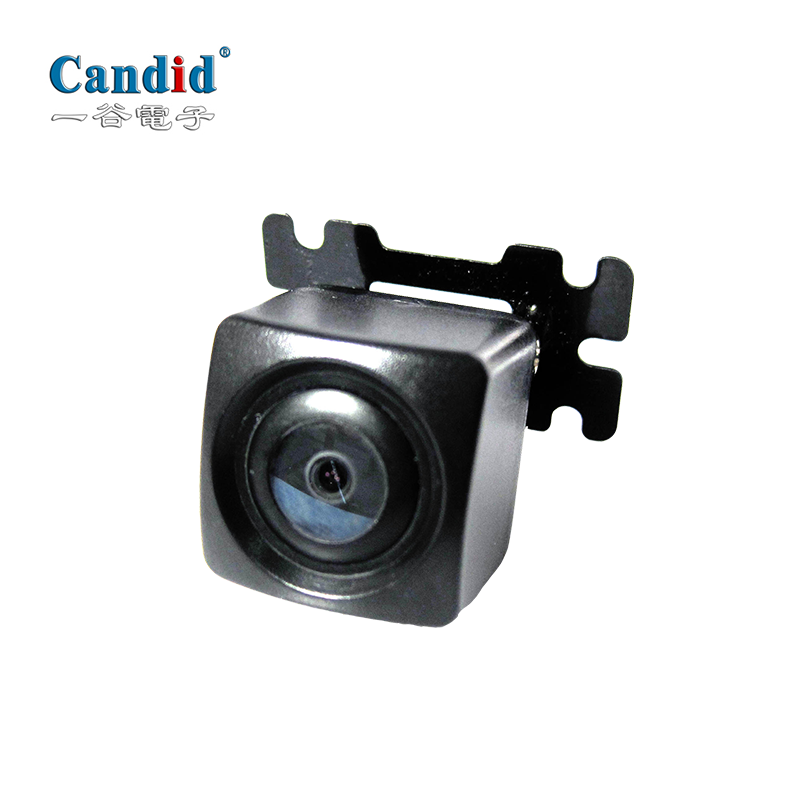

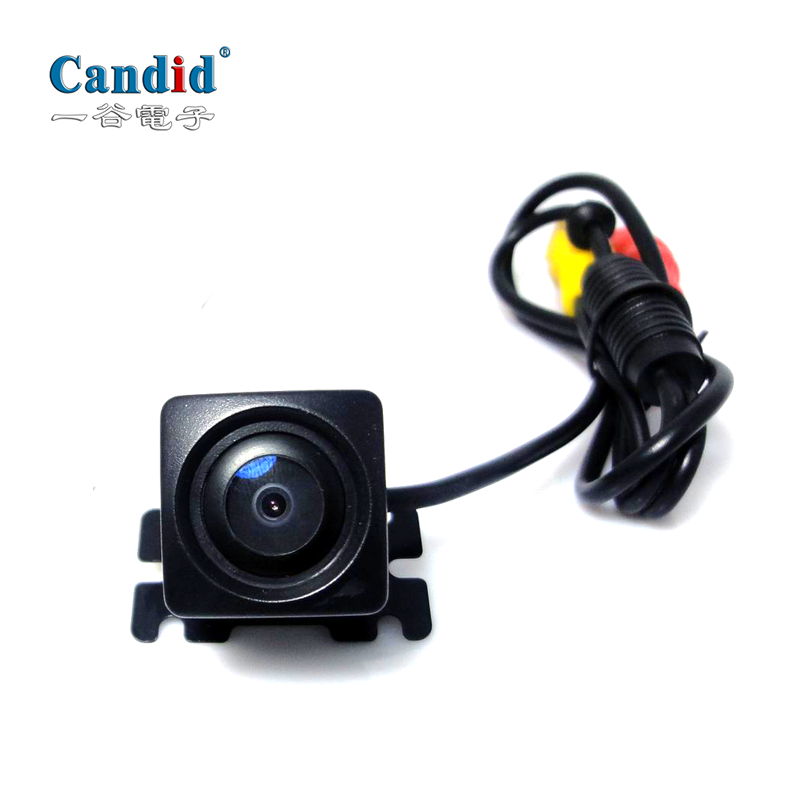

Universal Rearview Camera for Passenger Vehicle CA-207
Suitable for passenger vehicle.
Features
1.Suitable for passenger vehicle.
2.HD 1080P

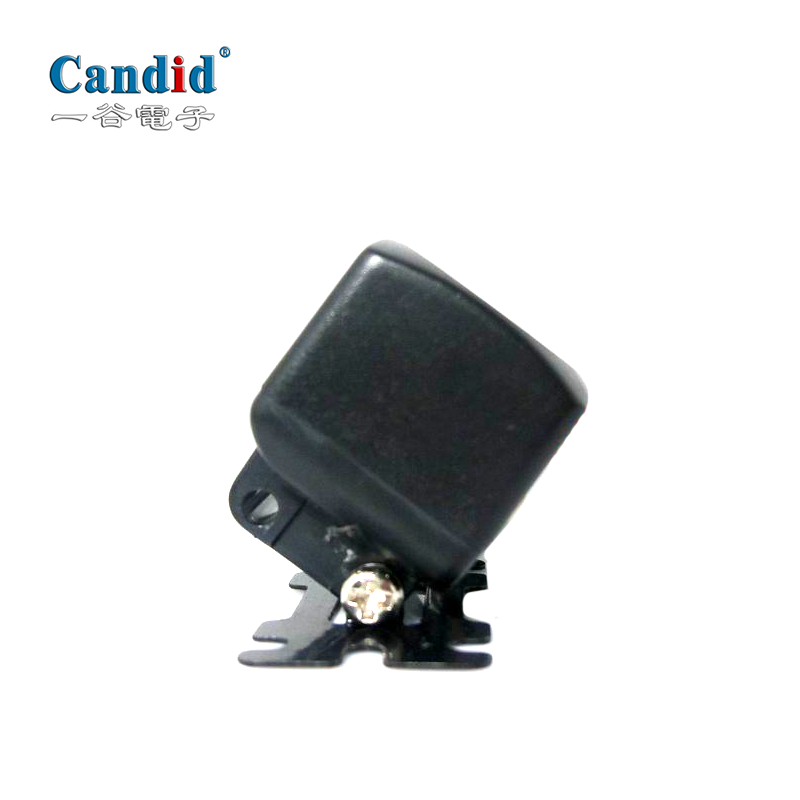

3.Wide angle 120 degrees

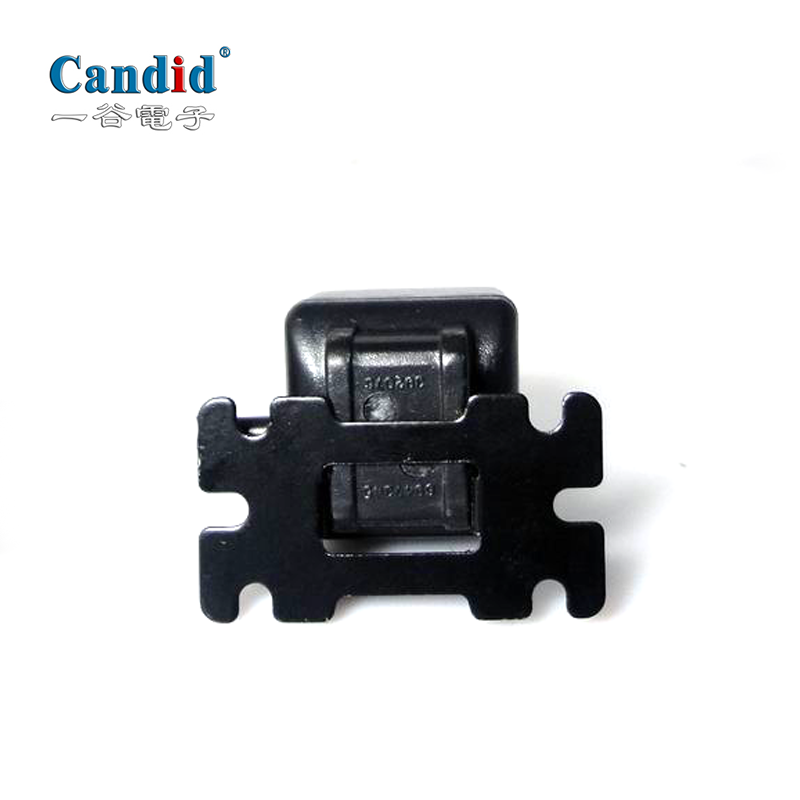

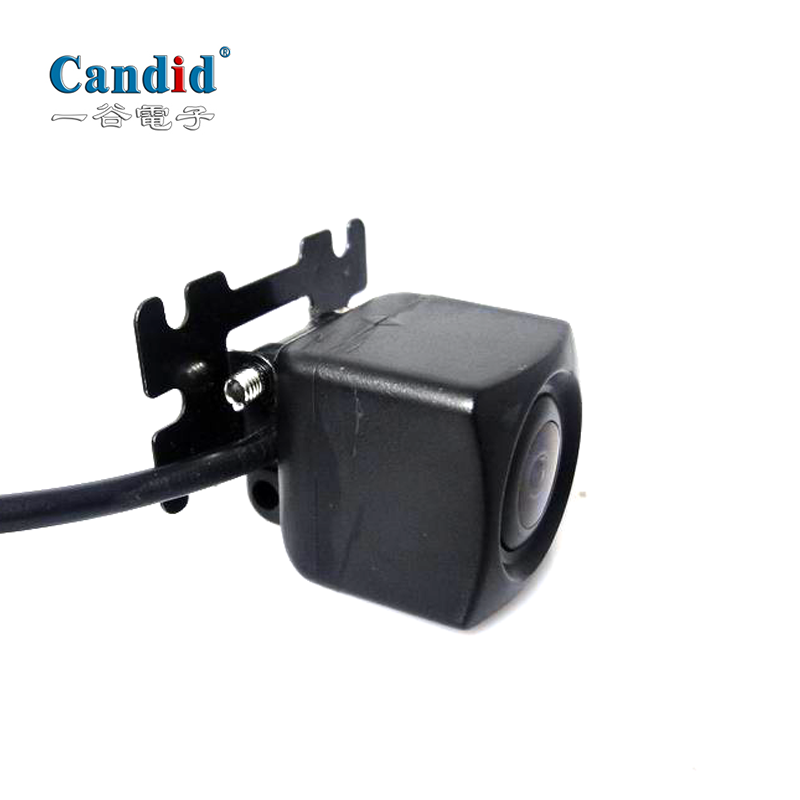

4.Fixed with bracket
5.IP68 waterproof
Specifications
| Signal | AHD |
| TV Mode | NTSC/PAL |
|
Image Sensor |
1/2.9 inch |
|
Operation voltage range |
DC12V(6-16V) |
|
Working current |
TBD |
|
Power Consumption |
TBD |
|
Video Output |
1±0.2 Vpp 75Ω |
| Pixsls | 1928(H) x 1088(V) |
|
UsefulPixels |
1920*1080 |
| Angle | 120 |
|
Minimum lllomination |
TBD |
| WDR | 68.1dB |
| Signal to Noise ratio | 43.2dB |
| Gamma value | 0.45 |
| Shutter Speed | Auto |
| White Balance | Auto |
| AGC | Auto |
|
Waterproofing grade |
IP68 |
|
Operation Humidity |
85 RH% |
|
Operation Temperature |
-20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
