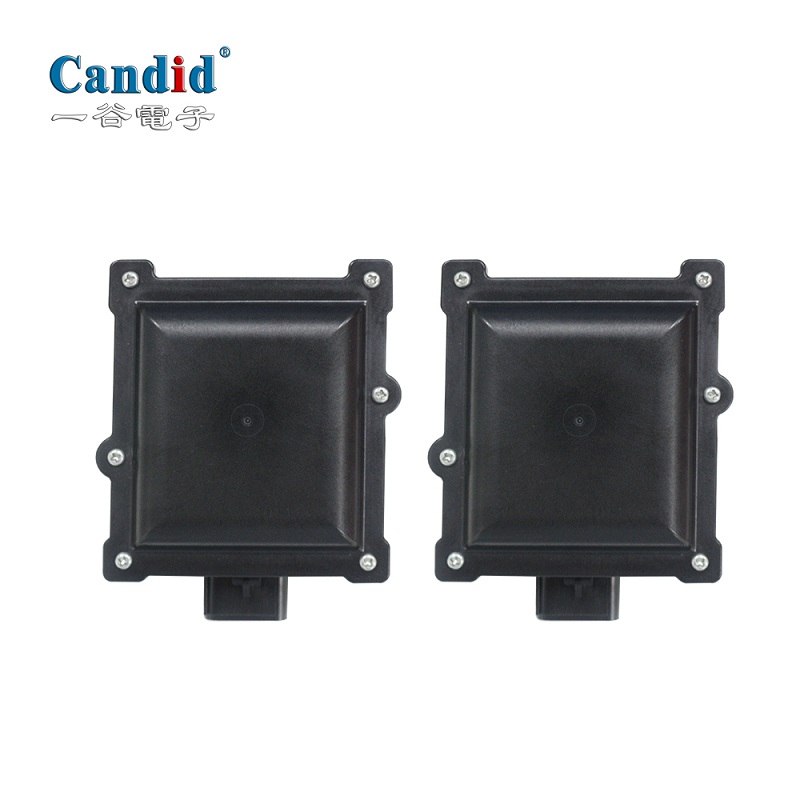

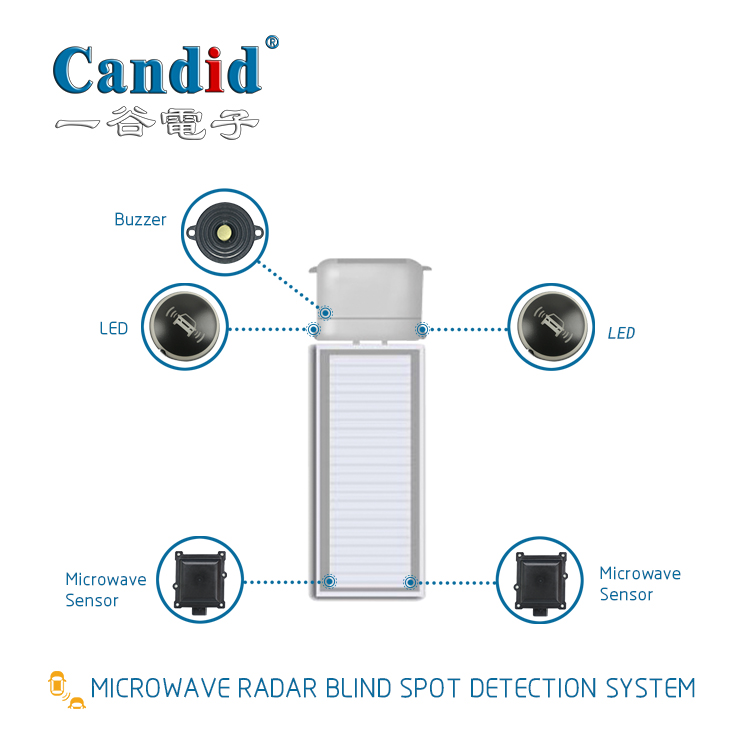

77G Microwave Radar BSD Systems Advance Detection
Features

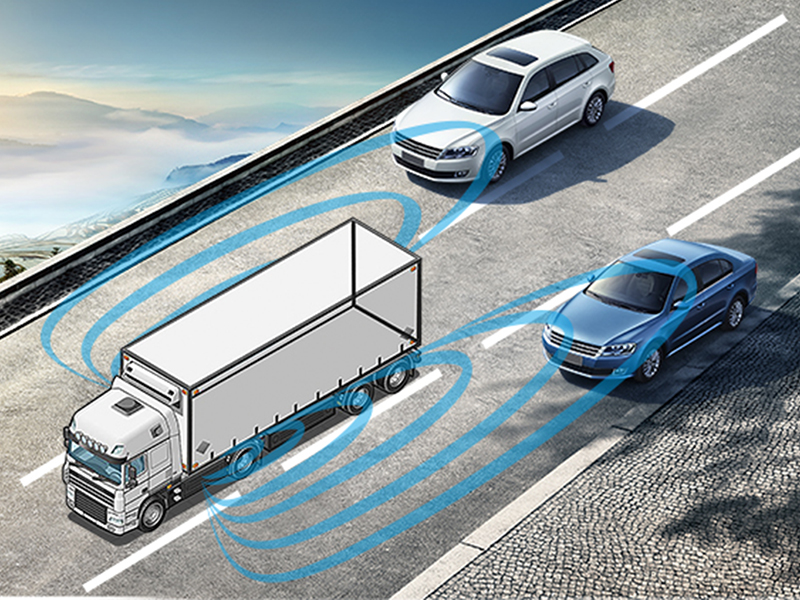

- Blind Spot Detection(BSD)
- Lane Change Assist (LCA)
- Rear Cross Traffic Alert (RCTA)
- Door open warning(DOW)
- Front crash warning (FCW)
- Car reversing aid System(replace ultrasonic wave)
Specifications
| Item | Unit | Value | |
| Frequency | operating frequency | GHz | 77 |

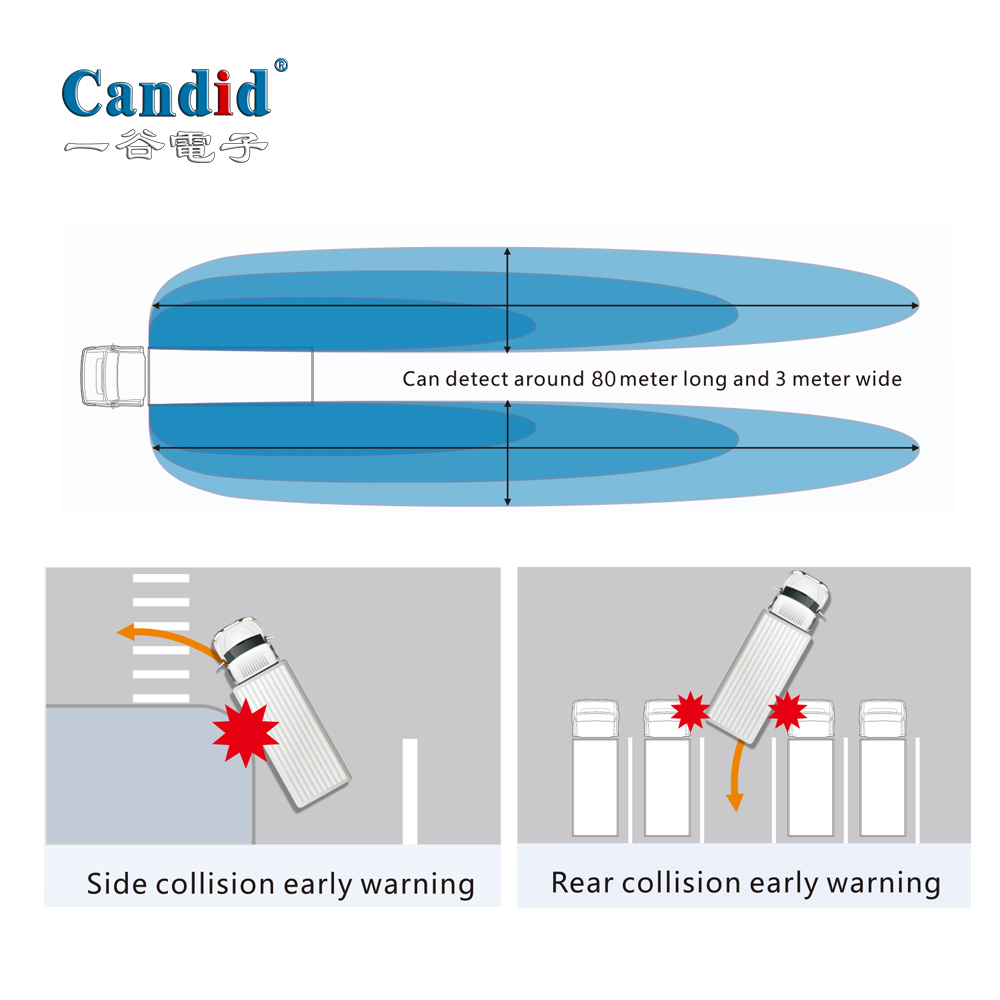

| Detection Range | Detection range on both sides of the body | m | 3 |
| Vehicle rear Detection range | m | 80 | |
| detection angle | Horizontal Angle | degree（°） | 120 |
| Target update frequency | Update target rate | Hz | 33 |
| Distance accuracy | Detection range accuracy | m | 0.36m |
| Angle detection accuracy | Detection angle error range | degree（°） | 1 |
| Relative velocity error | Detect the relative velocity error range | m/s | ±0.25 |
| Alarm relative speed | When the relative speed of the target vehicle and the vehicle is less than 140km/h, the system is working. | ||
| Detect target minimum speed | the target of the relative speed is over 2.5km/h | ||
| Operation voltage | 9V~16V | ||
| Power Consumption | ＜300mA （single） | ||
| Operation Temperature | -40℃~+85℃ | ||
| Storage Temperature | -40℃~+85℃ | ||
| IP Rating | IP68 | ||

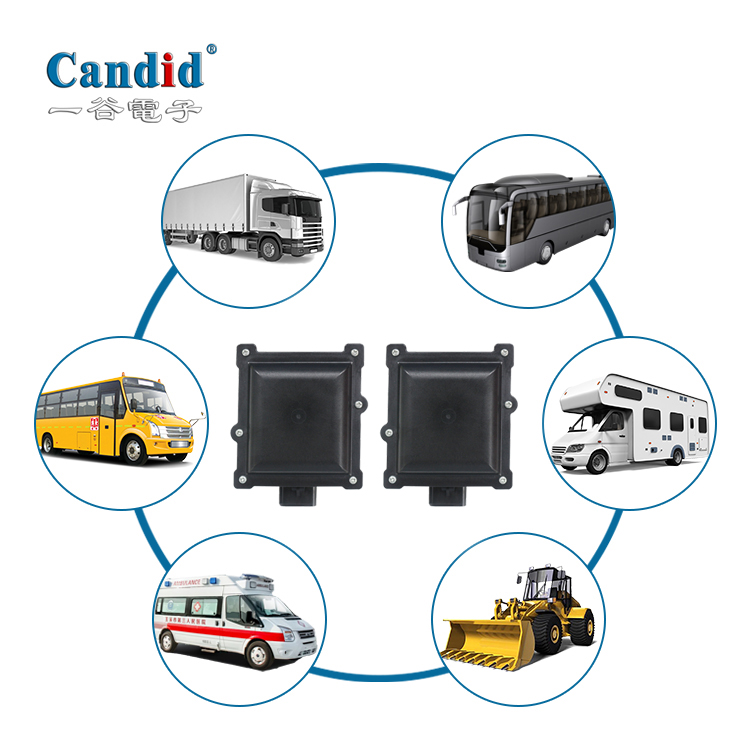

Applications
A. Cooperate with the carrier for Japan 2020 Olympic

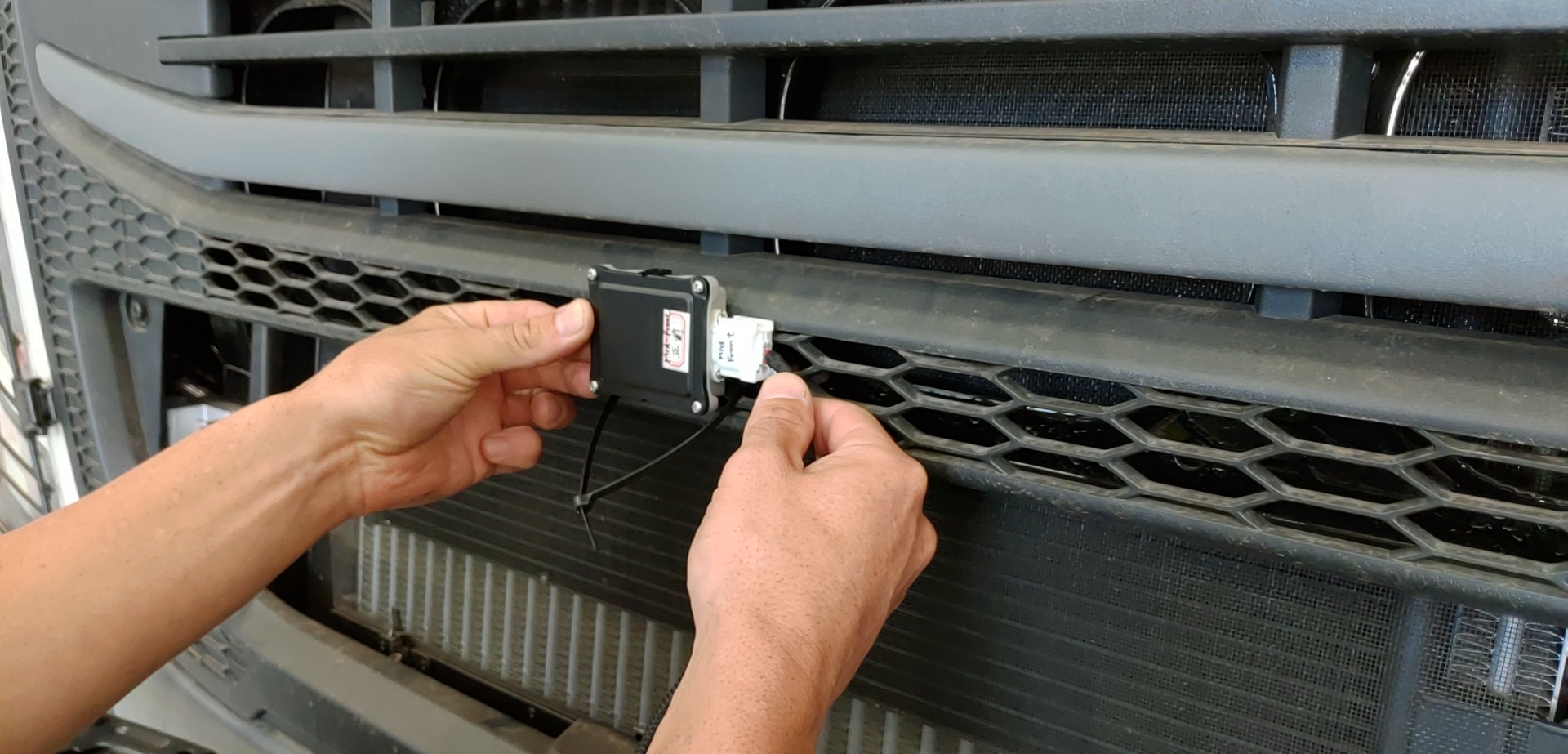

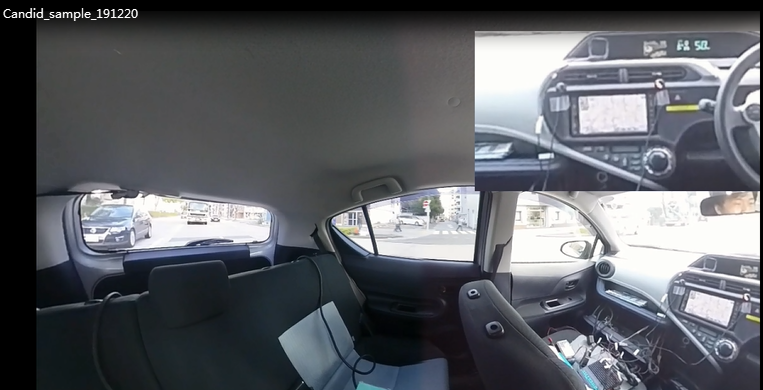

In 2019, we cooperated with a company who is the carrier for Japan 2020 Olympic by supplying our full set 77Ghz BSD system, the system was installed in front & rear side for collision warning and the road testing is done. But due to Covid-19, this project was put on hold for production.

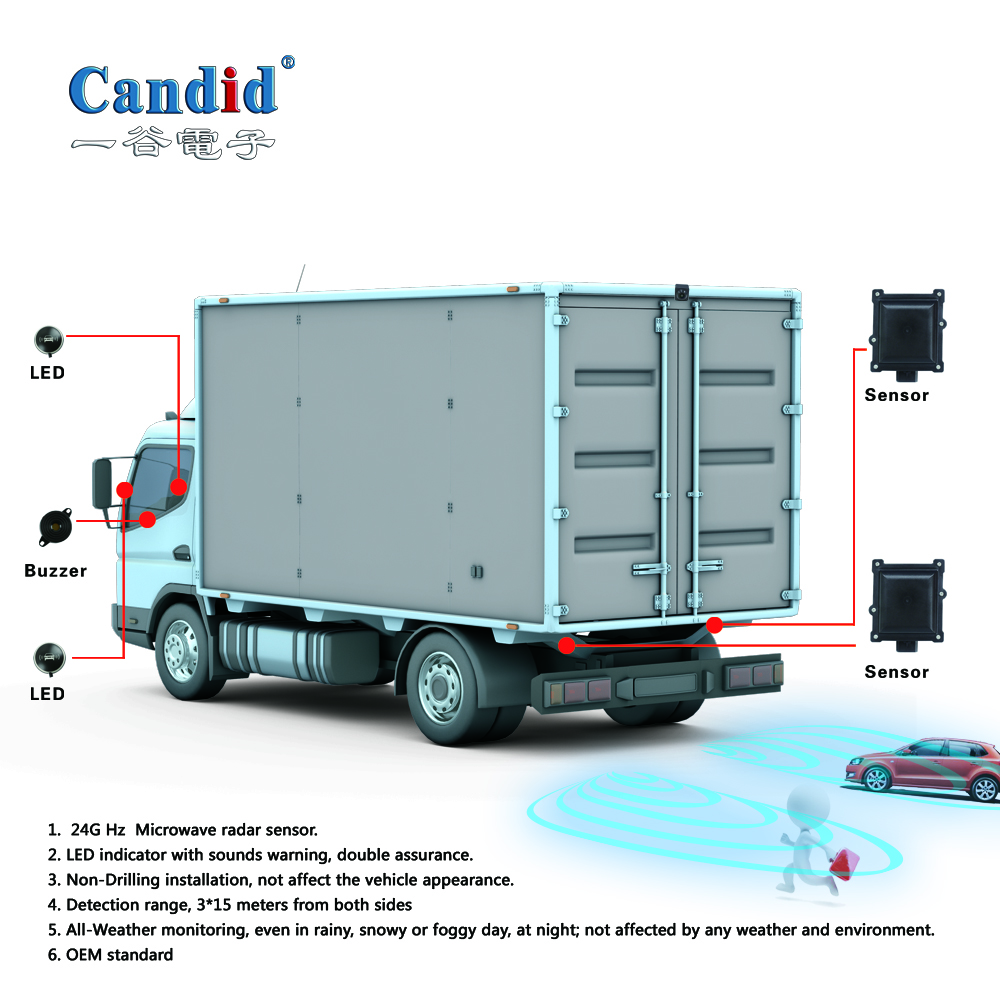

B. Cooperate with China OEM for Truck

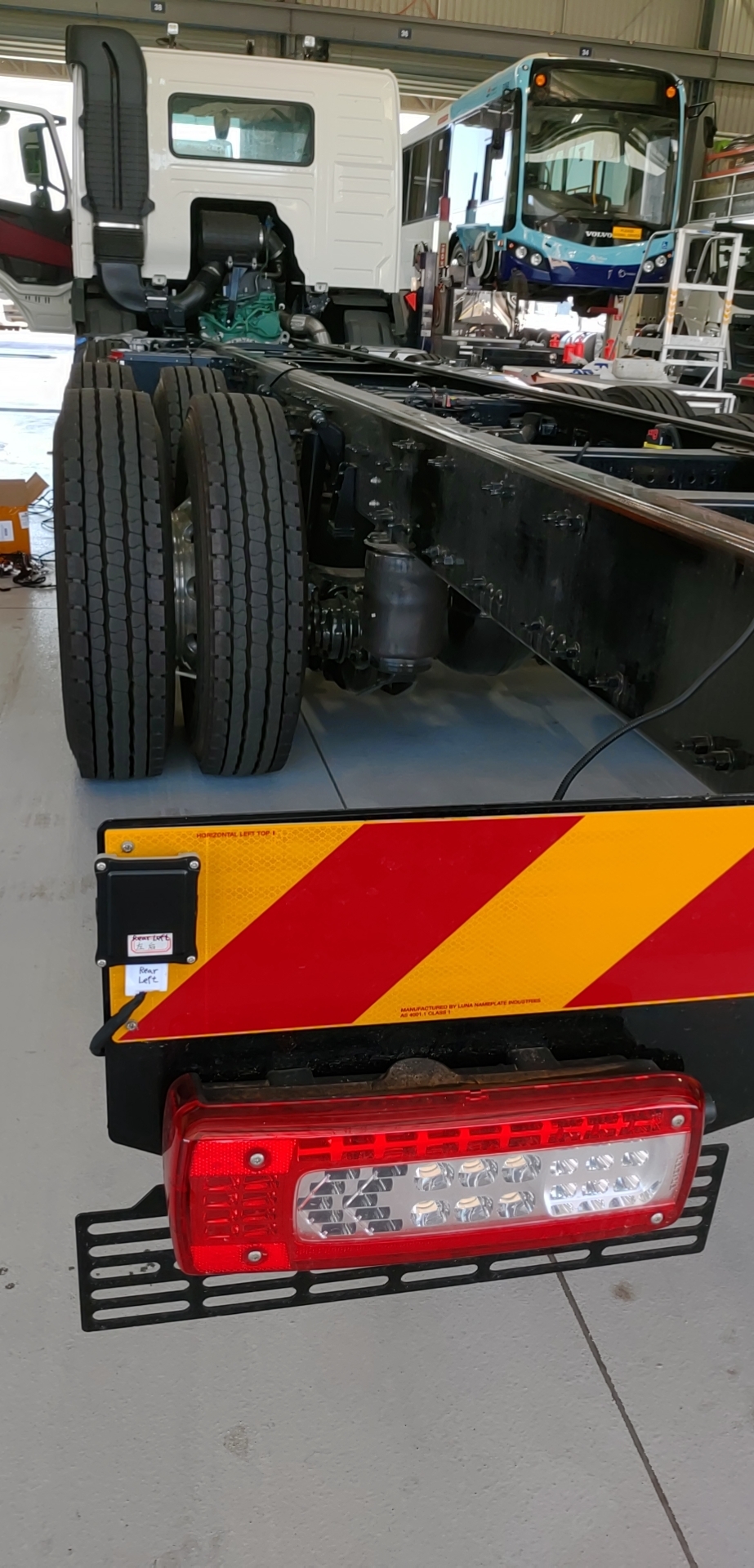

We are supplying the full set of 77Ghz BSD system to a China OEM since 2020, the average monthly QTY is 1,000pcs. The system is including 3pcs radar sensor chips to be installed on front side & left & right of the back side.
C. Cooperate with China OEM for motorcycle

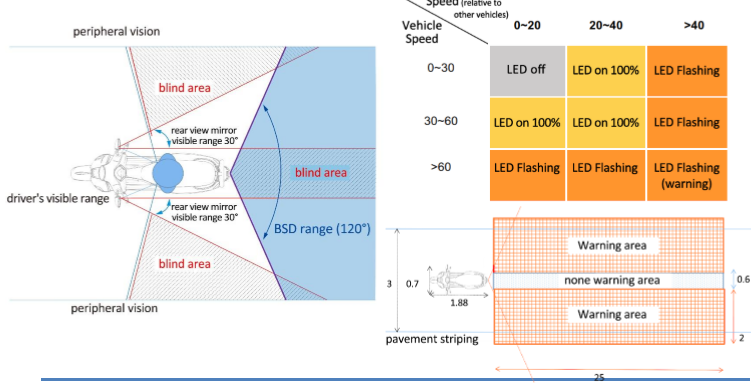

We worked with a China OEM from Taiwan to develop a 77Ghz BSD system for their motorcycle, the BSD body is customized fit for specific motorcycle model and being installed on rear side for detection.
In 2019, we cooperated with a company who is the carrier for Japan 2020 Olympic by supplying our full set 77Ghz BSD system, the system was installed in front & rear side for collision warning and the road testing is done. But due to Covid-19, this project was put on hold for production.
B. Cooperate with China OEM for Truck
We are supplying the full set of 77Ghz BSD system to a China OEM since 2020, the average monthly QTY is 1,000pcs. The system is including 3pcs radar sensor chips to be installed on front side & left & right of the back side.
C. Cooperate with China OEM for motorcycle
We worked with a China OEM from Taiwan to develop a 77Ghz BSD system for their motorcycle, the BSD body is customized fit for specific motorcycle model and being installed on rear side for detection.

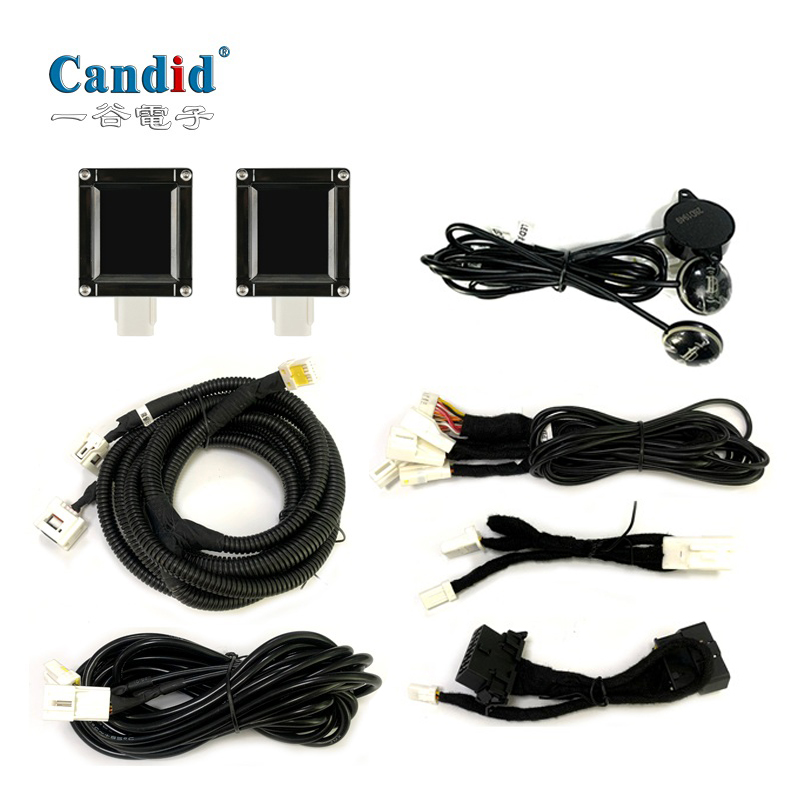

Previous: Microwave radar blind spot detection systems BSD-24G
