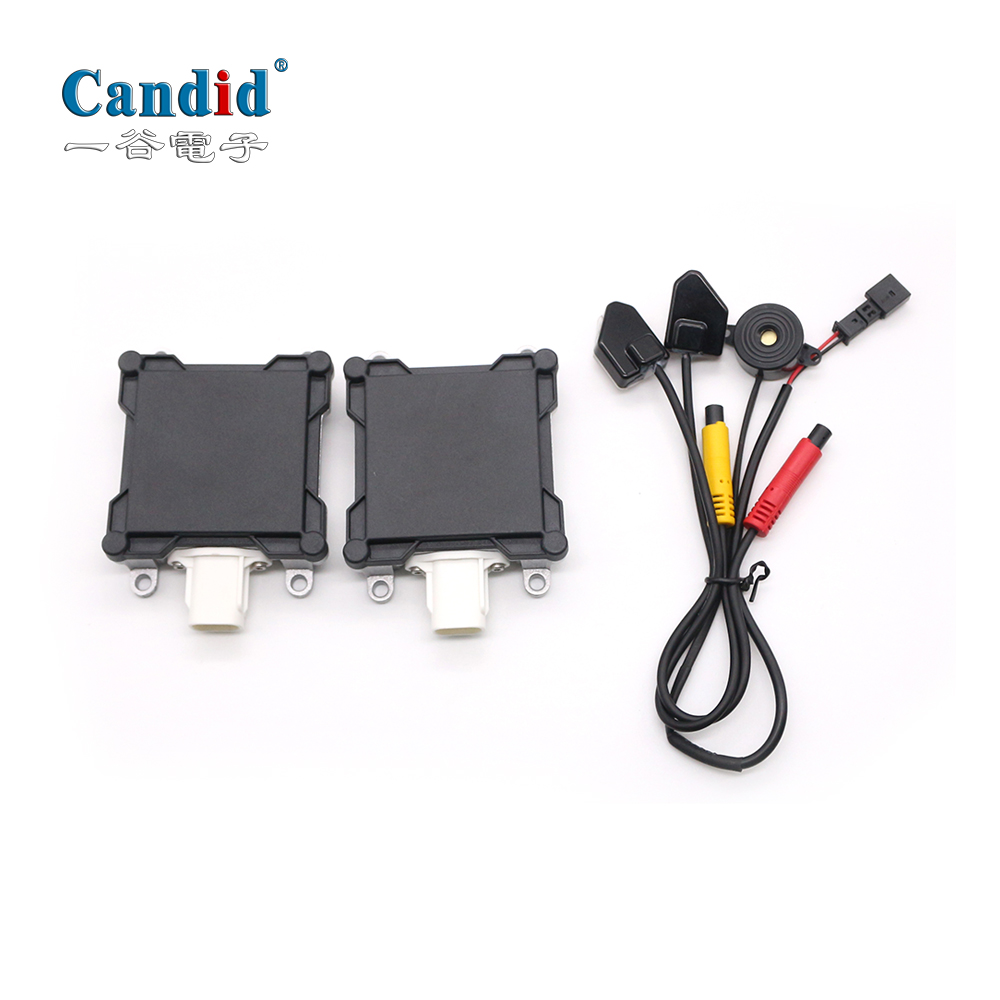

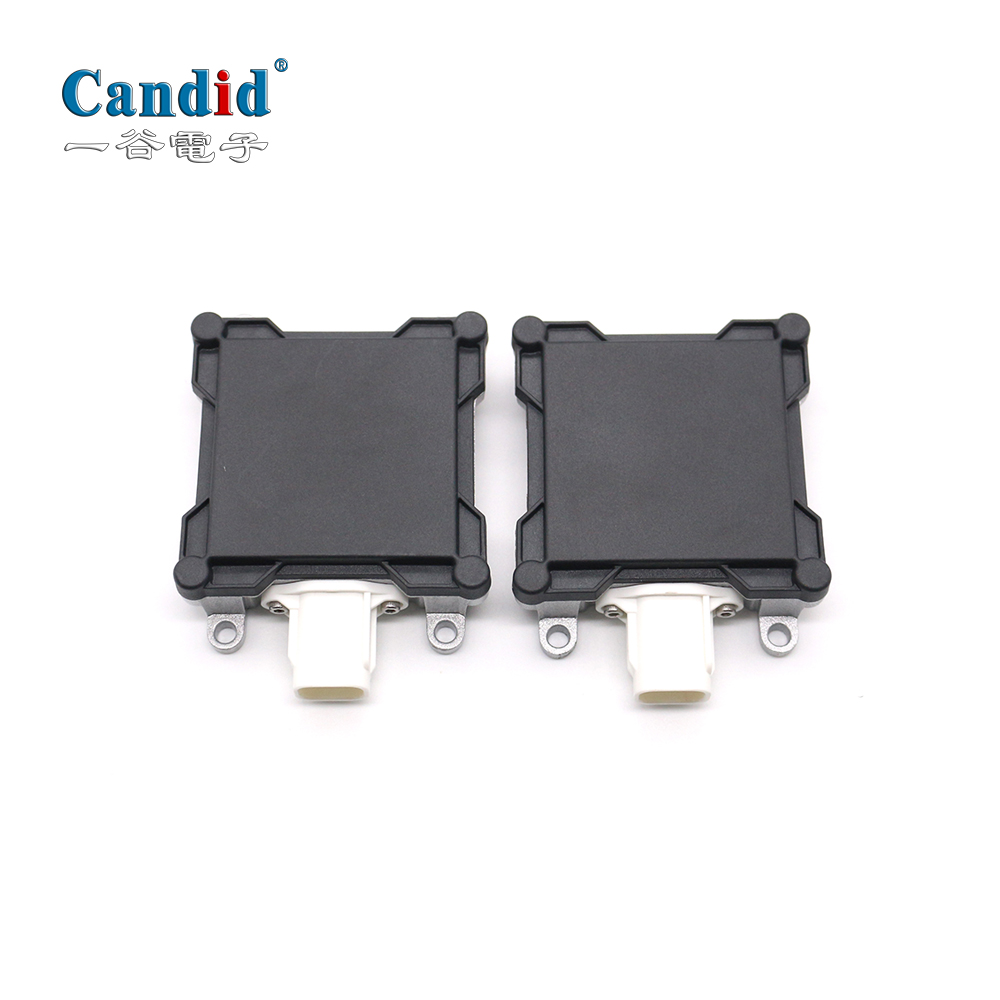

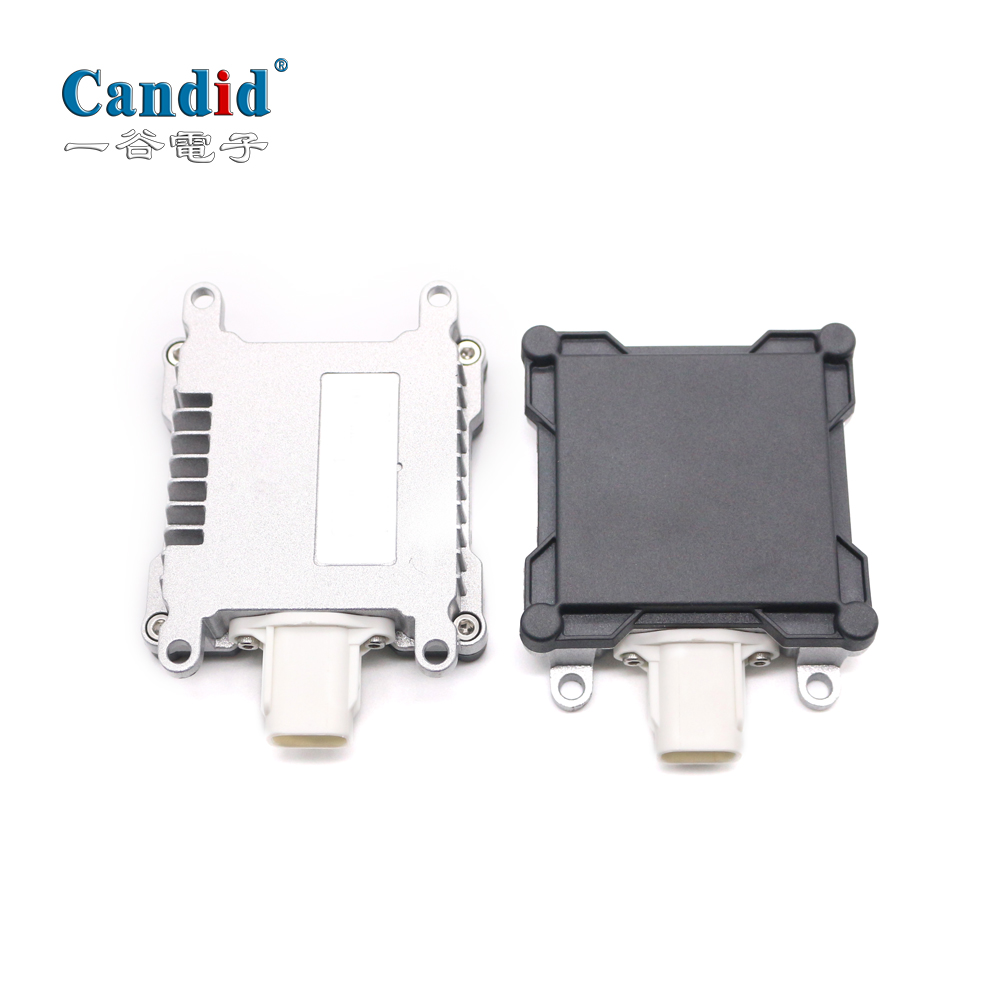

77GHz Millimeter-Wave Radar

The 77G lane change assist system can warn of dangerous targets in the adjacent lanes.

Features

1.Includes 6 functions: BSD, LCA, AOA, DOW, RCTA, FCW;
2.Detect targets as far as 70 meters away;
3.Access the vehicle body signal for comprehensive analysis and processing;
4.Includes the first-level alarm and the second-level alarm;
5.Penetrate smoke, fog, and dust; Can be used all day and all night.

Specifications

Item	Description
Working voltage	8-36V
Working temperature	-40℃-85℃
Power consumption	<2W
Waterproof	IP67
Frequency	77-81Ghz
Weight	132.4g
Housing size	67x81x20mm
Horizontal velocity width	±60°
Distance measurement accuracy	Better than 0.18m
Detection distance	70m

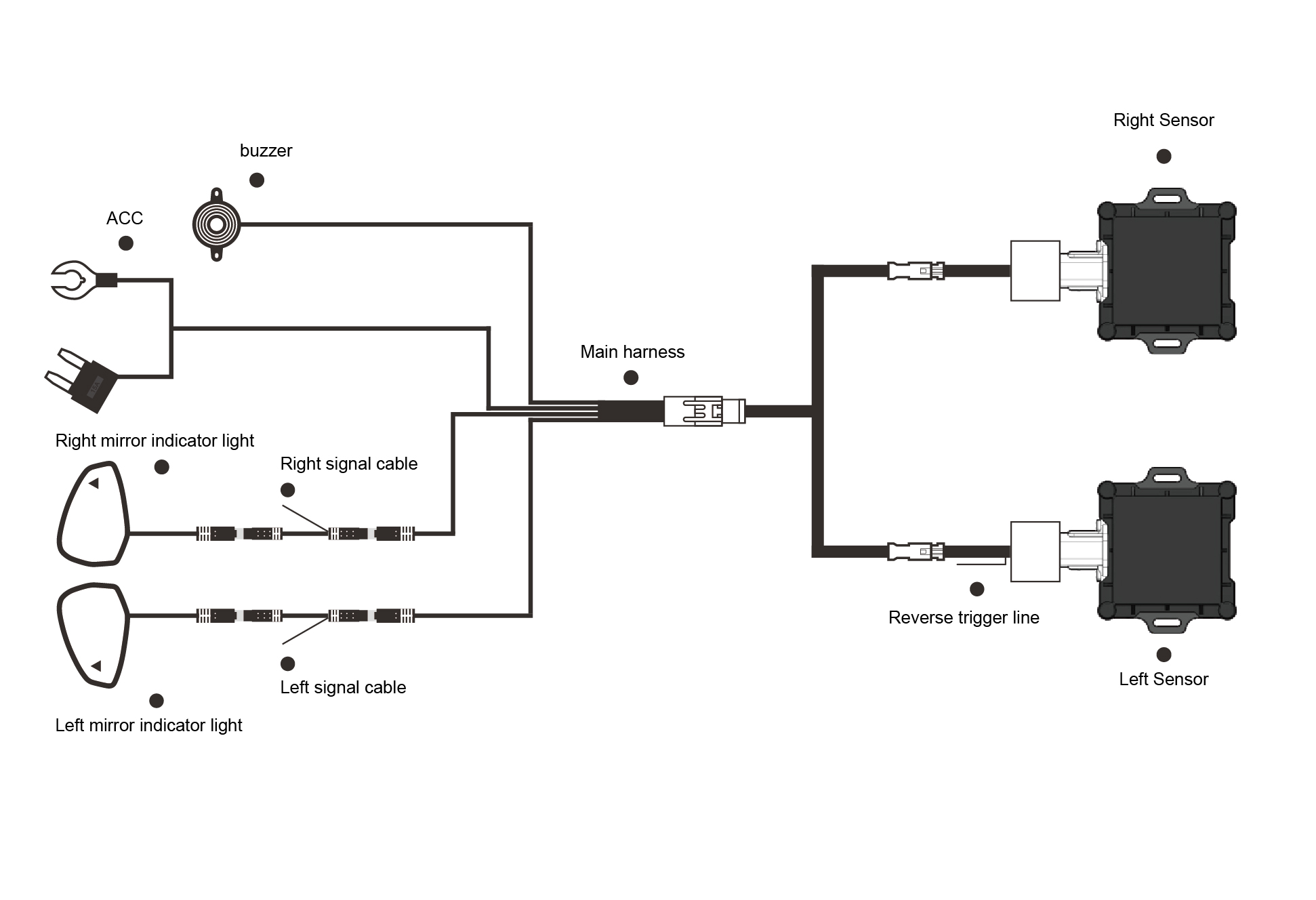

Input signal	1 Channel reverse gear signal, left and right turn signal
Output signal	1 channel Buzzer, left and right warning lights

Applications

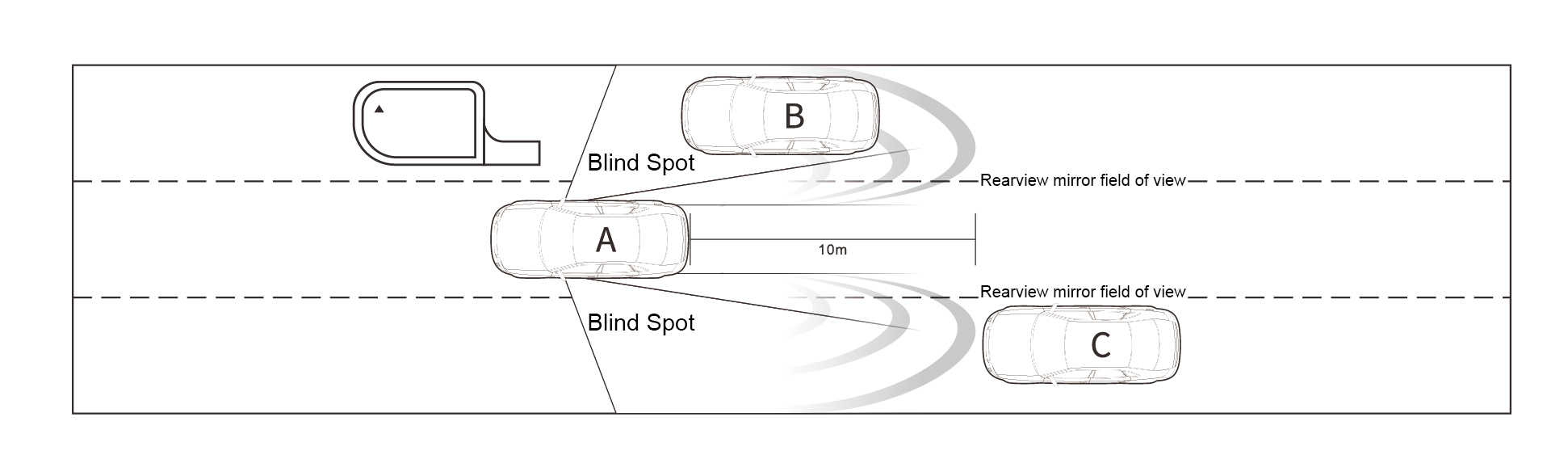

1.BSD--blind spot detection
Real-time monitoring of the short-distance blind spot (0~10m) outside the rearview mirror range to prevent accidents (dual radar can detect 180-degree blind spots).

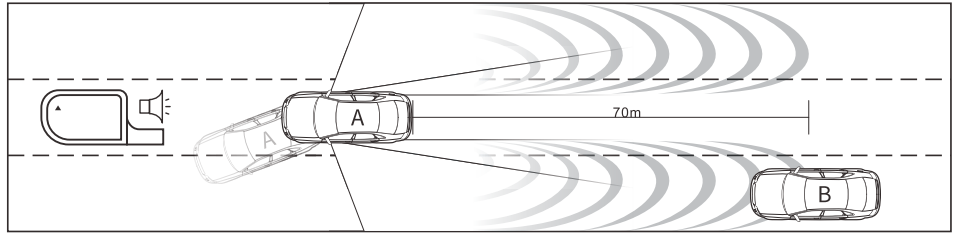

2.LCA-- Lane Change Assist
Prevent collisions caused by not noticing the fast approaching vehicle behind (10~70m) when changing lanes.

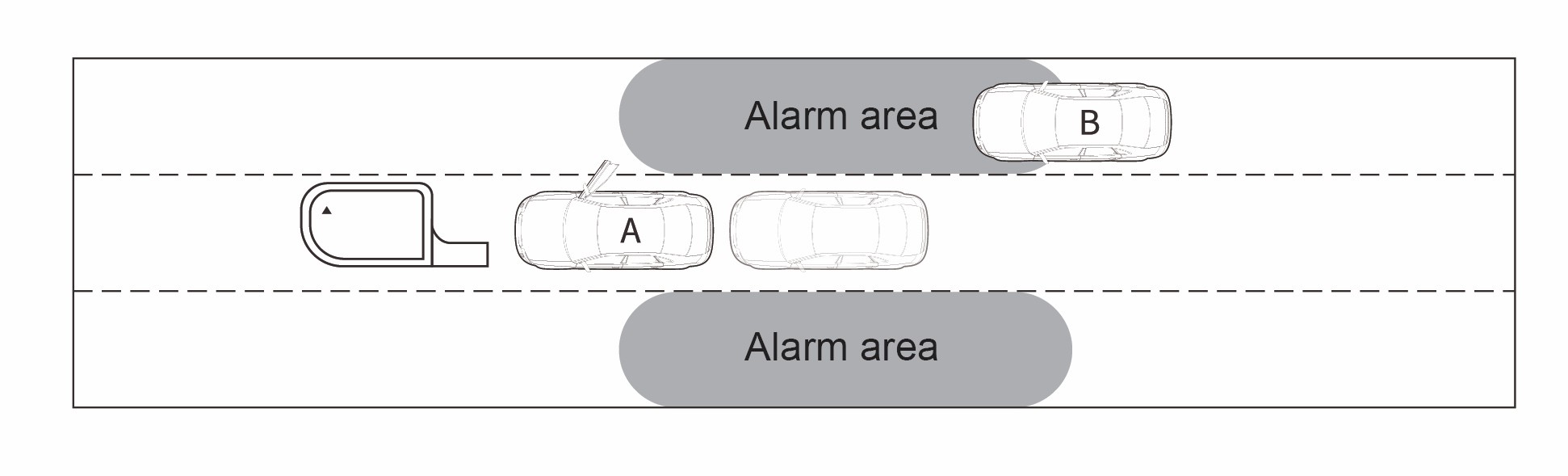

3.DOW-- door opening warning
Prevent collision due to failure to notice the approaching object from the rear when parking and opening the door.

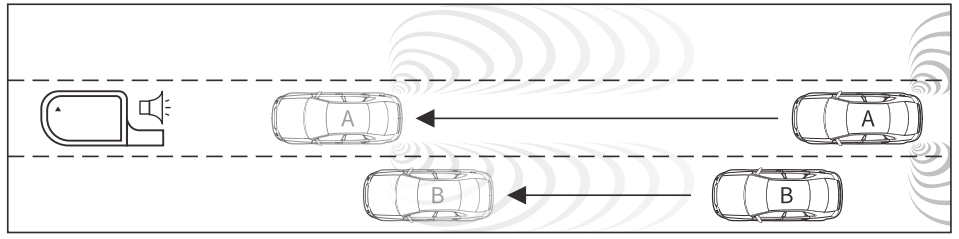

4.AOA --Active Overtaking Warning
When vehicle A actively overtakes while driving, if there is a moving object in the blind spot, the rearview mirror indicator light will be on to warn that there is a vehicle in the blind spot, and it is dangerous to change lanes at this time.

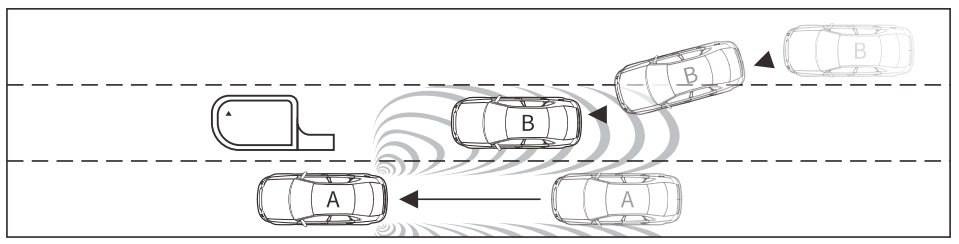

5.FCW --Forward Collision Warning
Real-time monitoring of the rear environment (0~10m), prevent collision with the same speed following car when changing lanes (dual radar can detect 180-degree blind spot).

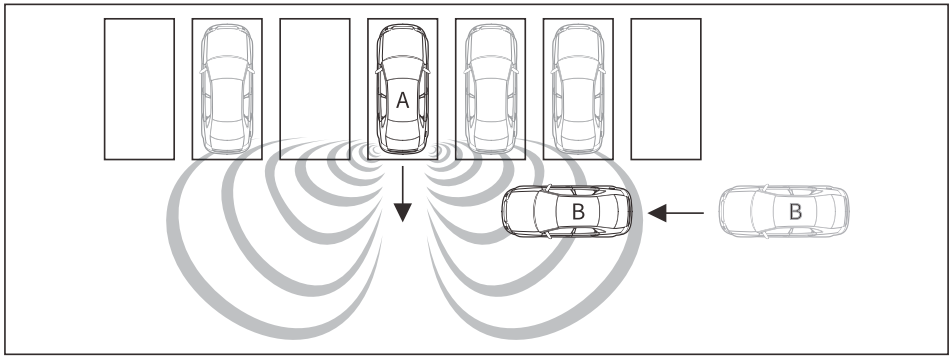

6.RCTA --Reversing Side Collision Warning
When the vehicle is reversing, it does not notice the fast-moving objects behind and collides (longitudinal 0~10m, horizontal -10~+15m).
