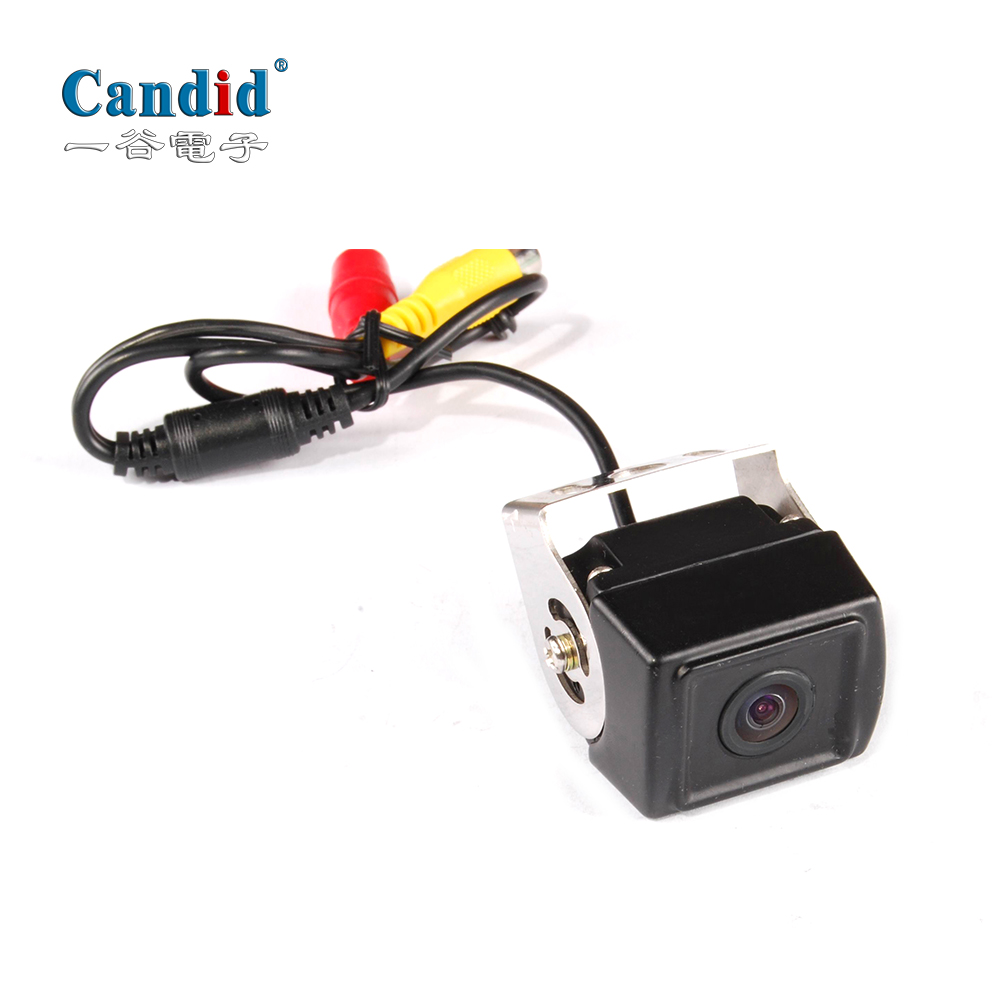

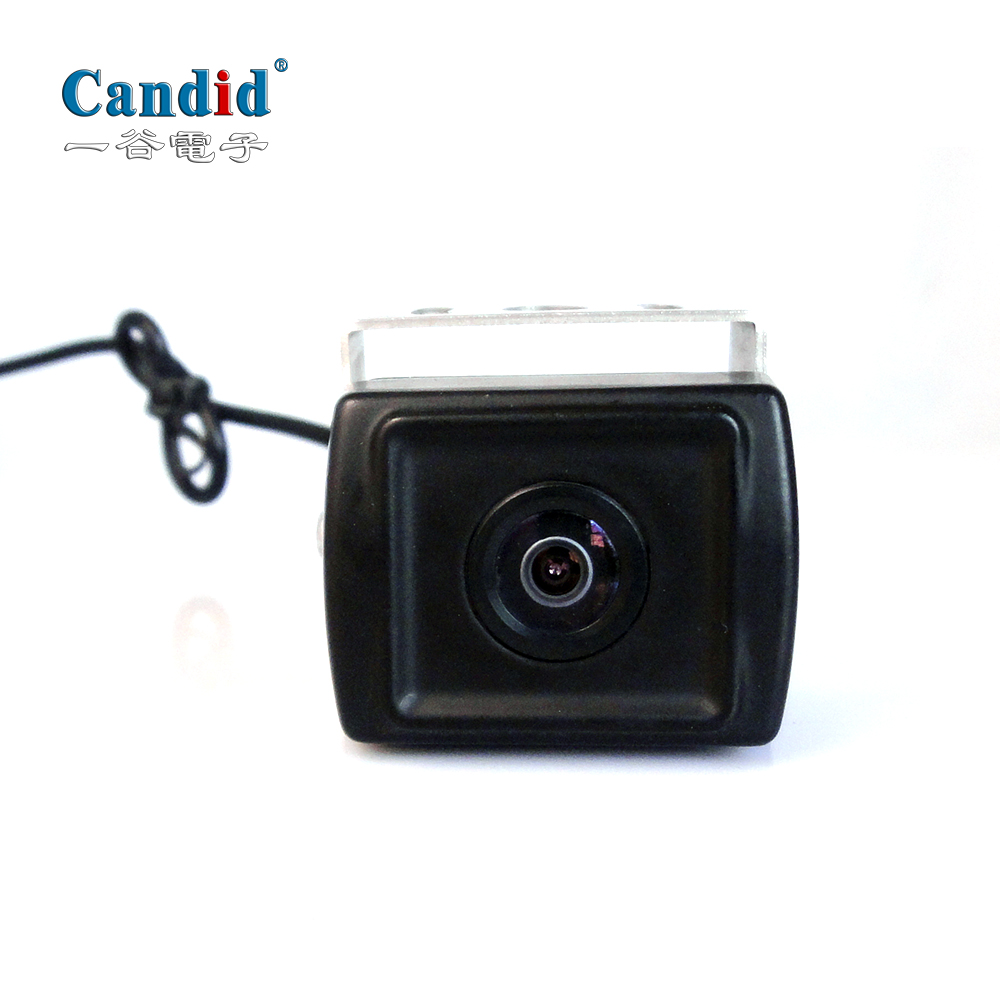

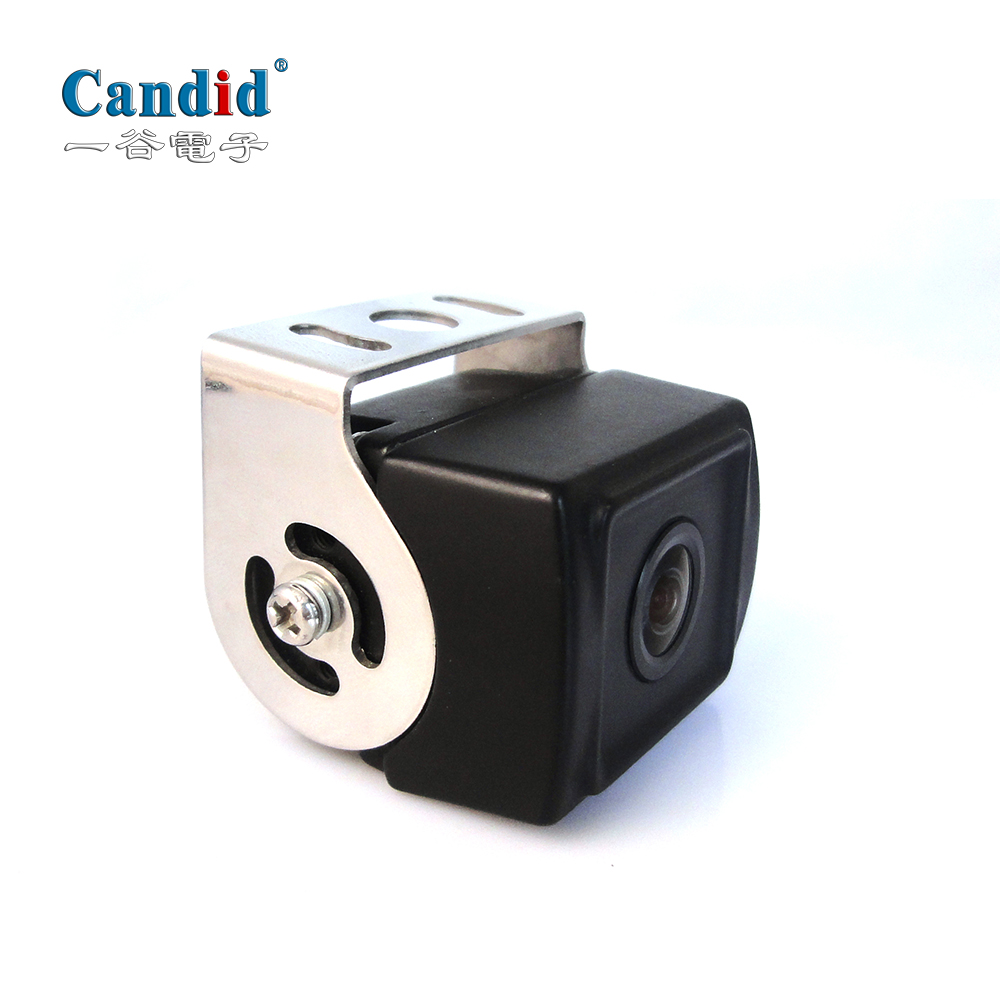

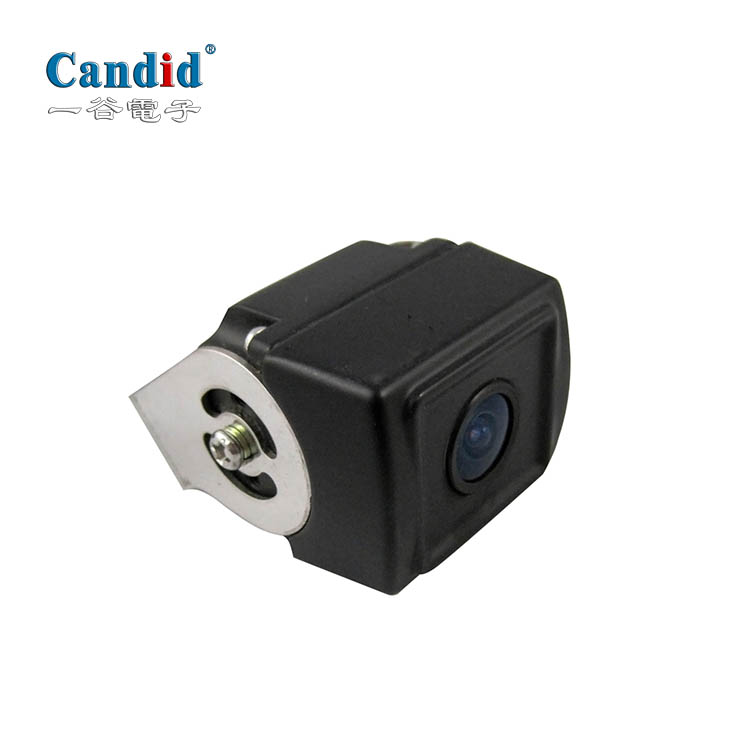

Commercial vehicle rearview camera CA-9220
Features
1. Blind spot monitoring
2. AHD 1080P
3. 170 degree field of view
4. Metal anti-smash housing
5. IP68 waterproof
Specifications
|
Gamma value |
TBD |
|
TV Mode |
PAL/NTSC |
|
Image Sensor |
1/2.9 inch |
|
Operation voltage range |
DC12V(7.5-16V) |
|
working current |
63.5mA±10mA |
|
Power Consumption |
0.75W DC12 V |
|
Video Output |
1.0±0.2Vpp 75Ω |
|
UsefulPixels |
1920*1080 |
|
Minimum lllomination |
0.5Lux |
|
camera angle |
170° |
|
waterproofing grade |
IP68 |
|
Operation Humidity |
85 RH% |
|
Operation Temperature |
-20℃~ +60℃ |
|
Signal to Noise ratio |
TBD |
