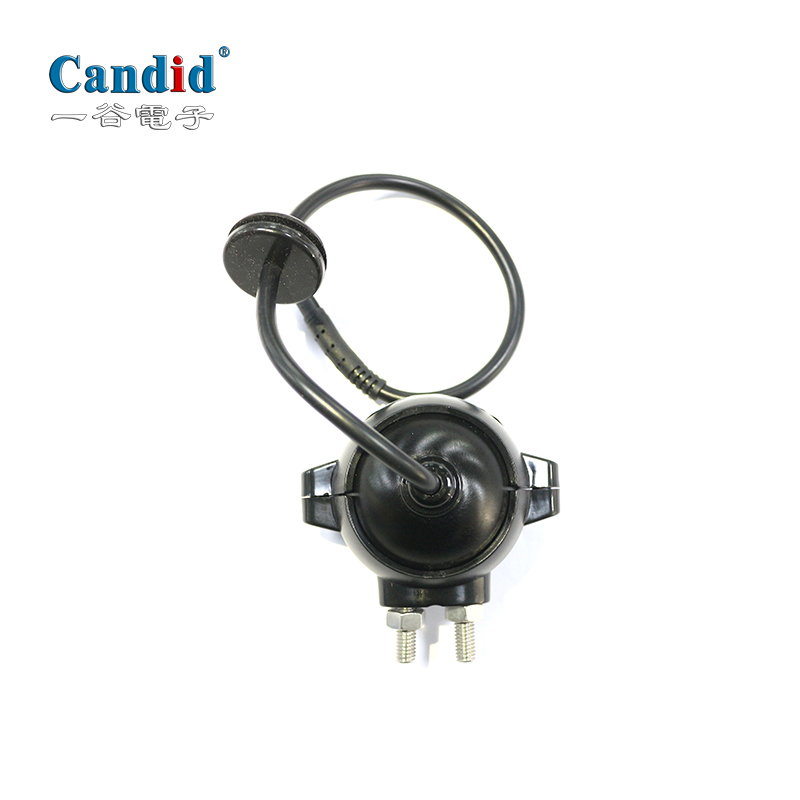

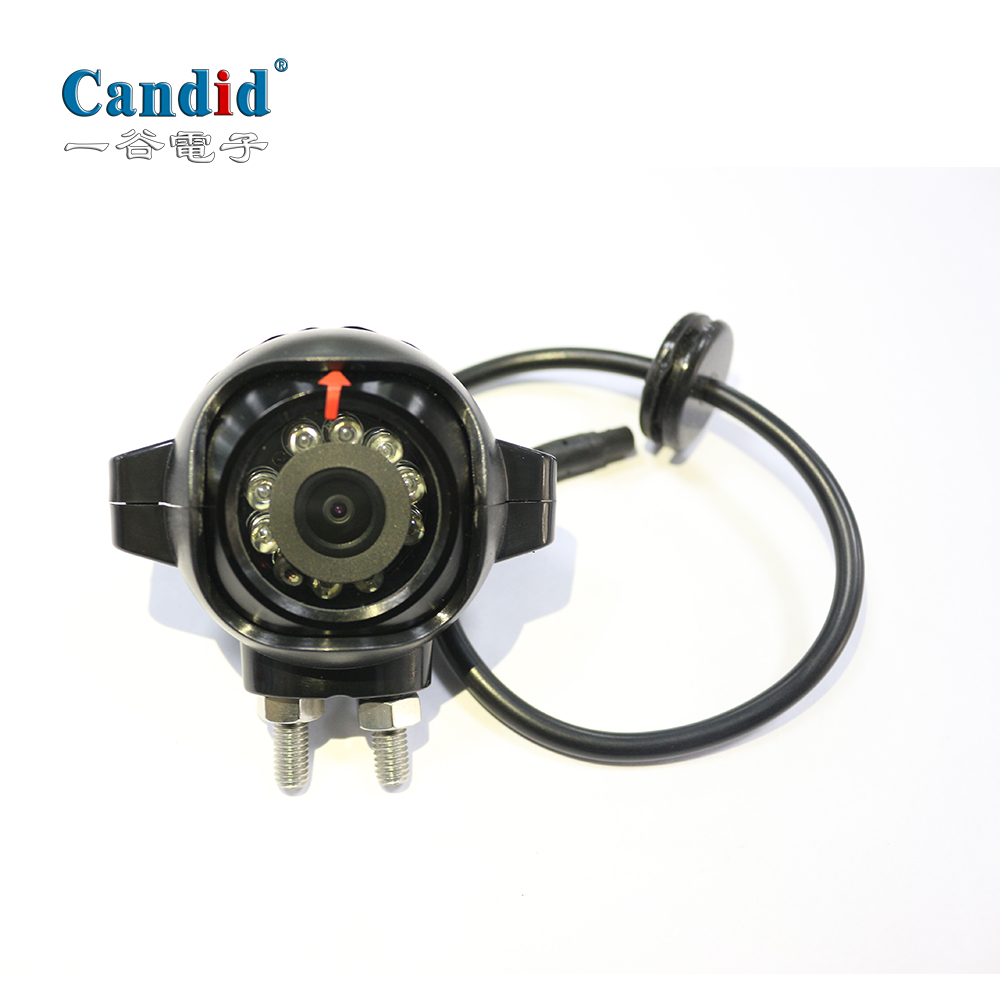

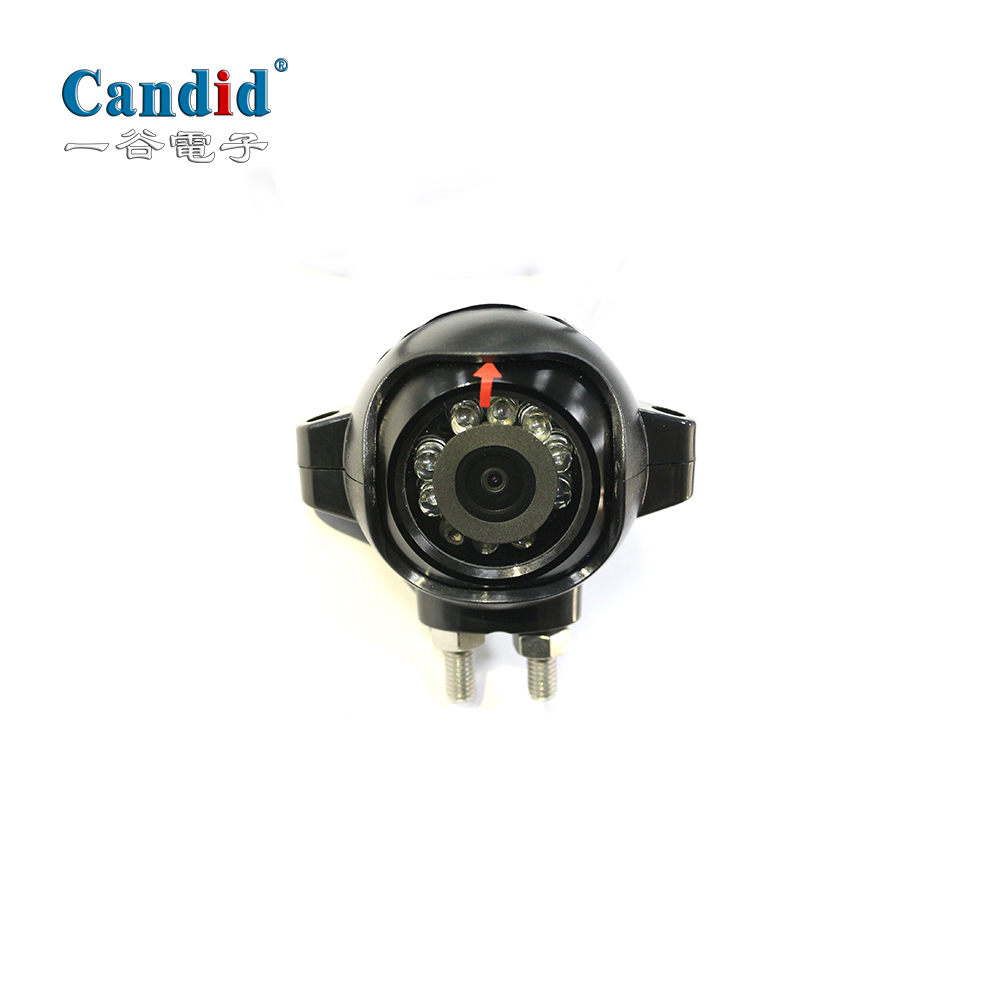

Commercial vehicle sideview camera CA-9440
Suitable for commercial vehicles such as trucks, construction machinetrucks, agriculture machine, etc.
Features
1.Sharp CCD Chips
2.Infrared night vision
3.Metal spherical shell design
4.Support side and reverse
5.IP68 waterproof
Specifications
| TV Mode | NTSC/PAL |
|
Image Sensor |
1/3 inch or 1/4 inch |
|
Operation voltage range |
DC12V(10-16V) |
|
working current |
65mA±10mA |
|
Power Consumption |
0.78W@ DC12 V |
|
Video Output |
1±0.2 Vpp 75Ω |
| Resolution | 43w Pixel |
| Pixsls | PAL 795*595 / NTSC 811*507 |
|
UsefulPixels |
PAL 752*582/NTSC 768*494 |
|
Minimum lllomination |
0.3Lux |
| WDR | 80dB |
| Signal to Noise ratio | 51dB |
| Gamma value | 0.45 |
|
Camera angle |
TBD |
| Shutter Speed | Auto |
| White Balance | Auto |
| AGC | Auto |
|
Waterproofing grade |
IP68 |
|
Operation Humidity |
85 RH% |
|
Operation Temperature |
-20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
