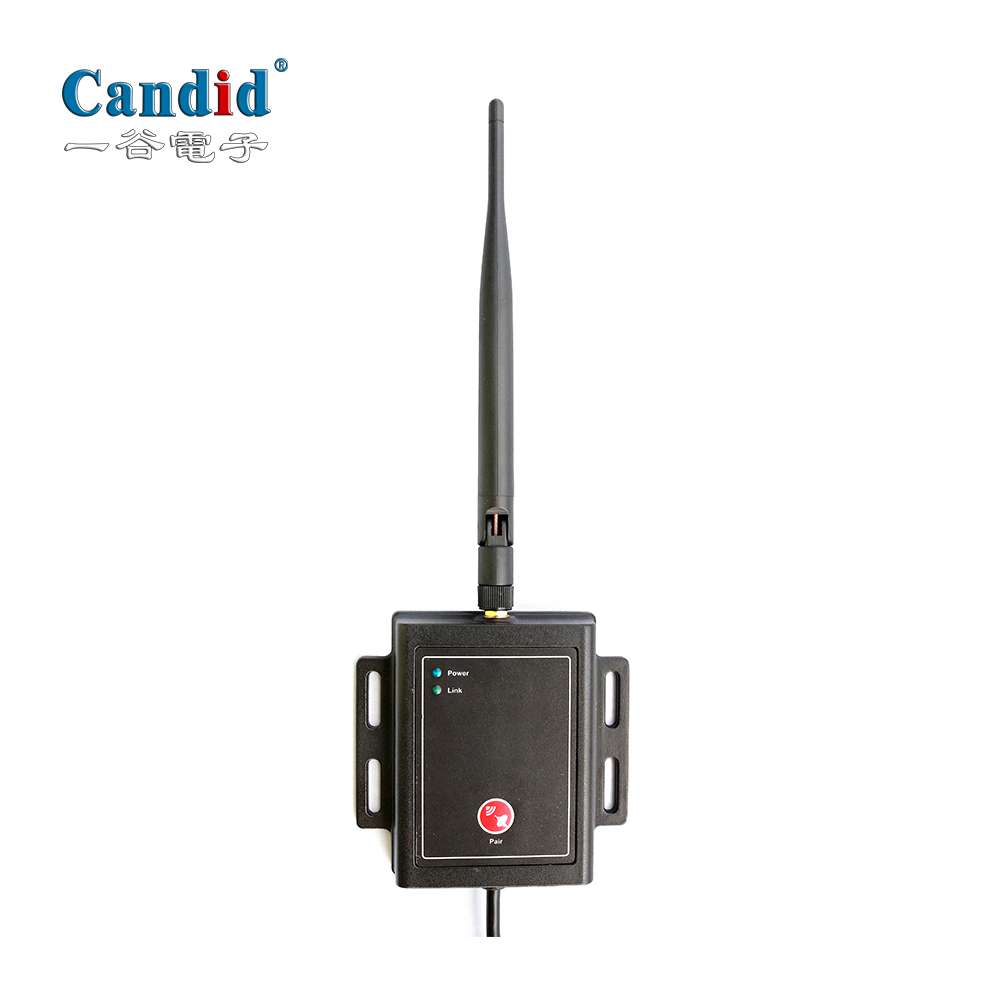

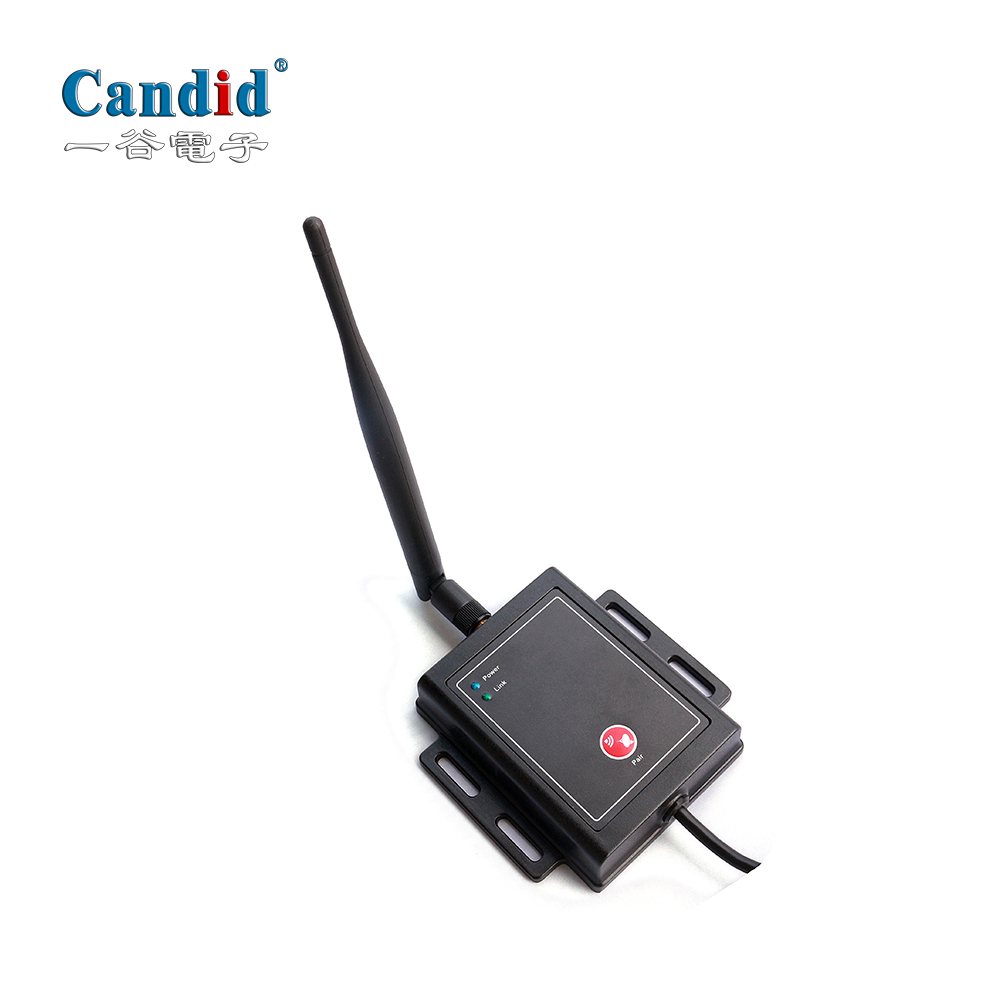

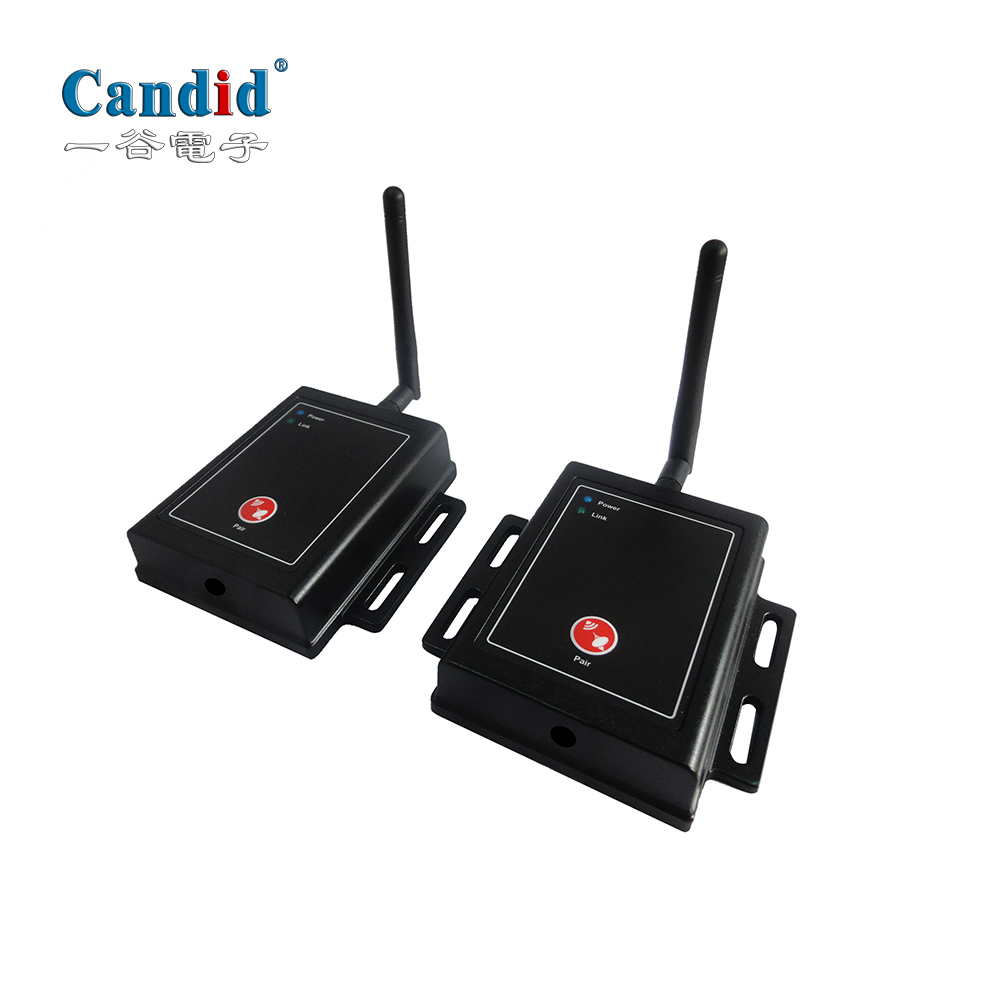

Bus Truck 2.4GHZ digital wireless transmitter and receiver supplier
Features

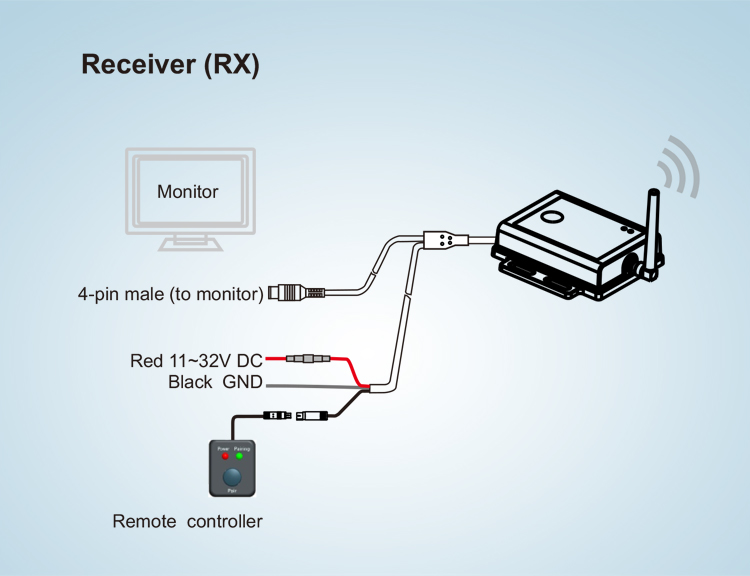

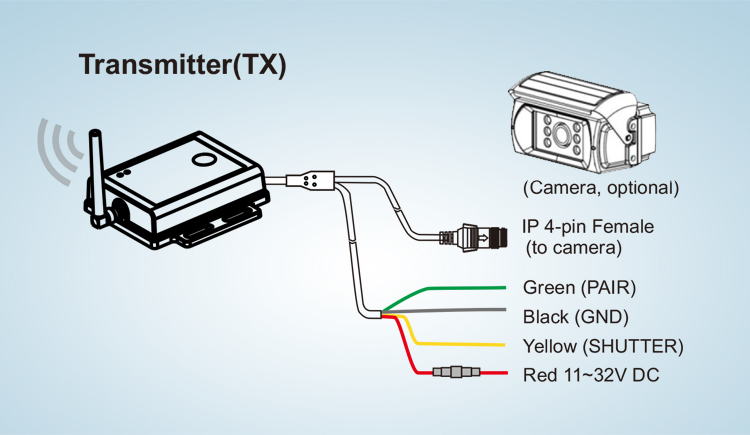

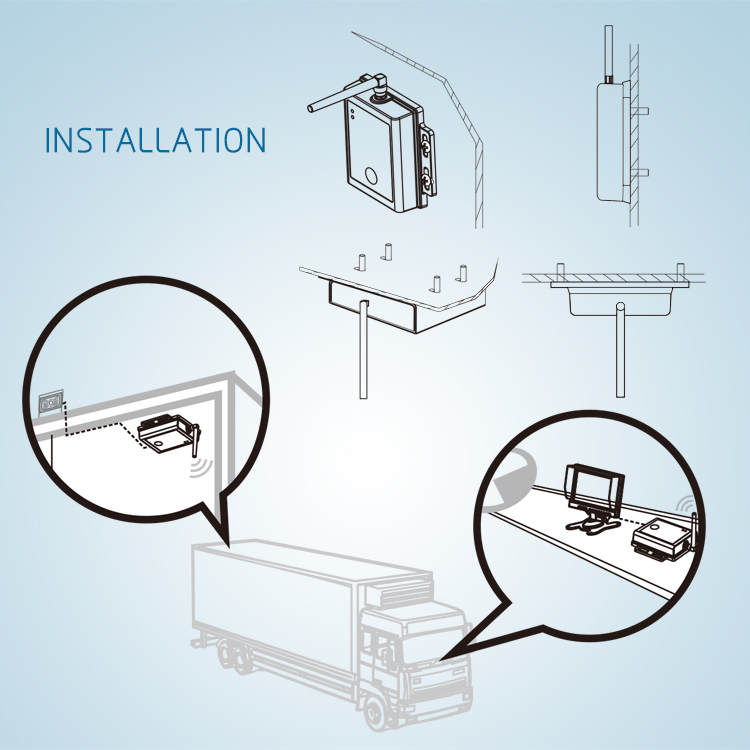

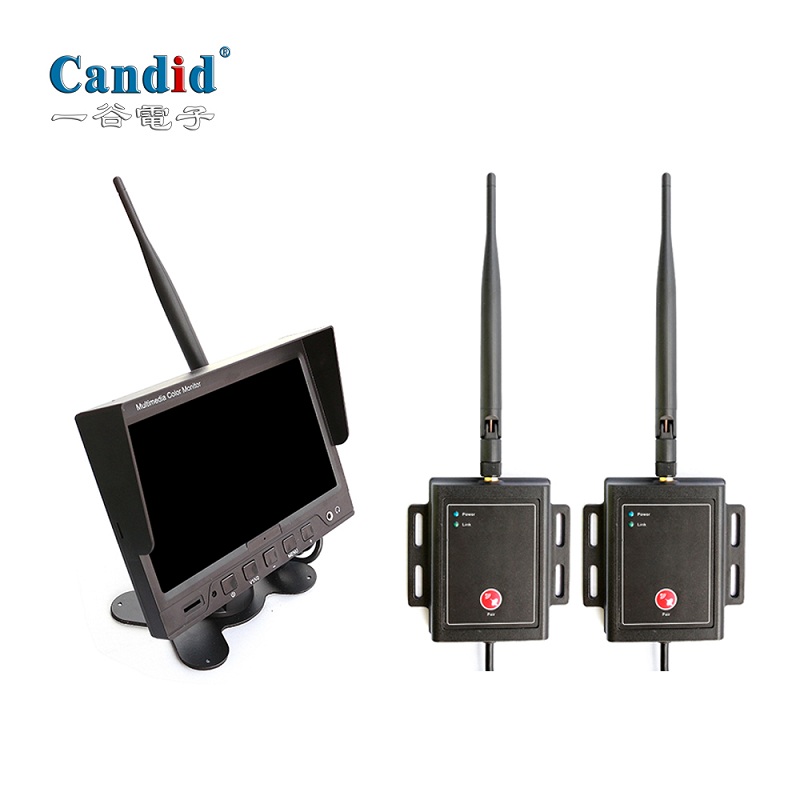

Feature: Bus Truck 2.4GHZ digital wireless transmitter and receiver, can connect with the orginal monitor and camera to be the wireless camera image system
Specifications
| Operating frequency | 2400MHZ-2525MHZ |
| Modulation system | FSK/GFSK |
| Connection distance | Over 200M in empty place |
| Operting temperture | ‘-10℃ - +60℃ |
| Storing Temperature | `-30~+85 ºC |
| Operating humidity | `85%RH |
| Operating current | DC-IN:12V 260MA @MAX |
| Video Codec | MPEG4 |
| IP Rating | IP69K |
| Power supply | DC 12V~32V ±0.5 |
| Current Consumption | 12V/180±20mA |
| Power on | 2s max |
| Weight | 0.73kg |
| Power supply | +5~+12V |
| Power on | 3s max |
| Weight | 0.73kg |

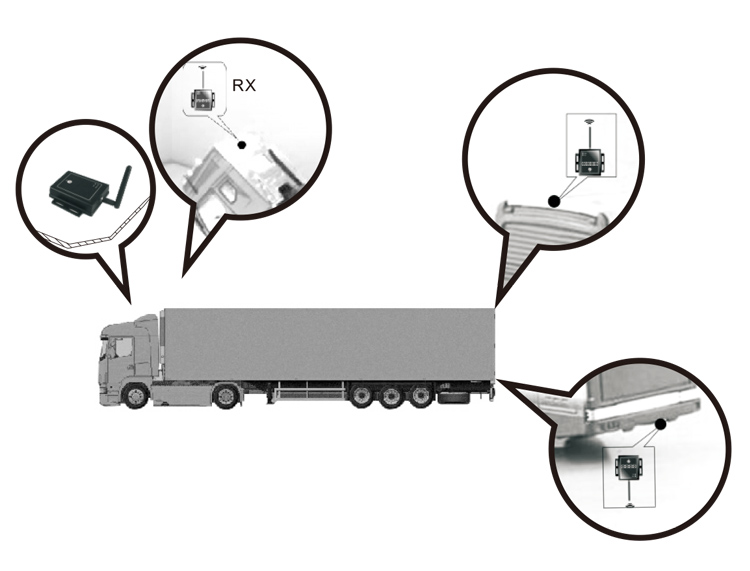

Applications
