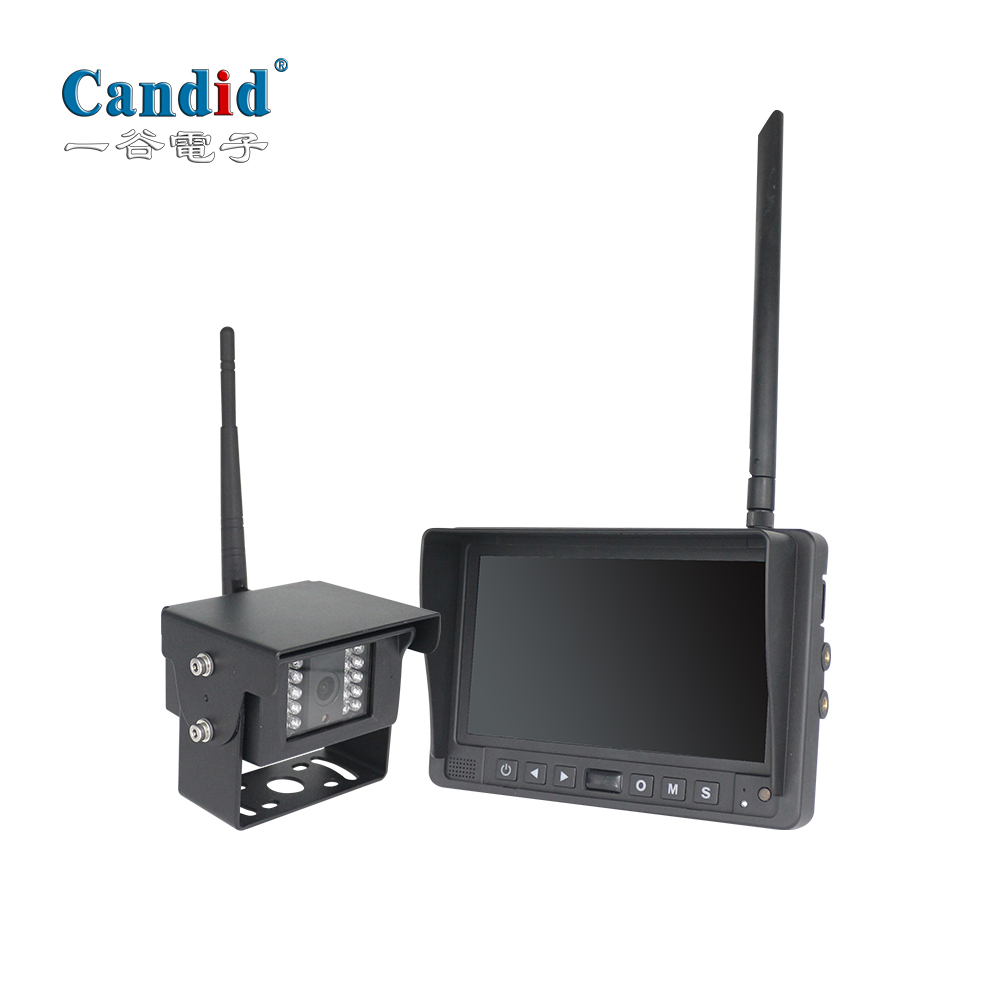

Wireless Monitor System
Is it difficult to wire a 20-meter-long car? No need to install cables, million-level high definition, picture delay <150ms, solving the connection problem between the screen and the camera.
Features
Zero Wiring Complexity: Ideal for retrofitting special vehicles.
Long-Range Transmission: Stable signal coverage up to 300 meters.
Adaptive Mounting: Magnetic and laser-assisted designs for versatile scenarios.
Blind Spot Surveillance: Critical for large vehicles like trucks and forklifts.
Specifications

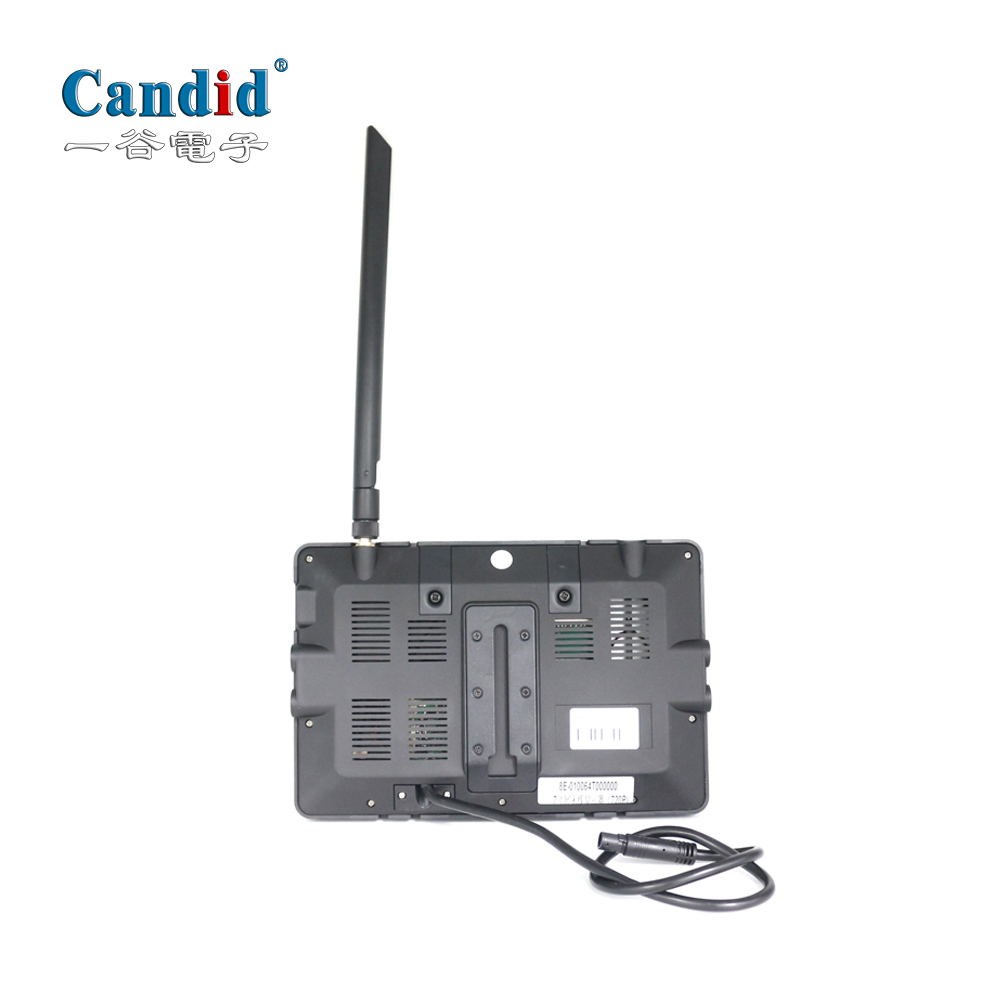

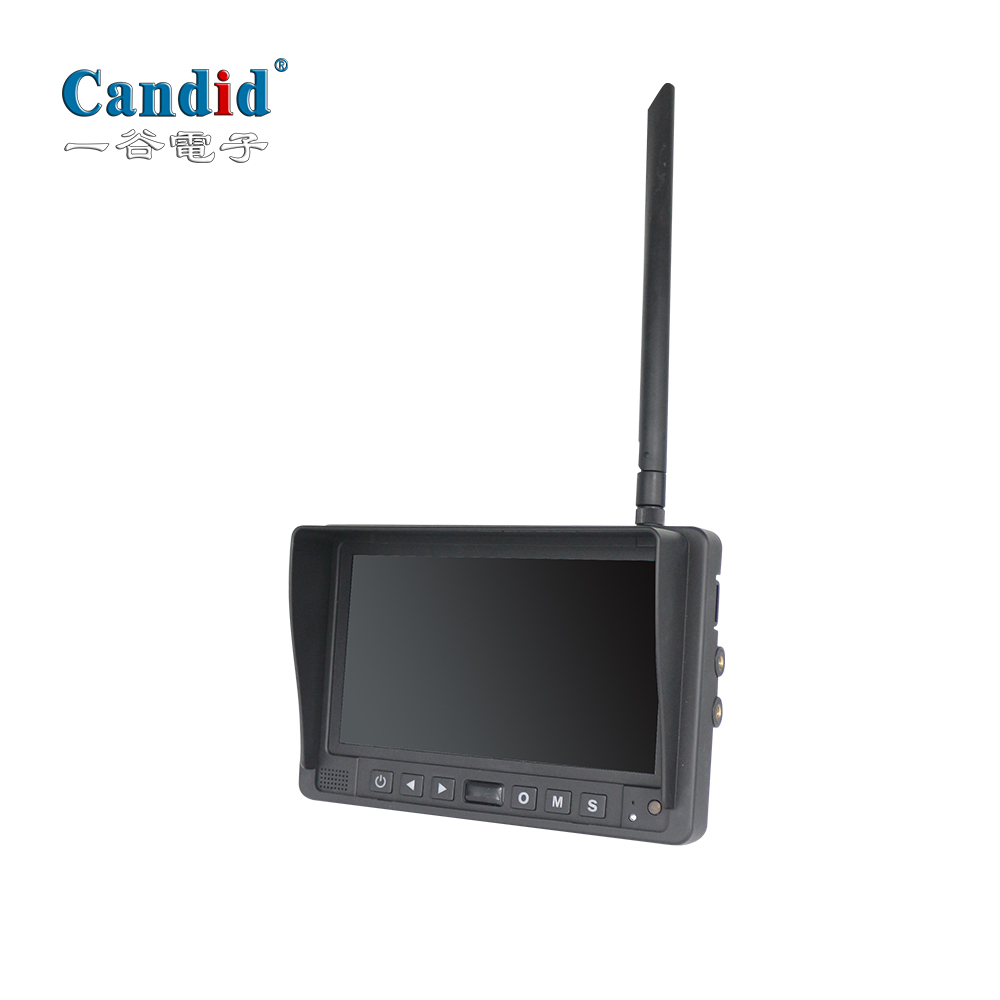

Mirror
LCD Display Size | 7" |
Resolution | 1024 x 3 (RGB) x 600 |
Contrast Ratio | 800:1 |
Brightness | 450 cd/m² |
Channels | 4CH |
Operating Frequency | 2401MHz ~ 2483MHz |
Decoding Format | H.264 |
Reception Sensitivity | -85 dBm |
Modulation | DSSS |
Latency | 150ms |
Transmission Range | 300m |
Micro SD Card Capacity | Up to 256GB |
Recording Format | AVI |
Video Standard | 720P_25Hz or 720P_30Hz |
Operating Current | Max. 420mA @ DC12V |
Power Supply Voltage | DC 8-36V |
Operating Temperature | -20℃ ~ 70℃, RH 95% |
Storage Temperature | -30℃ ~ 85℃, RH 95% |

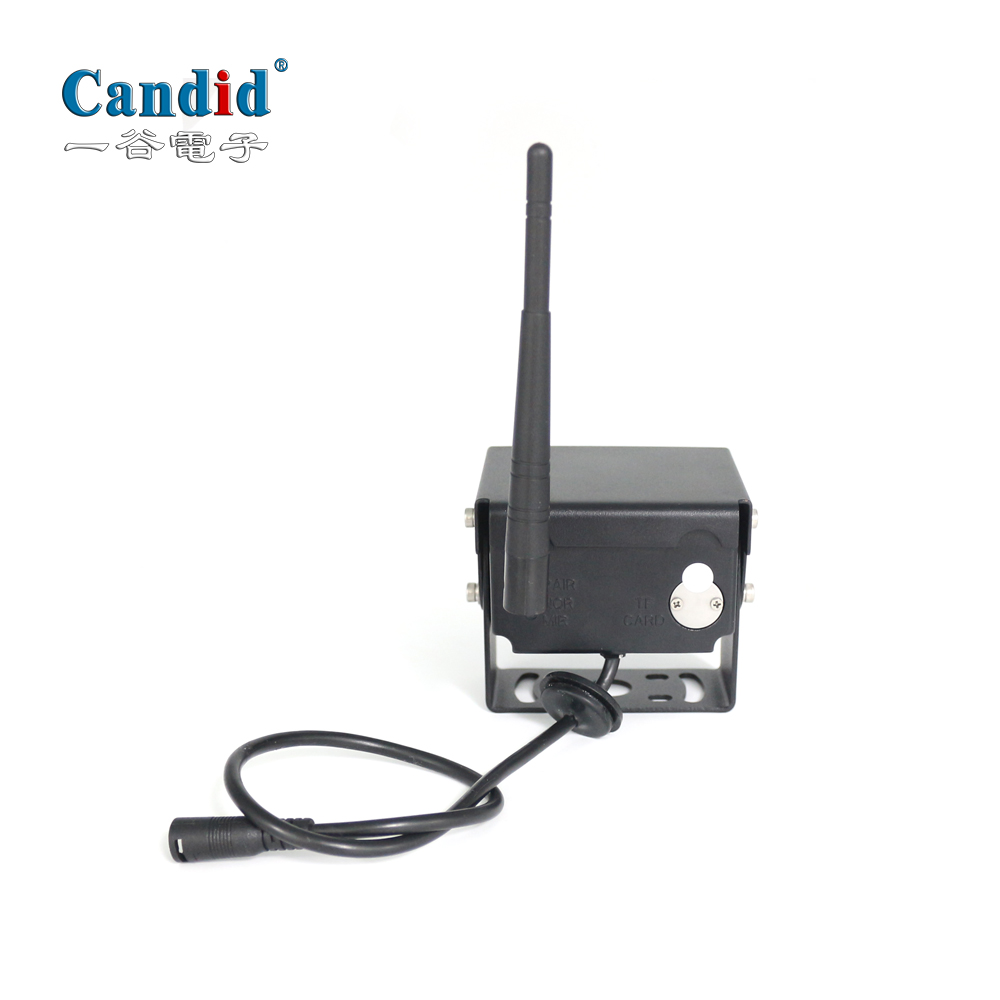

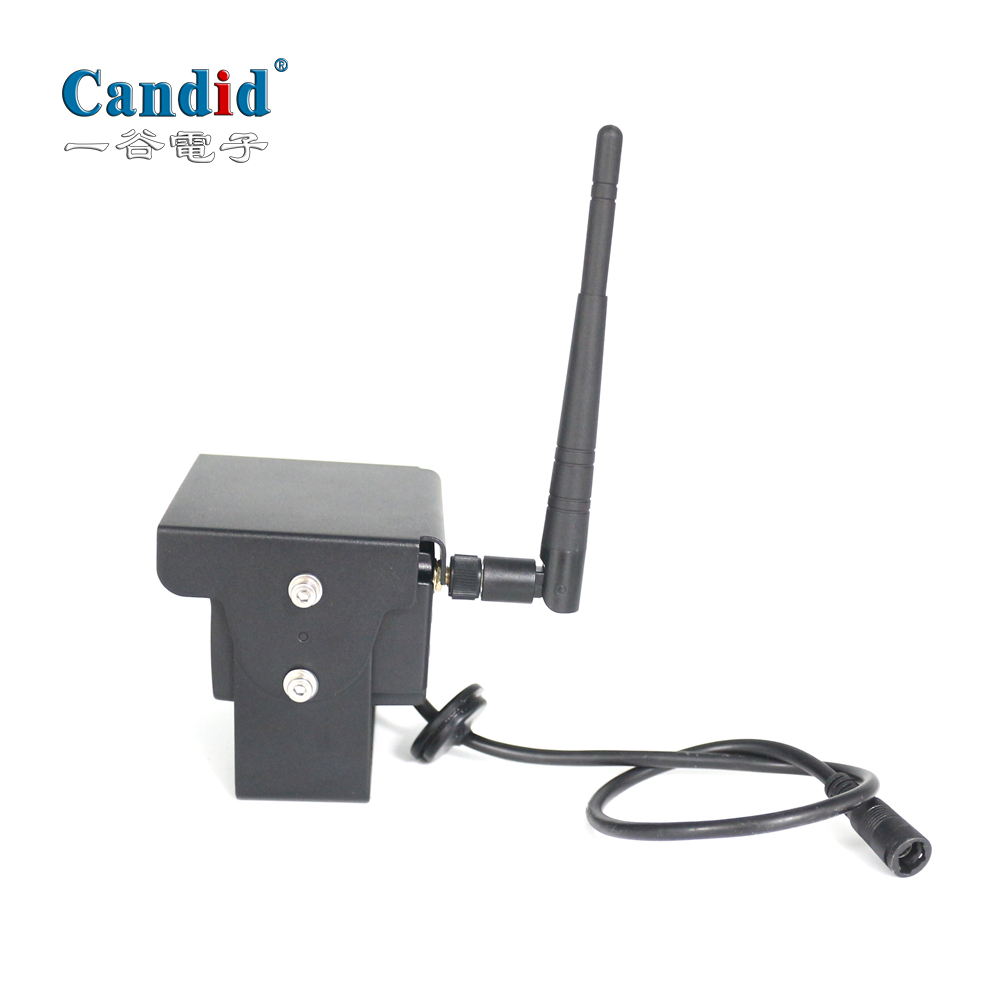

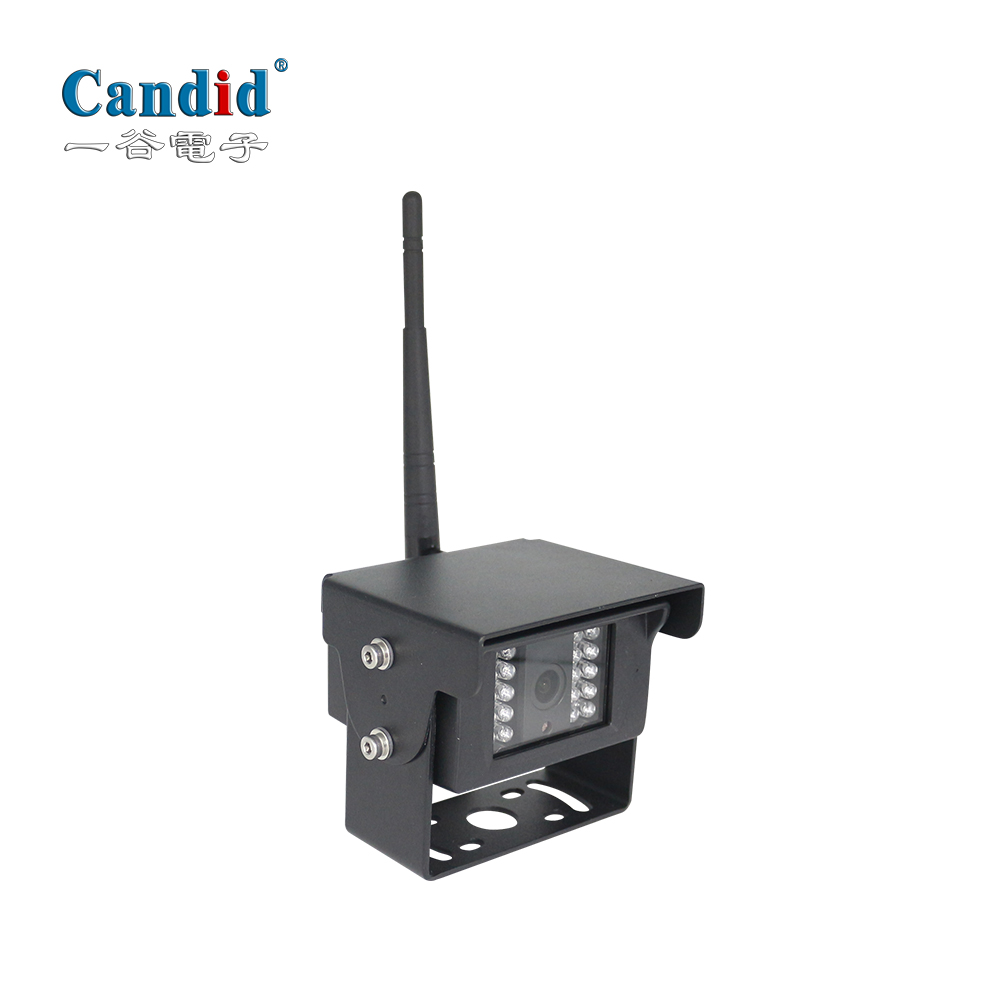

Camera
Effective Pixels | 1296(H) × 960(V) Pixels |
Pixel Size | 3 μm × 3 μm |
Resolution | 720P |
Signal System | 720P_25Hz / 720P_30Hz |
Scanning System | Progressive Scan |
Synchronization | Internal Sync |
Gamma Correction | 0.45 |
SNR | 40dB |
Dynamic Range | 77dB |
AGC/WB/BLC | Auto |
Operating Frequency | 2401MHz ~ 2483MHz |
Transmission Range | 300m |
Video Decoding | H.264 |
Transmit Power | 19 dBm |
Frequency Hopping | DSSS |
Latency | 150ms |
RF Bitrate | 12Mbps |
Night Vision Range | 6m ~ 12m |
Operating Current | Max. 190mA @ DC12V |
Power Supply Voltage | DC 6-36V |
Operating Temperature | -30℃ ~ 85℃, RH 95% |
Storage Temperature | -40℃ ~ 90℃, RH 95% |
Lens Angle | Horizontal 90°, Vertical 50° |
Applications

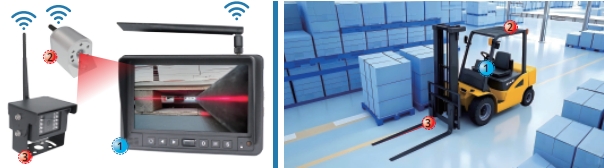

Forklift Assistance System

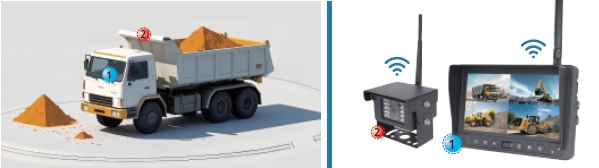

20m Trailer Wireless Reversing System
Seeder Wireless Monitoring
