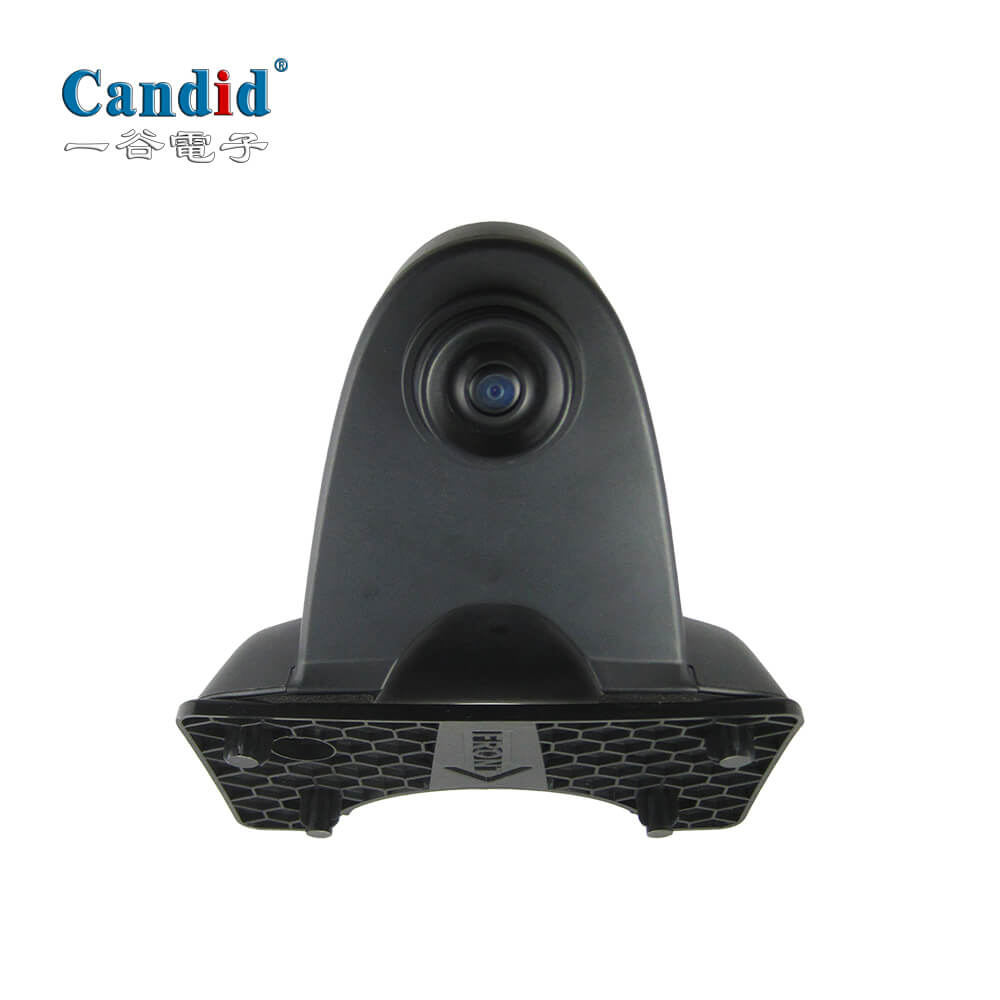

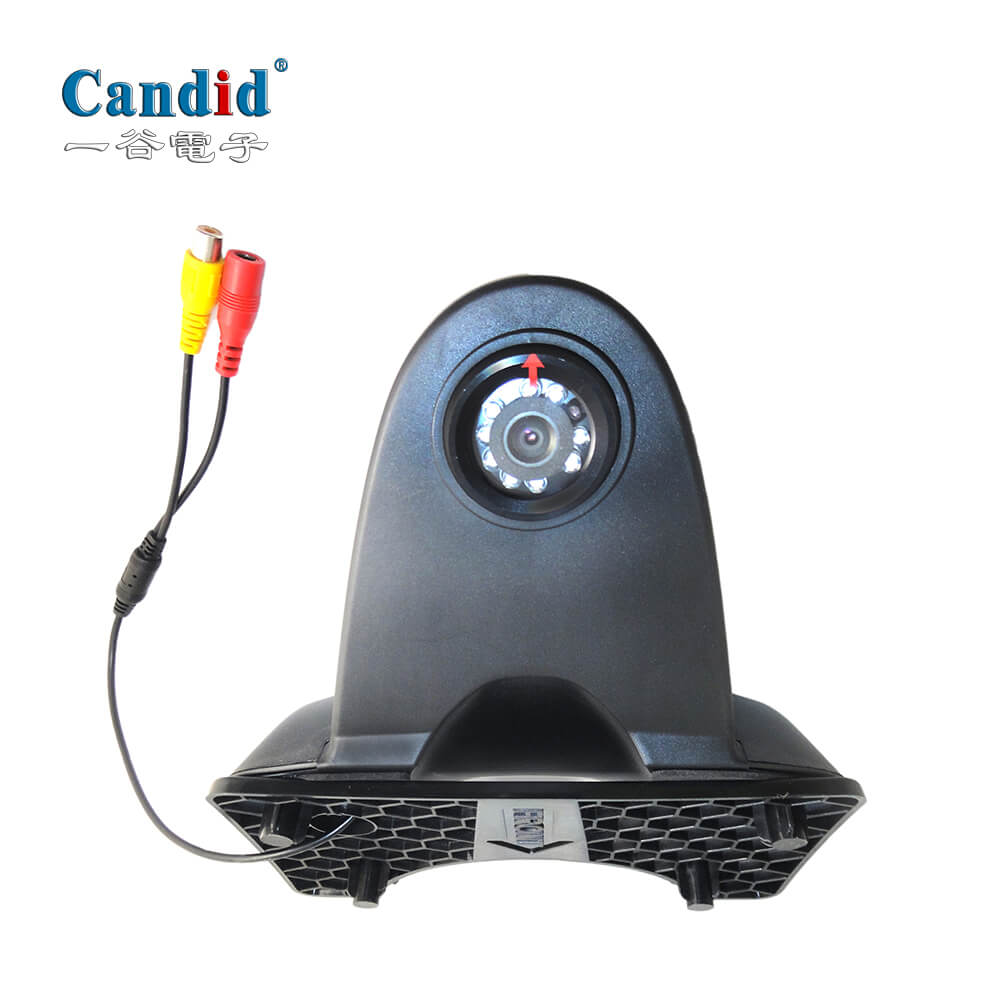

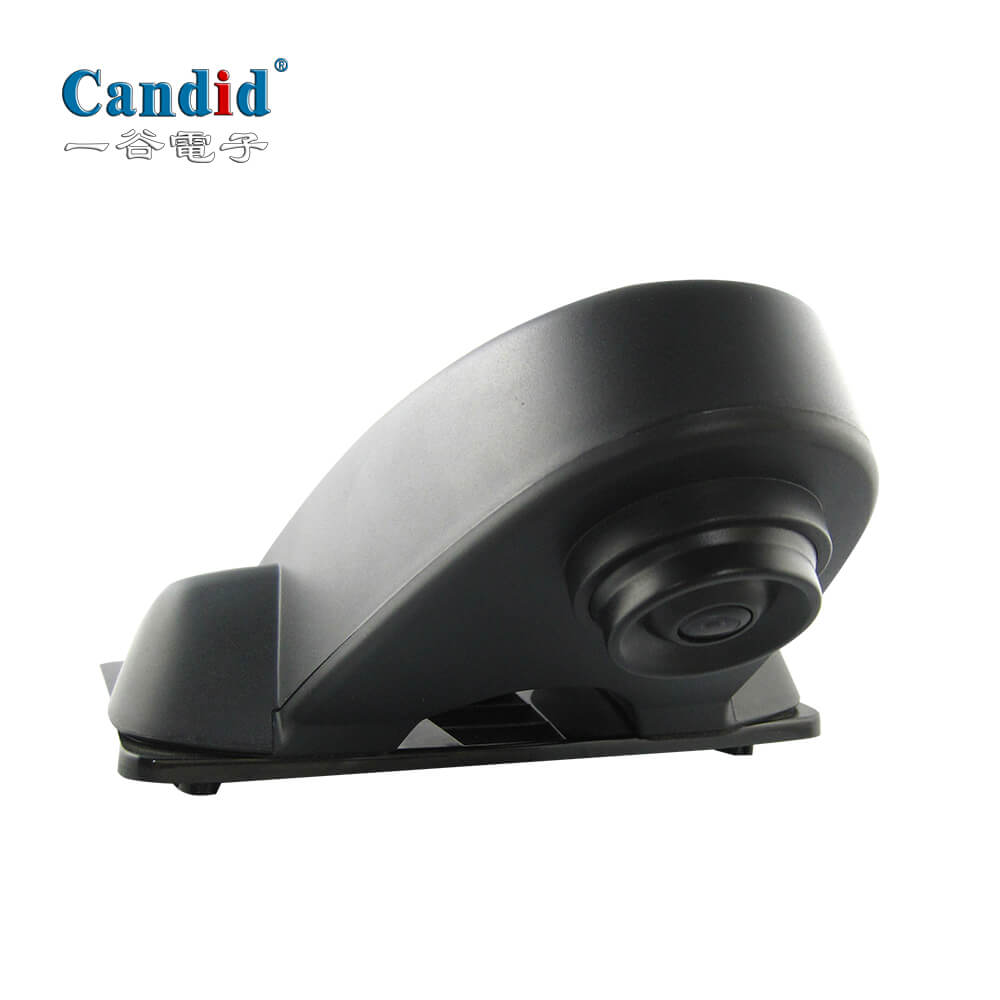

Camera for Mercedes-Benz Sprinter RV T-008

Customized developed for Mercedes-Benz Sprinter recreational vehicle, best fit installation. We welcome your inquiry.

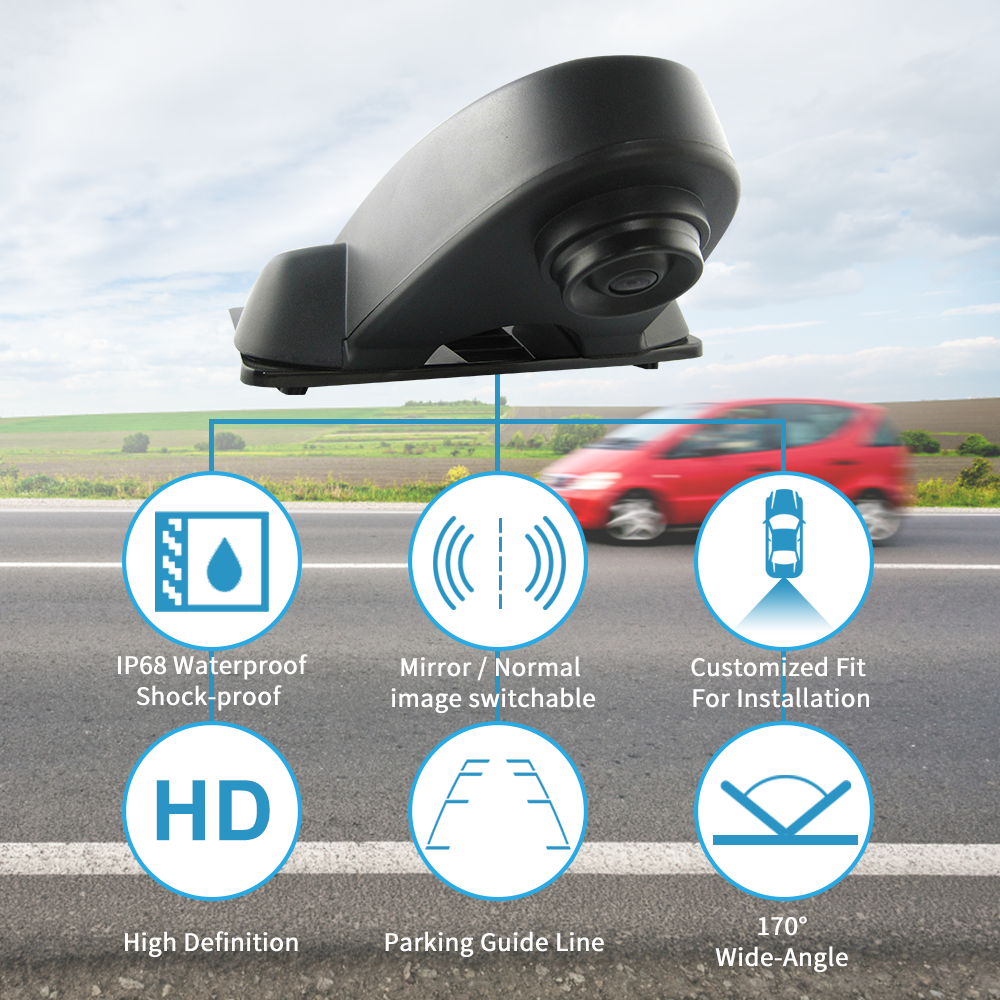

Features

1.The Housing is special design for Mercedes-Benz Sprinter, perfect match for installtion with no affect the apperance.

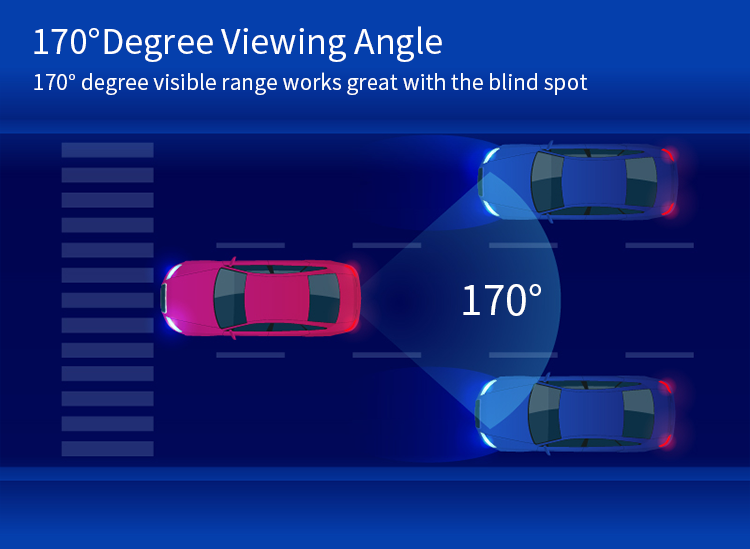

2.170 Wide Angle provides greater viewing & reduce the blind spot
3.IR night vision effect, provide more clear viewing in dark environment
4.Good performance with IP68 Waterproof & Shock-proof
5.Parking line selectable

Specifications

Image sensor Sharp CCD
TV  Mode PAL/NTSC
Image Sensor 1/3 inch 和1/4inch
Operation voltage range DC12V(10-16V)
working current 65mA±10mA
Power Consumption 0.78W@ DC12 V
Video Output 1±0.2 Vpp 75Ω
Pixsls PAL 795*595/NTSC 811*507
USEFUL PIXELS PAL 752*582/NTSC 768*494
Minimum lllomination 0.3Lux
Wide Dynamic 80dB
Signal to Noise ratio 51dB
resolution ratio 430,000
waterproofing grade IP68
white balance AUTO.
AGC AUTO.
backlight compensation AUTO.
Operation Temperature -20℃~ +70℃
Storage Temperature -40℃~+85℃

Applications

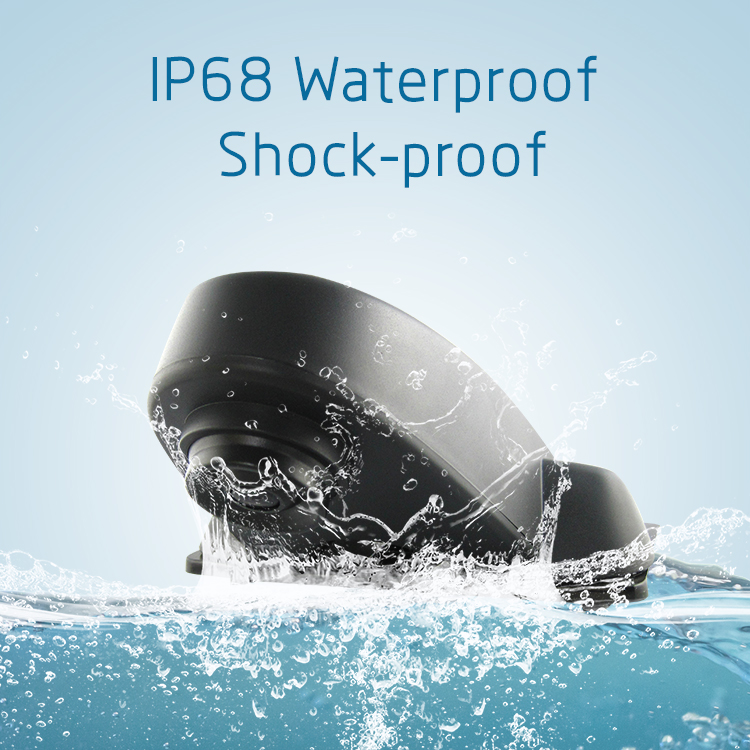

Waterproof & Shock-proof

Candid brake light rear view camera is with waterprood grade IP68 and shock-proof, have a stable working performance in all weather conditions(rainly day/rugged road ect.) that can provide a more safety driving assistance

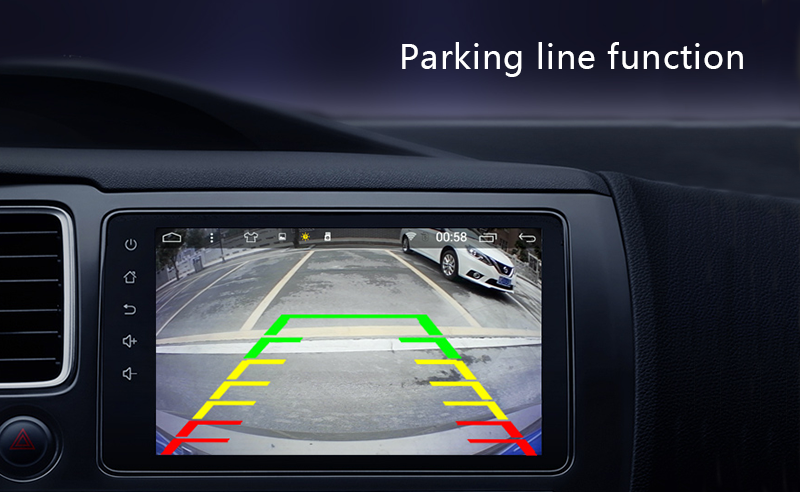

Parking line selectable
The camera supports to build in parking line for driving assistance, and it is allowed to select whether to show parking line or not during installtion. Standard parking line per sensor chip or customized the parking line is welcomed.

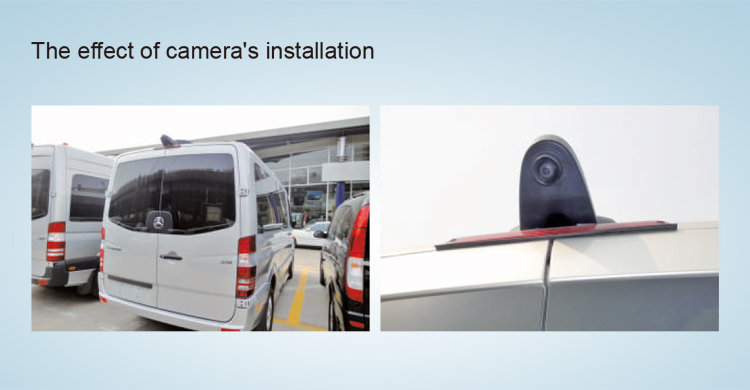

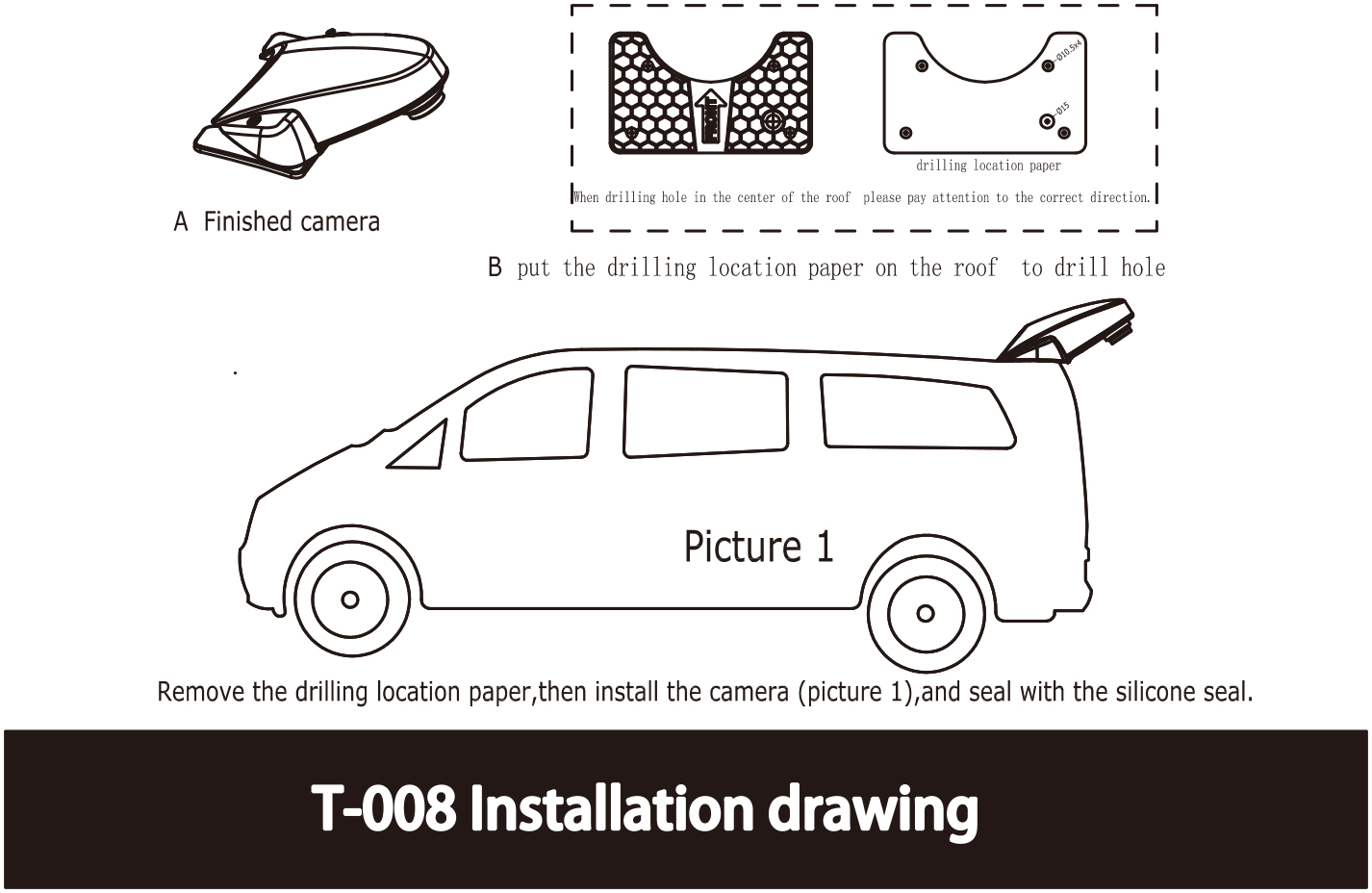

Best fit for installation

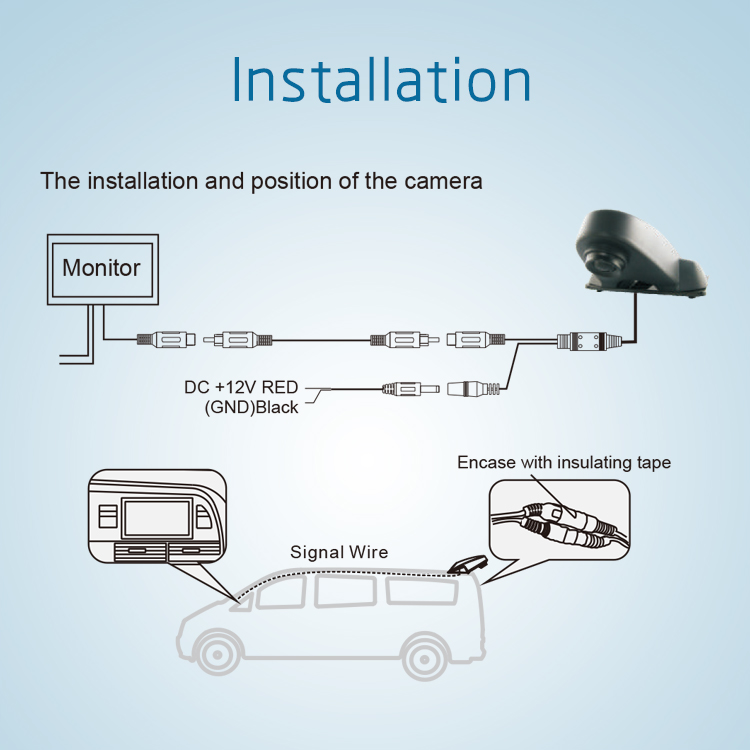

This camera is customized developed for Mercedes-Benz Sprinter that can install/replace into the original designed position with no affect the apperance, the wiring is easy and we can provide the guideline to you whenever you need.

Accessories
