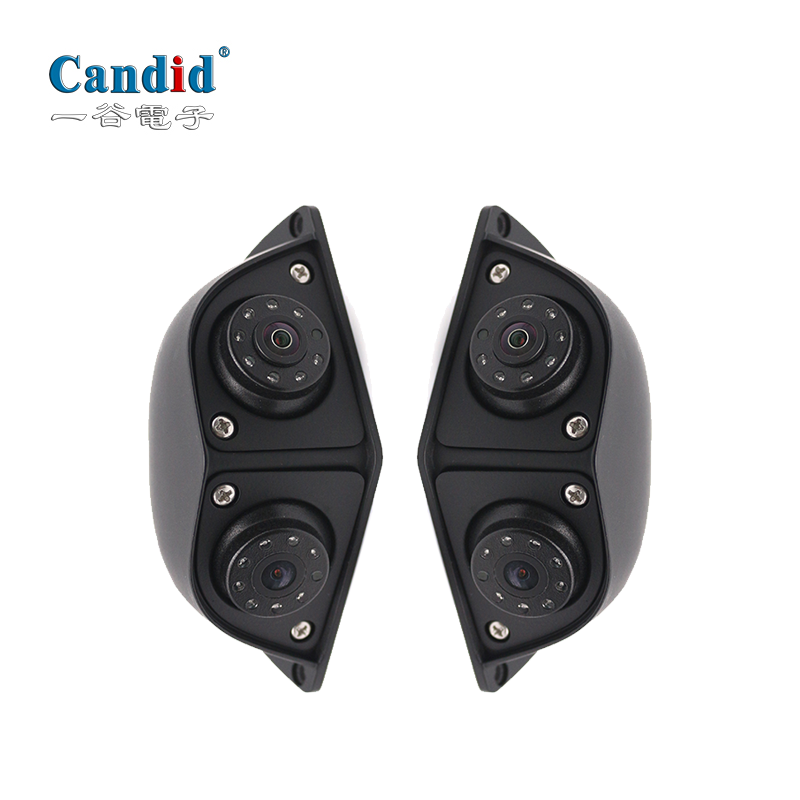

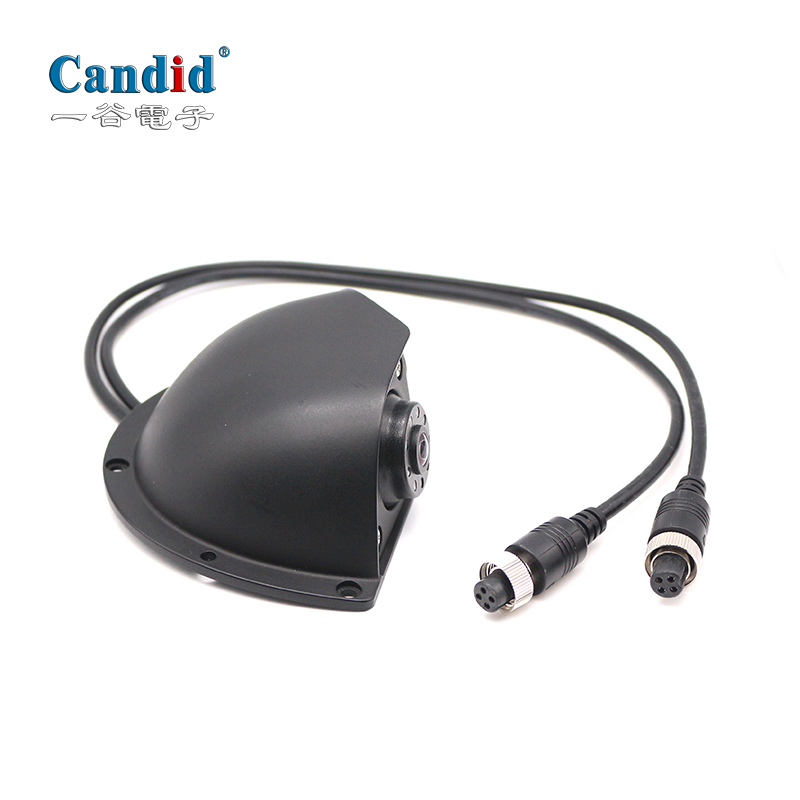

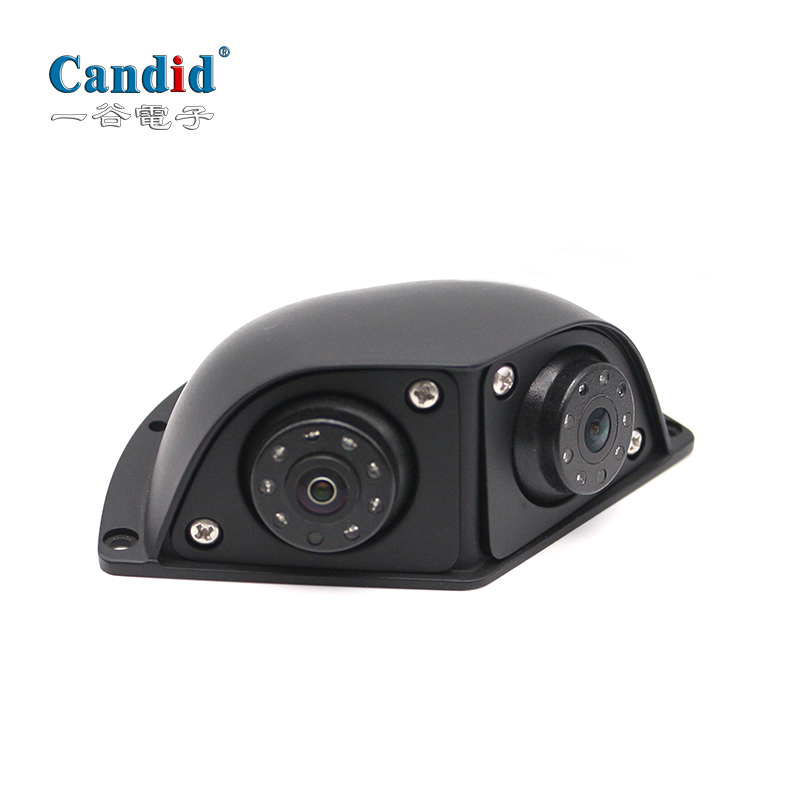

Dual lens camera T-204
Features:

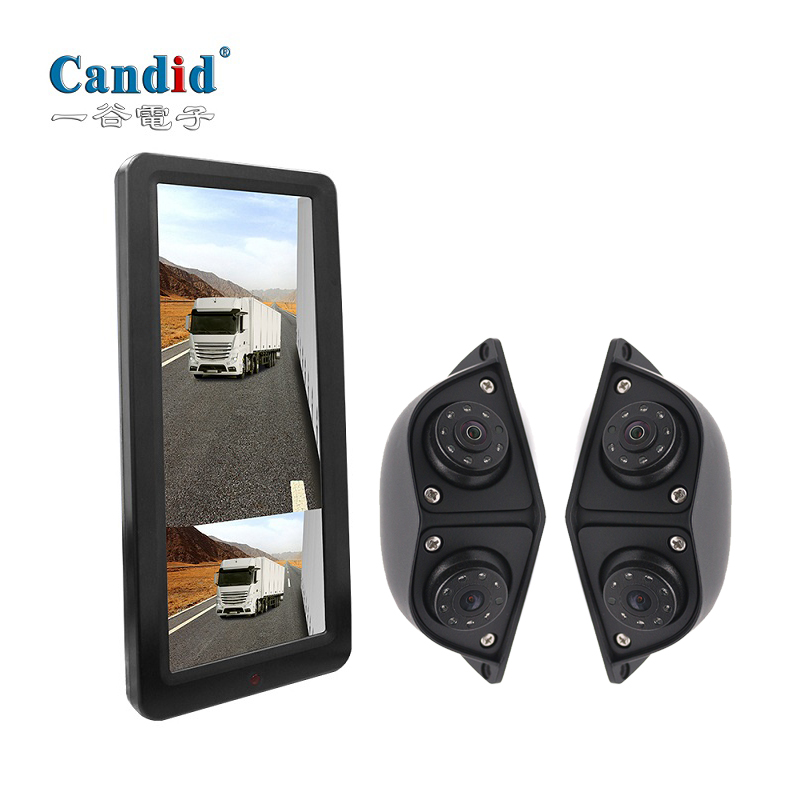

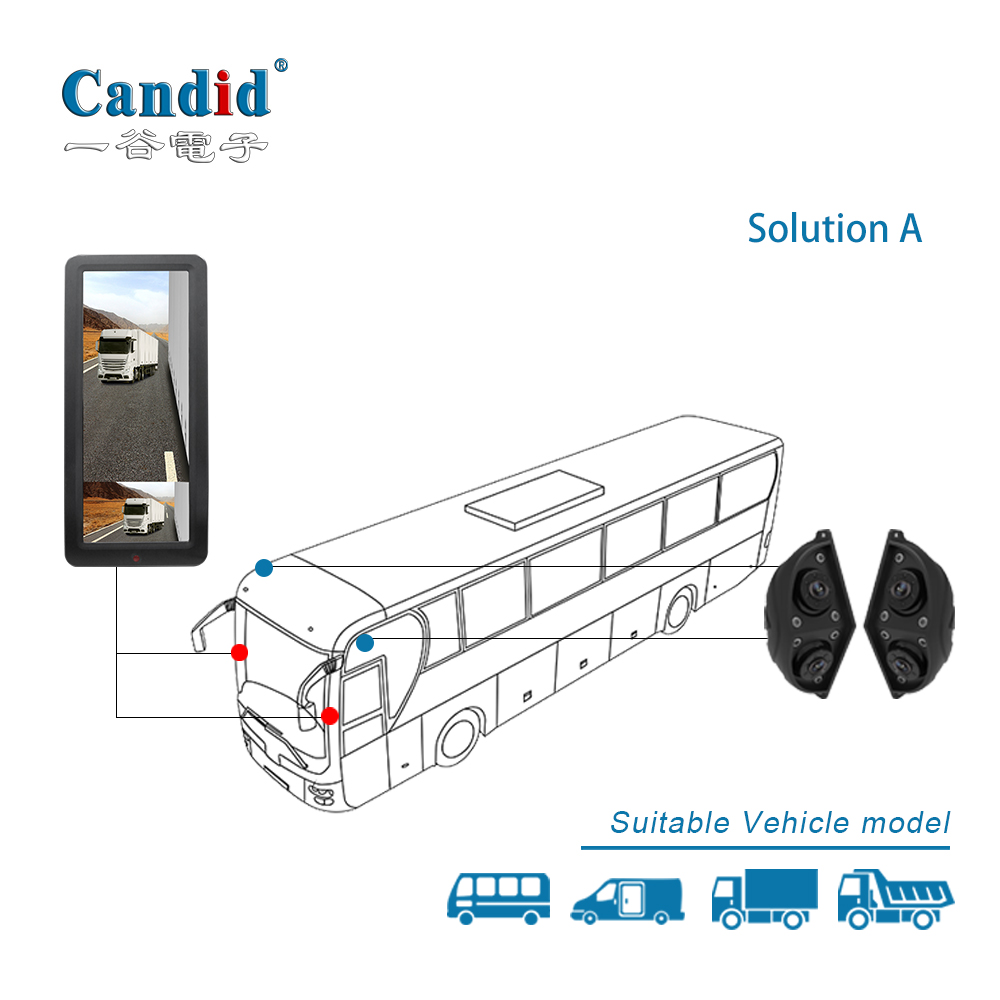

The rear view camera features a dual lens side installed camera, two different angle show you two kinds of blind area, compact camera works perfectly with the 12.3" electronic mirror monitoring system and make your driving safer.
The rear view camera features a dual lens side installed camera, two different angle show you two kinds of blind area, compact camera works perfectly with the 12.3" electronic mirror monitoring system and make your driving safer.
Features
- Super HD Starlight Night Vision,with 14 IR LED.
- Enhance visual field, improve weak light, restrain strong light.
-1080P/ 720P pixels.
-The housing is attractive design.
- Minimum Lomination 0.01Lux, See Clearly Even in Complete Darkness.
-IP68 waterproof.
-Two different angle Horizontal 74°/56°,reduce the blind area
- Enhance visual field, improve weak light, restrain strong light.
-1080P/ 720P pixels.
-The housing is attractive design.
- Minimum Lomination 0.01Lux, See Clearly Even in Complete Darkness.
-IP68 waterproof.
-Two different angle Horizontal 74°/56°,reduce the blind area
Specifications
| sensor | SONY IMX307 （AHD） |
| Image Sensor | 1/2.8 inch |
| Power Consumption | DC12V(7.5-16V) |
| Video Output | 1.3±0.2Vpp 75Ω |
| USEFUL PIXELS | 1280*1080 |
| minimum illumination | 0.01Lux |
| Wide Dynamic | 95dB |
| Resolution ratio | 1080P |
| Gamma value | 0.45 |
| Lens angle | Horizontal 74°/56° |
| Waterproofing grade | IP68 |
| white balance | auto |
| backlight compensation | auto |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |

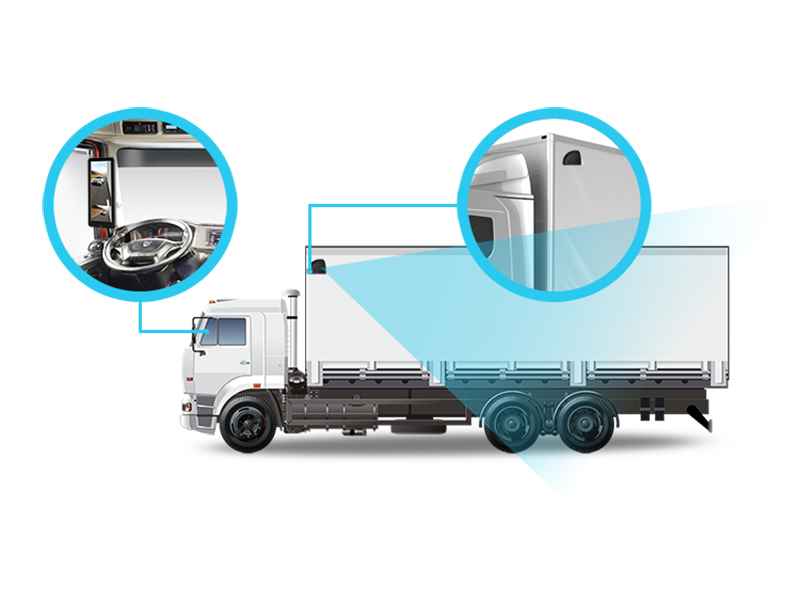

Applications
