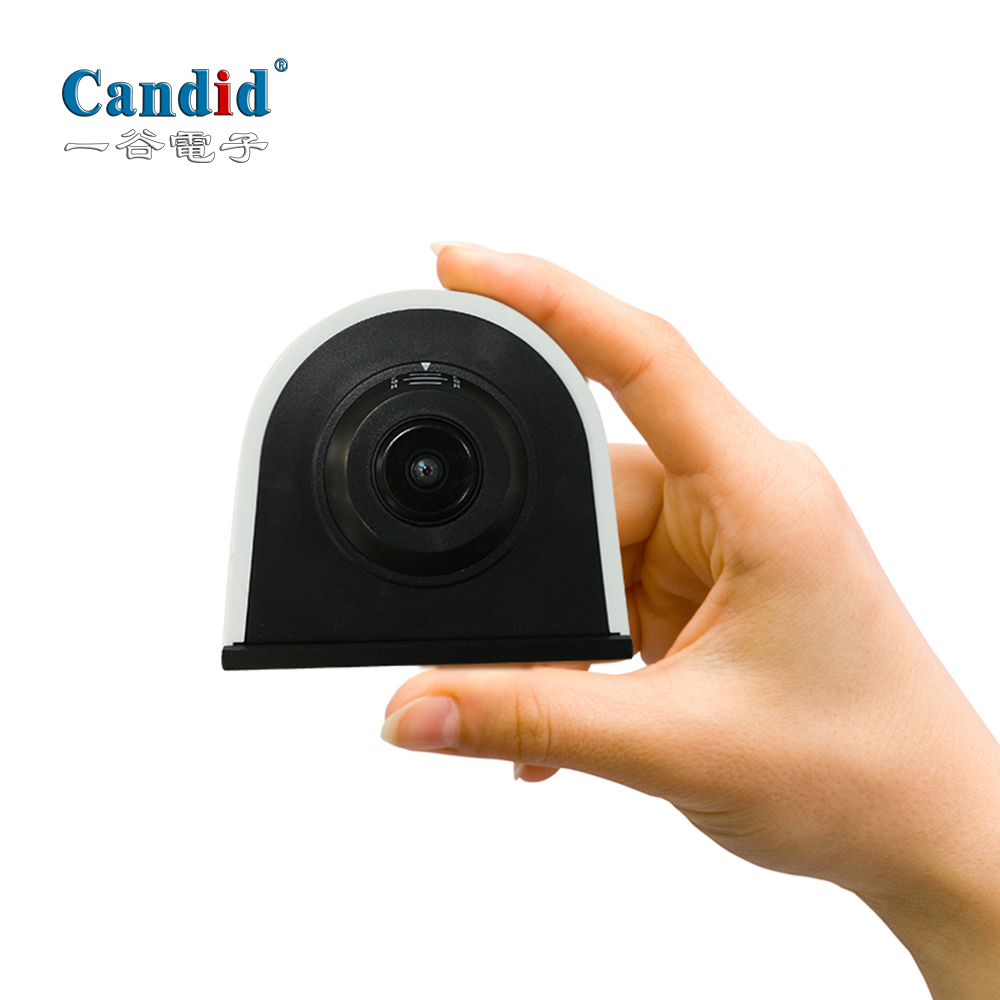

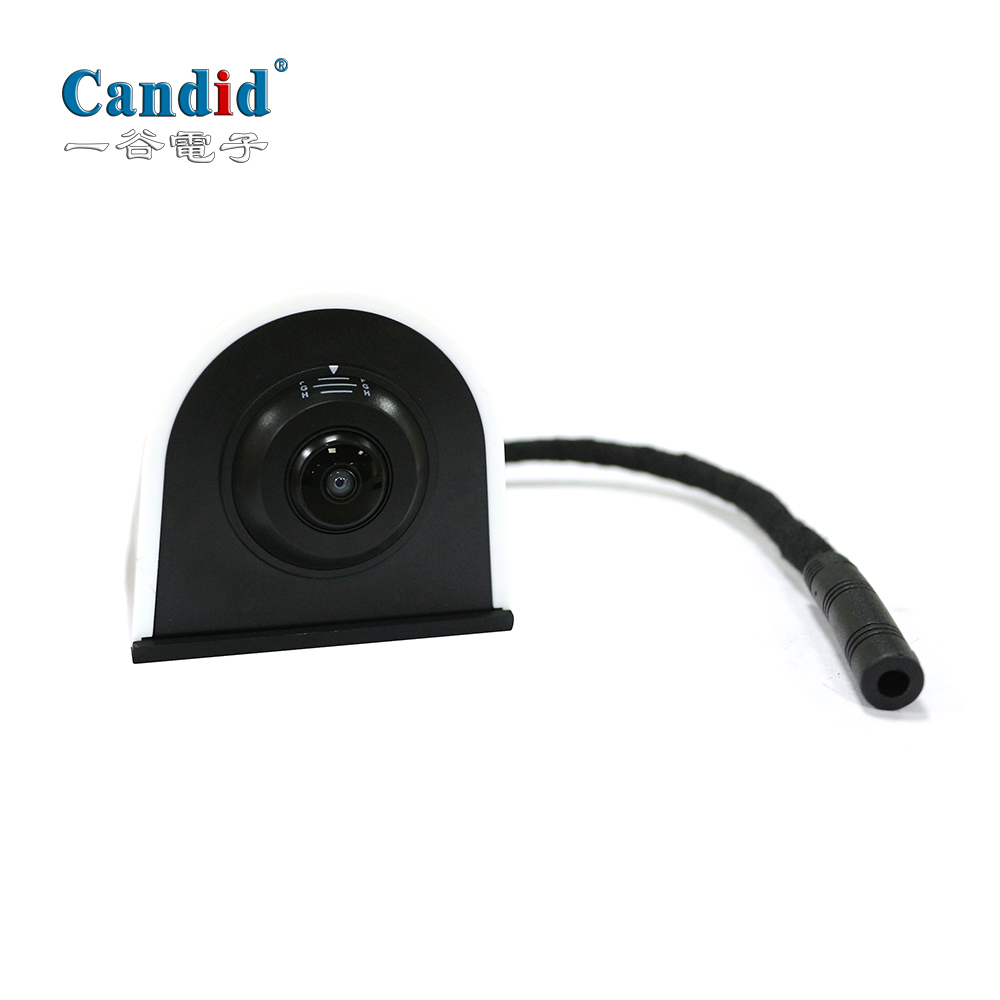

Camera T-145
Side View Customized Design ultra wide angel view camera
Features
Feature:
sony side view cameras T-145 with customized design for bus & truck

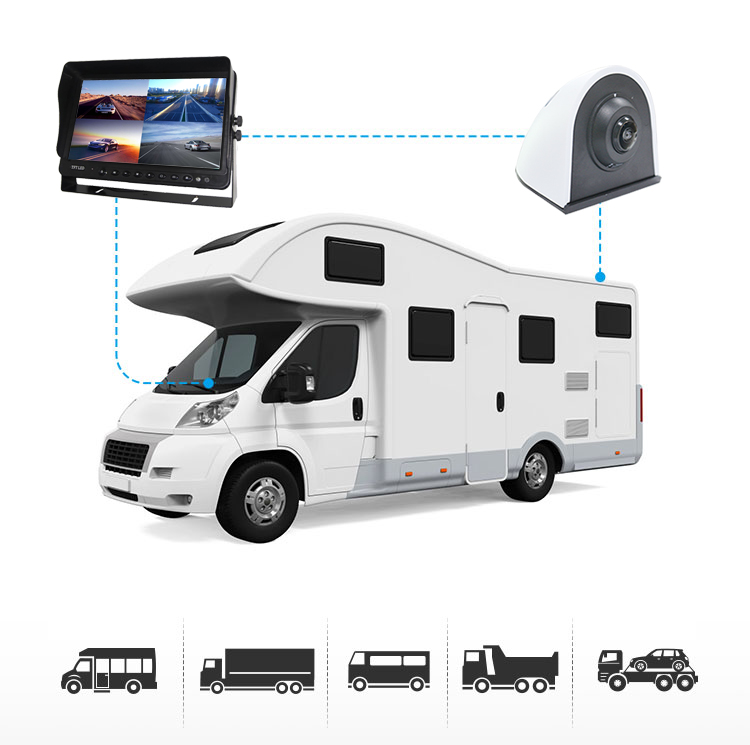

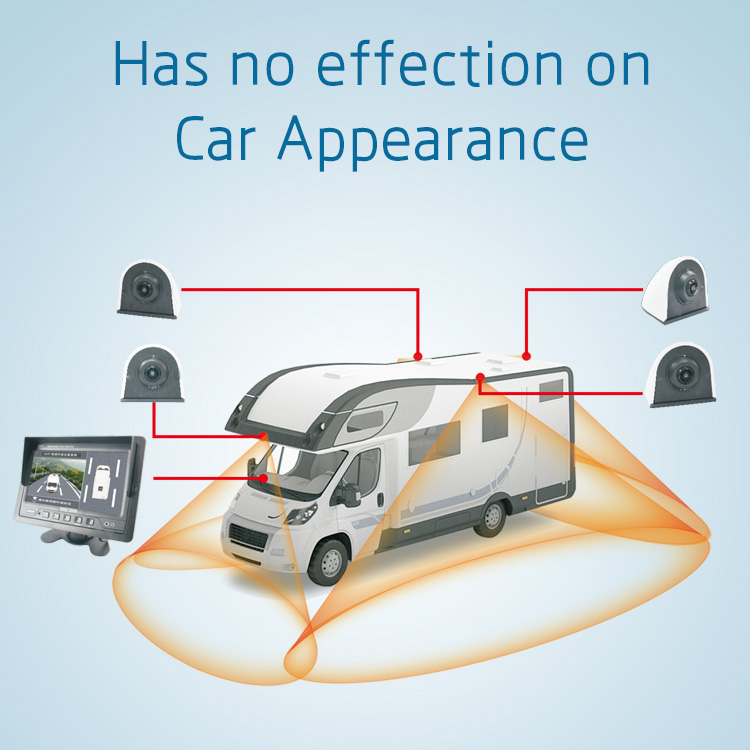

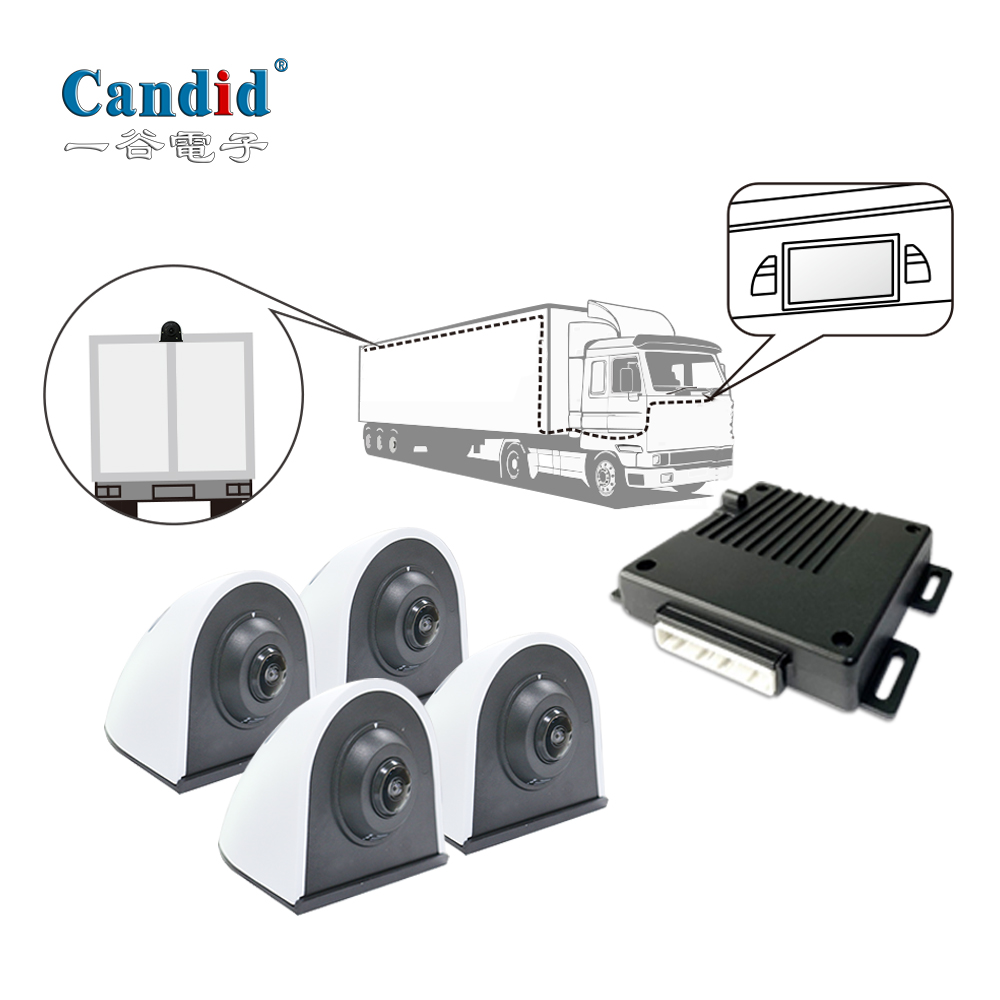

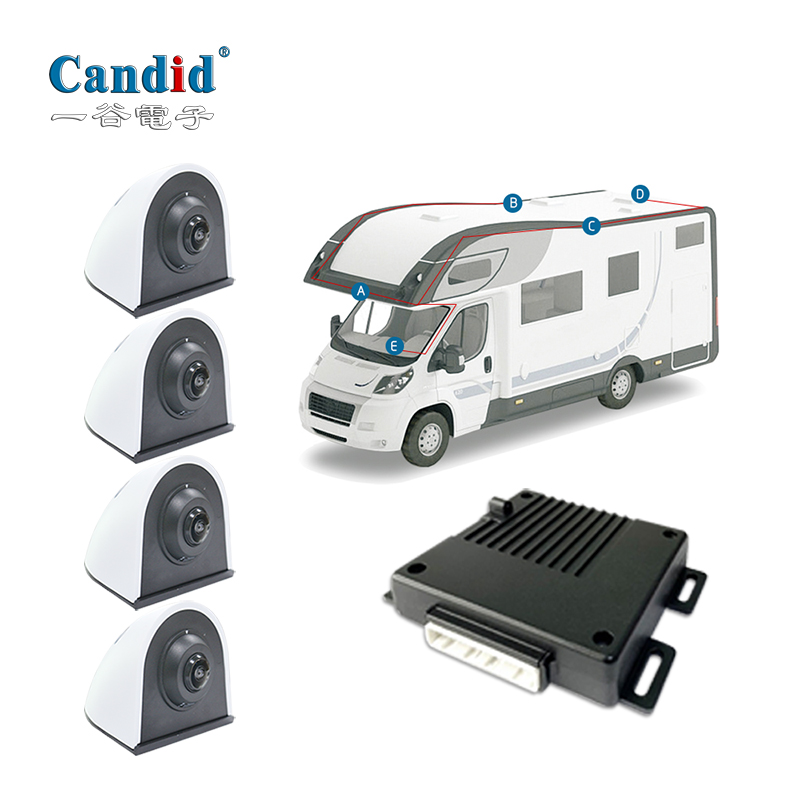

Candid/OEM big car camera, can install in front, rear, left, right side
sony side view cameras T-145 with customized design for bus & truck
Candid/OEM big car camera, can install in front, rear, left, right side
Specifications
| Image sensor | Sharp CCD |
| TV Mode | PAL/NTSC |
| Image Sensor | 1/3 inch or 1/4inch |
| Operation voltage range | DC12V(10-16V) |
| working current | 65mA±10mA |
| Power Consumption | 0.78W@ DC12 V |
| USEFUL PIXELS | PAL 752*582/NTSC 768*494 |
| Minimum lllomination | 0.3Lux |
| Wide Dynamic | 80dB |
| Signal to Noise ratio | 51dB |
| resolution ratio | 430,000 Pixsls/ 370,000Pixsls |
| Gamma value | 0.45 |
| camera angle | Max 150 |
| waterproofing grade | IP67 |
| white balance | Auto |
| Backlight compensation | Auto |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
