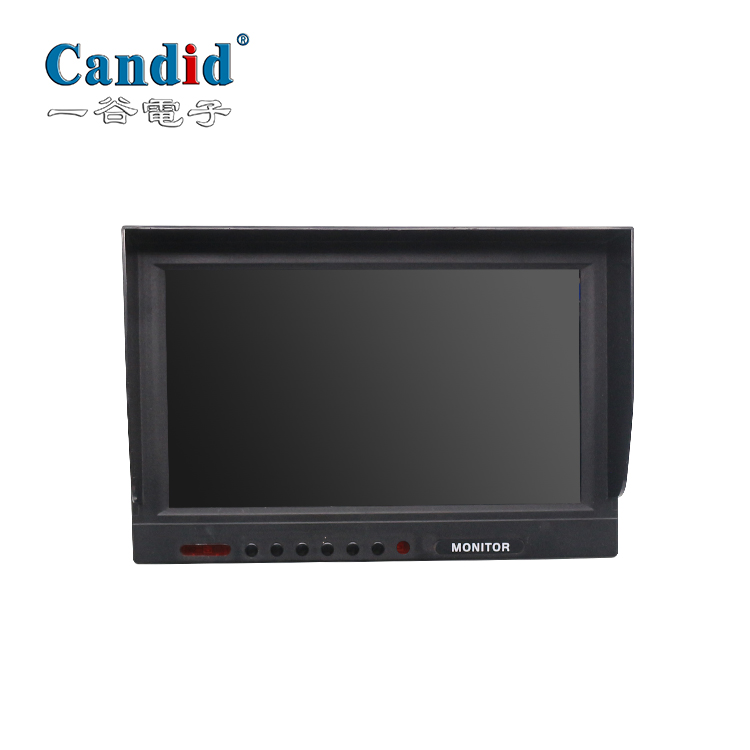

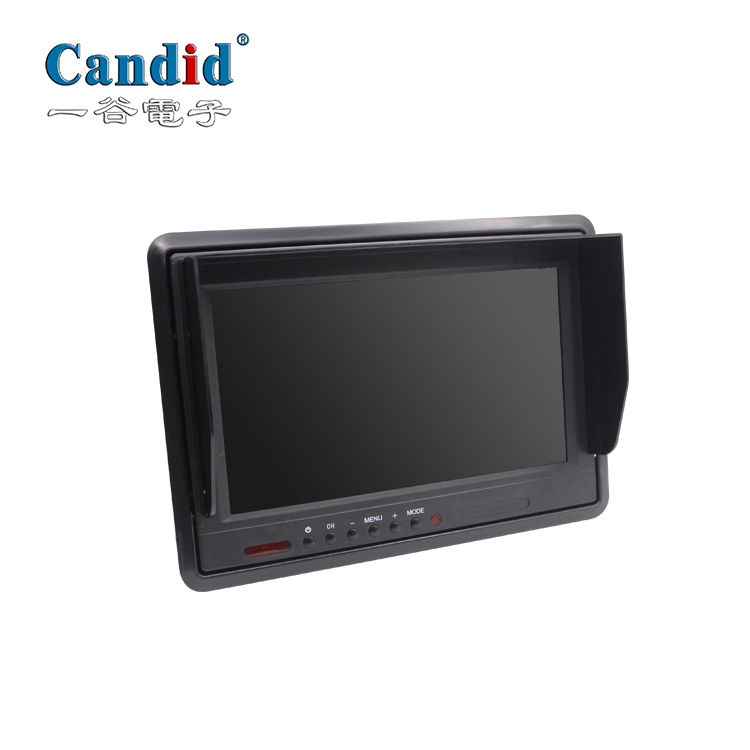

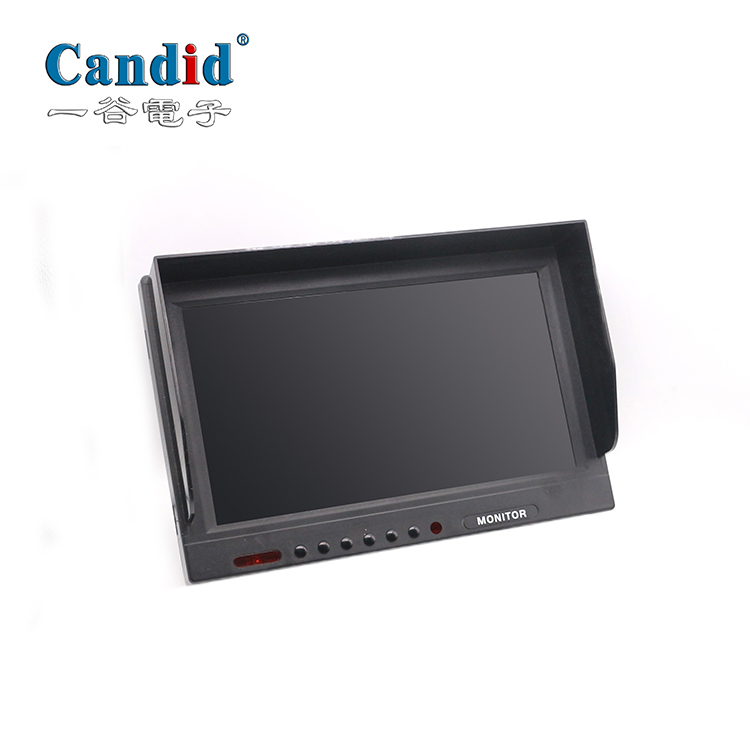

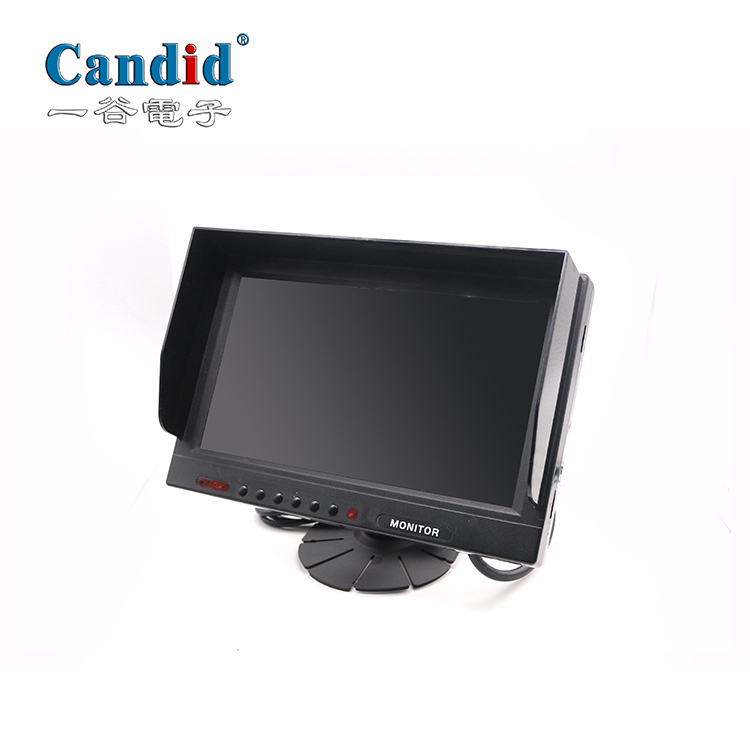

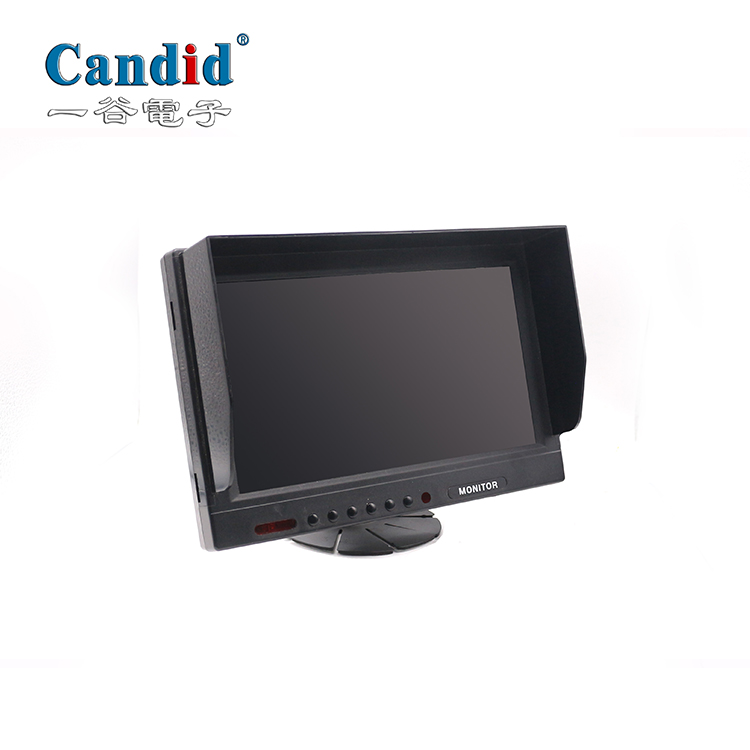

9-inch excavator four-channels monitoring system

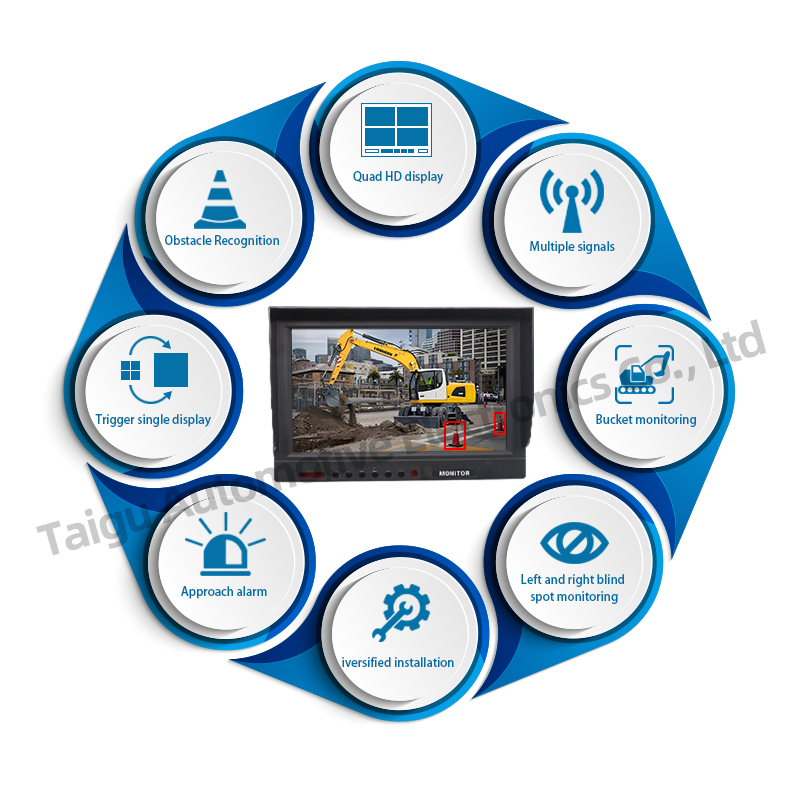

Features
①Quad HD display
Support 1~4 channels to display simultaneously, high-definition quality;
②Multiple signals
Support AHD 1080P, AHD 720P signal formats, and compatible with CVBS signals;
③Bucket monitoring
Monitor the bucket throughout the process to ensure safe excavation and transportation of materials;
④Left and right blind spot monitoring
Monitor the left and right sides of the excavator at the same time to avoid collision with obstacles when the machine is swinging;
⑤Obstacle Recognition
Automatically identify obstacles such as people, vehicles, and roadblocks behind the excavator;
⑥Approach alarm
When the distance between the excavator and the rear obstacle is too close, an alarm sounds to remind the driver to pay attention to safety;
⑦Trigger single display
The trailer's forward and backward movements, bucket movement, and body rotation can all trigger the screen to display a specific image;
⑧Diversified installation
1. Nested installation, matching the original car OEM installation effect;
2. Bracket installation, suitable for simple after-installation, the bracket can be fixed by screwing/3M adhesive tape;
Specifications
| Video input | AHD signal | Display ratio | 16:9 |
| Display mode | 4 channels | Voltage range | DC10~32V |
| Sceen Size | 9inch | Power | 5.0w |
| TV mode | PAL/NTSC | Camera power supply | DC10~12V |
| Screen pixels | 1024(w)*600(H) | Operating temperature | -20℃~+70℃ |
Application

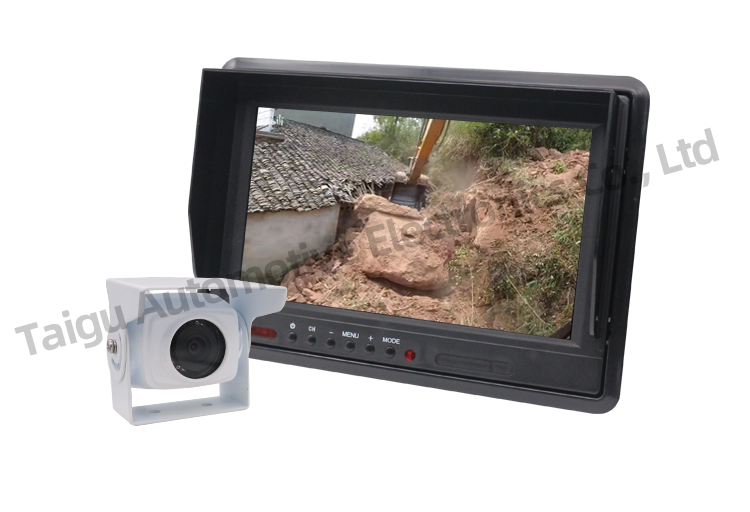

Bucket monitoring

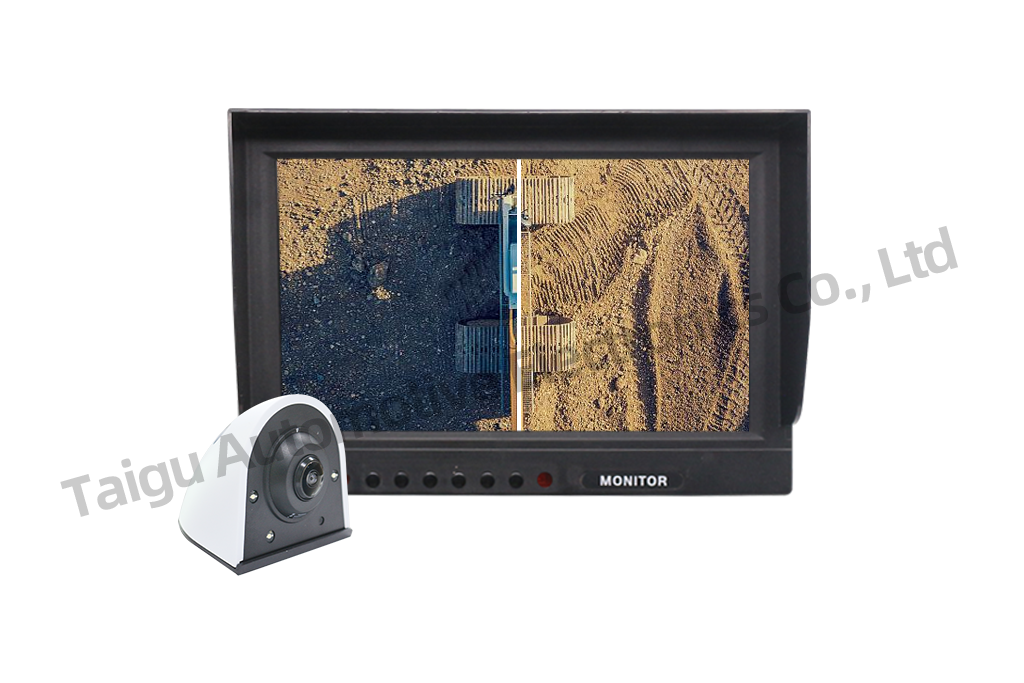

Left and right blind spot monitoring

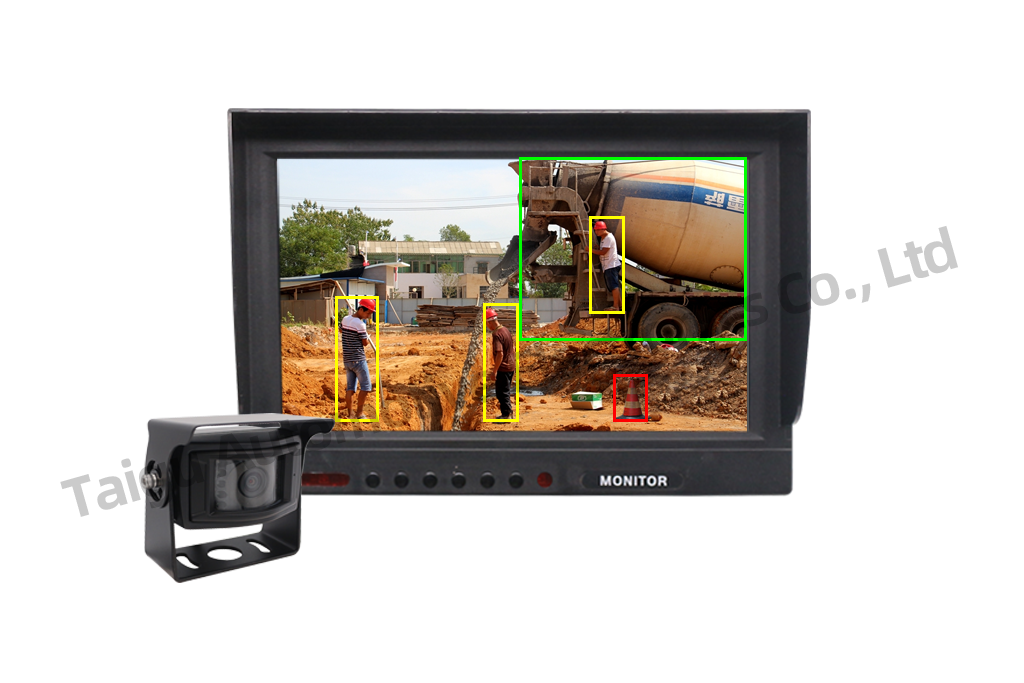

Obstacle Recognition

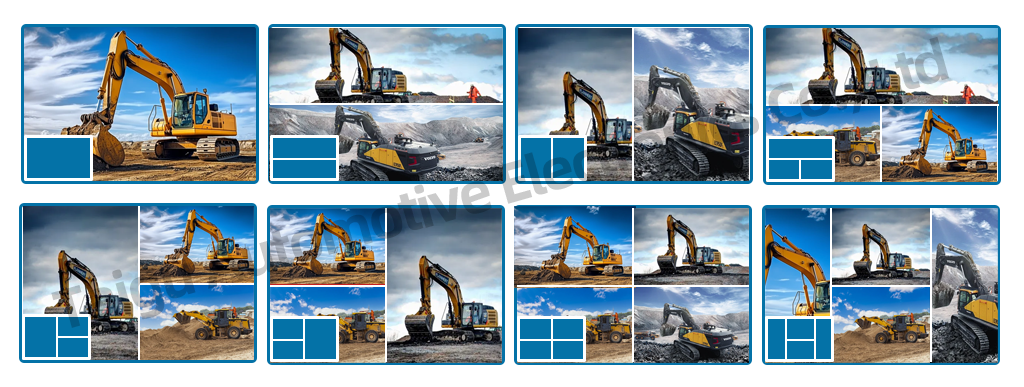

Multiple display modes

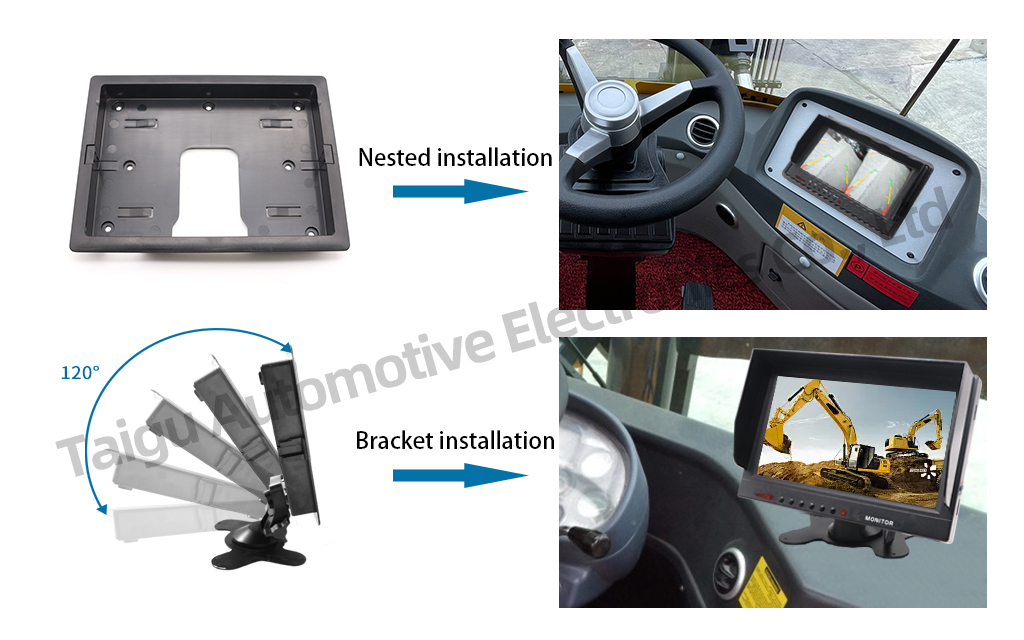

Various installation methods
1.Nested installation, matching the original car OEM installation effect;
2.Bracket installation, suitable for simple installation, the bracket can be fixed by screwing/3M adhesive.
