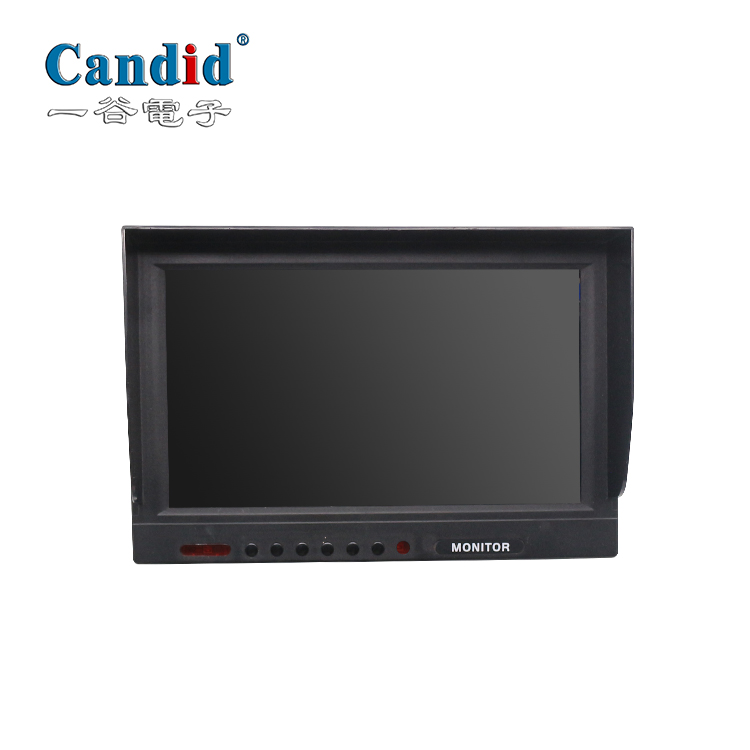

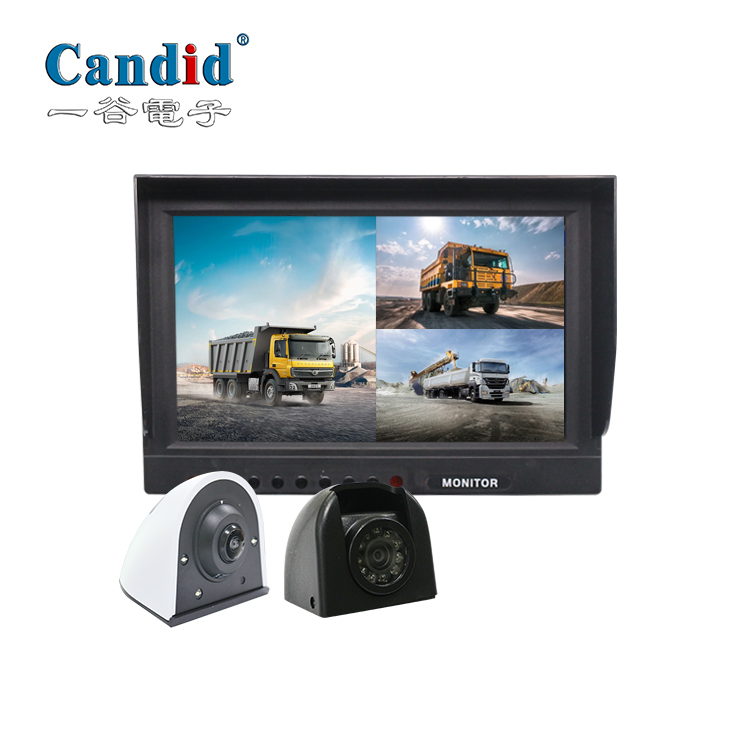

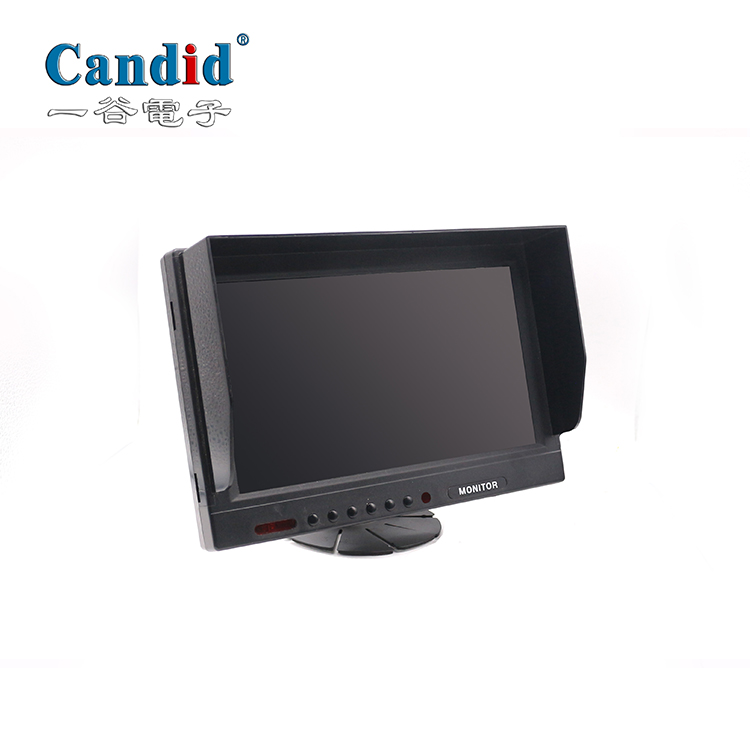

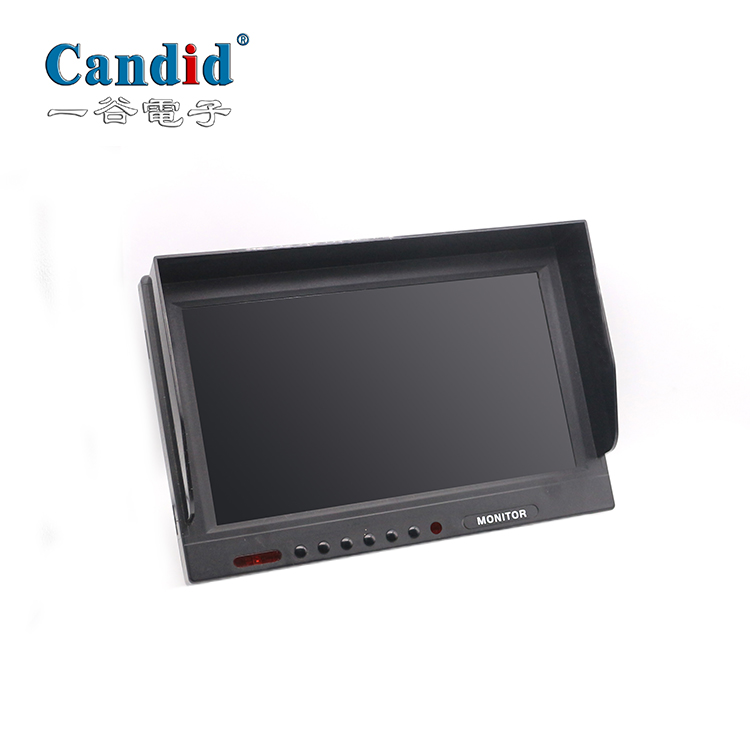

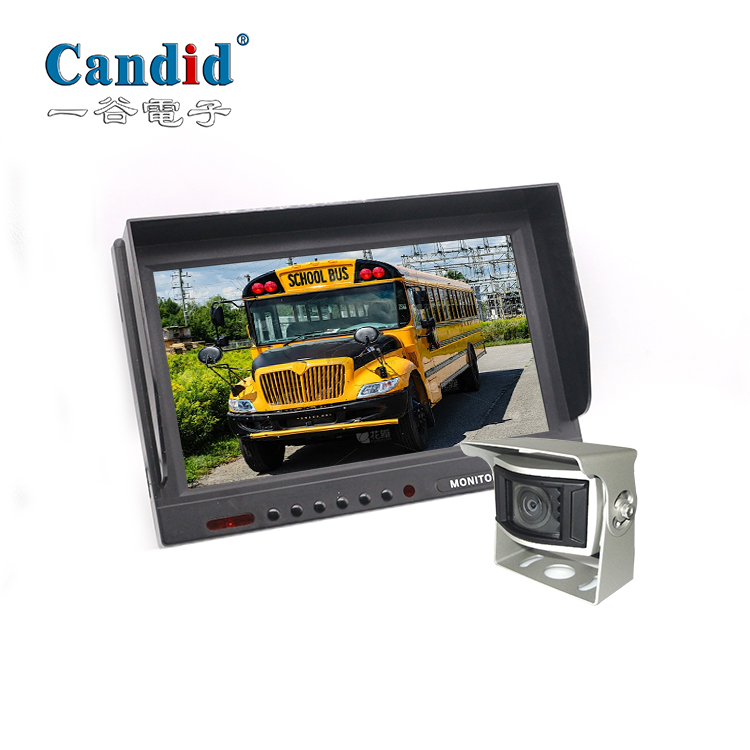

Commercial vehicle display

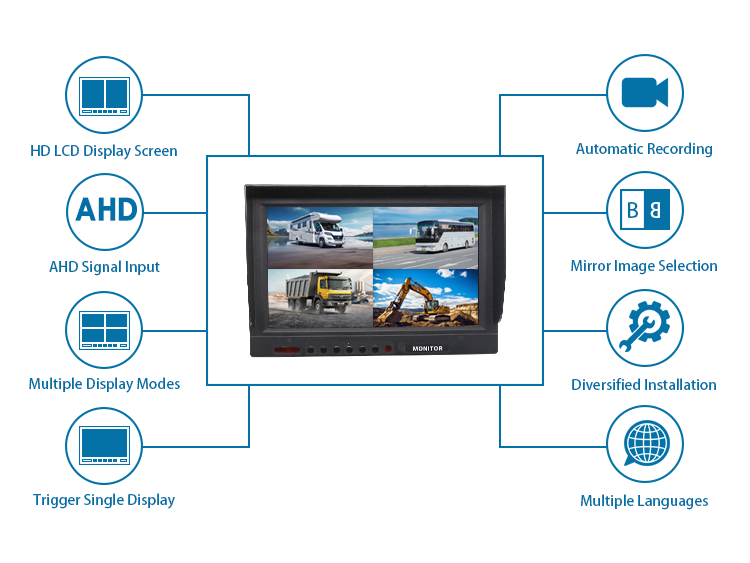

Features
①High-definition LCD display
High-definition LCD display;
②AHD signal input
Supports AHD 1080P, AHD 720P signal formats, and compatible with CVBS signals;
③Multiple display modes
Supports single screen, two-split, three-split, four-split
④Trigger single display
Trigger single display with a button, switch to single screen display;
⑤Automatic recording
Automatically loop recording to ensure that the recording is not interrupted and ensure driving safety;
⑥Mirror selection
The screen can be flipped up and down, and the mirror image and the original image can be switched
⑦Diversified installation
1. Nested installation, matching the original car OEM installation effect;
2. Bracket installation, suitable for simple after-installation, the bracket can be fixed by screwing/3M adhesive tape;
⑧Multi-language
197 national languages can be customized
⑨Sunshade light-blocking design
The design of the sunshade effectively avoids screen reflection, and the screen can still be seen clearly under the scorching sun;
Specifications
| Video input | AHD signal | Display ratio | 16:9 |
| Display mode | 1~4 screens displayed on the same screen | Voltage range | DC10~32V |
| Screen size | 7 inches/9 inches optional | Power consumption | 5.0w |
| Standard | PAL/NTSC | camera power supply voltage | DC10~12V |
| Screen pixels | 1024(w)*600(H) | Working temperature | -20℃~+70℃ |
