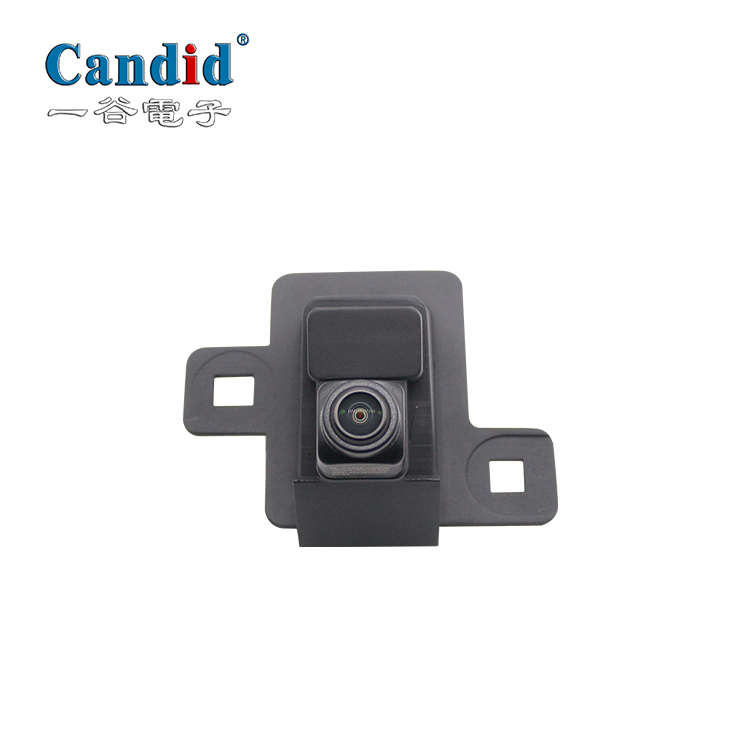

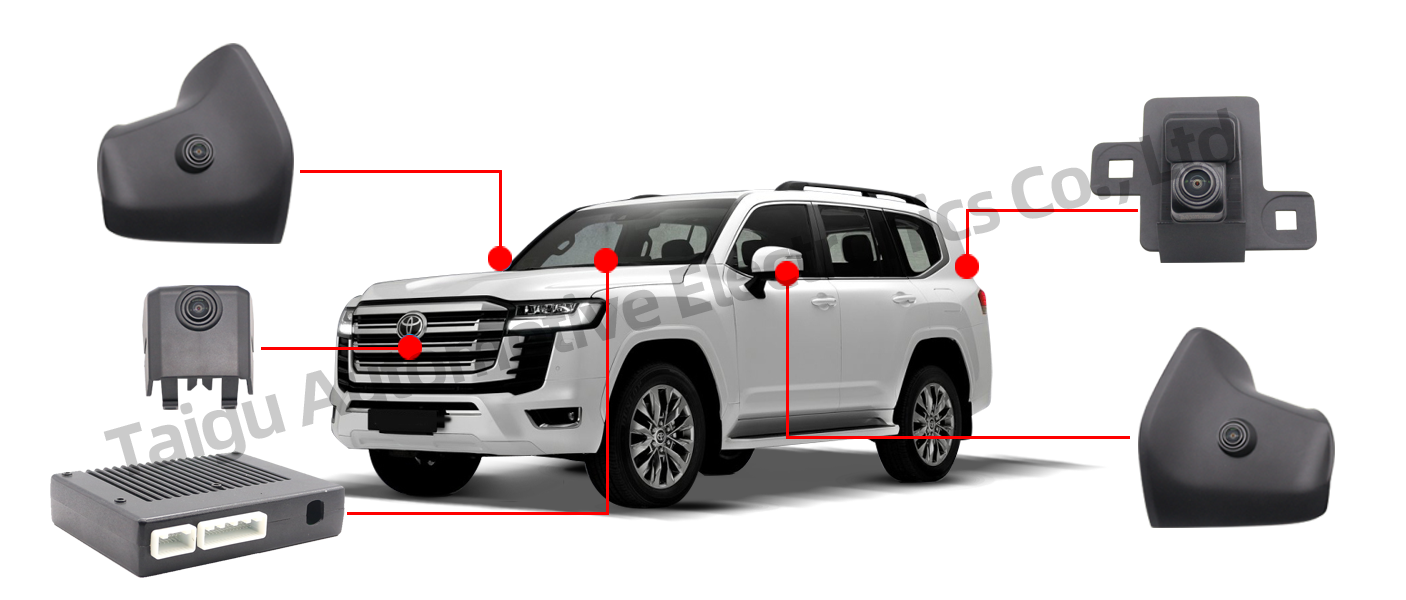

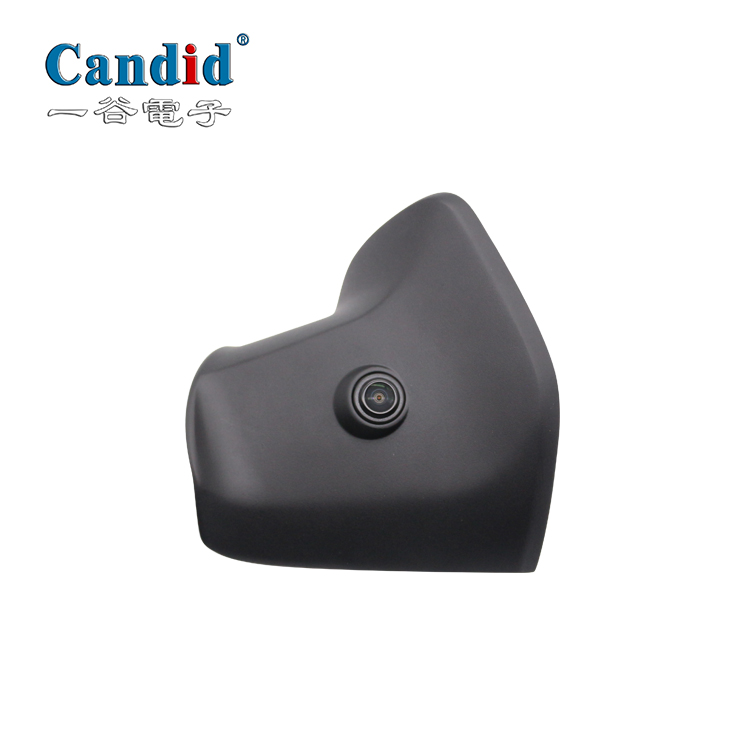

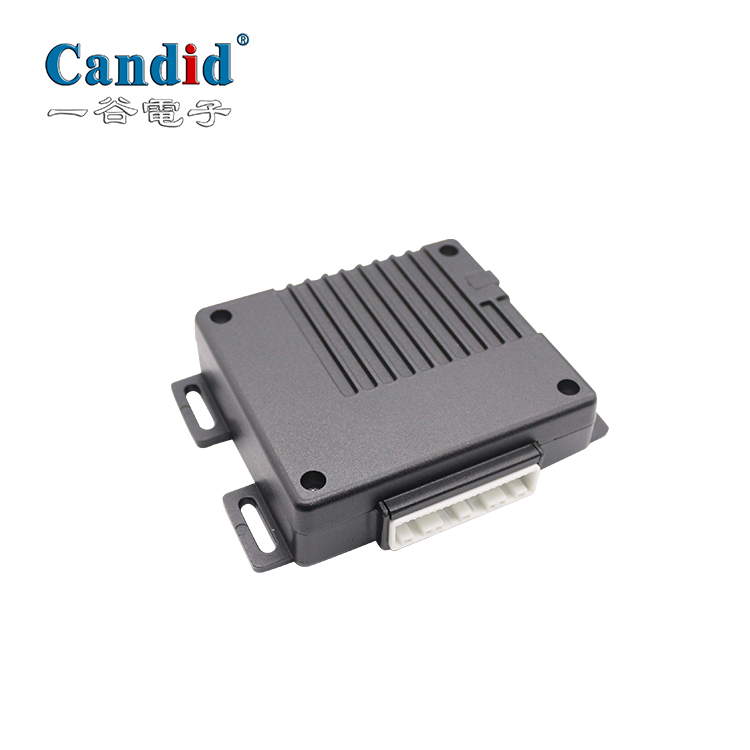

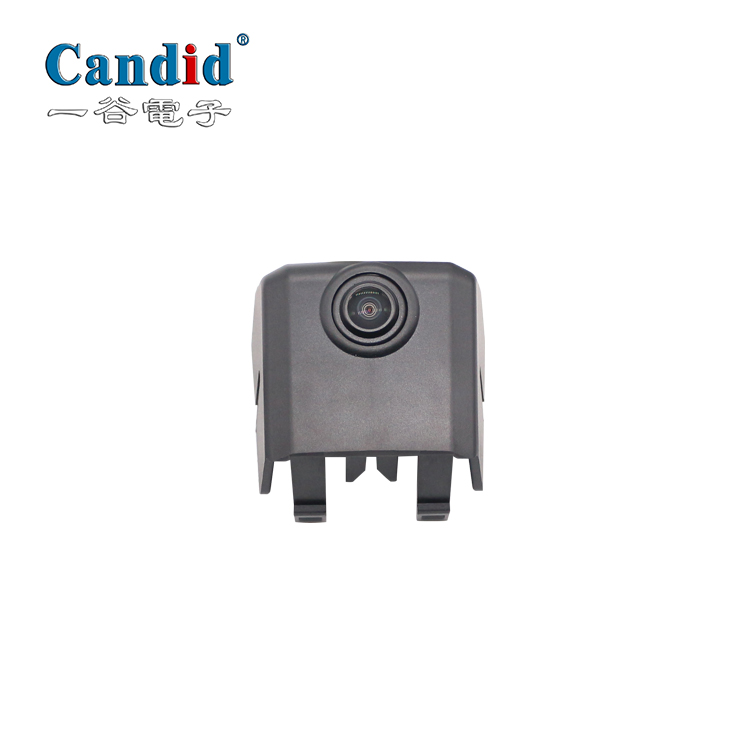

Around View Monitoring System for Land Cruiser 300(LC300)

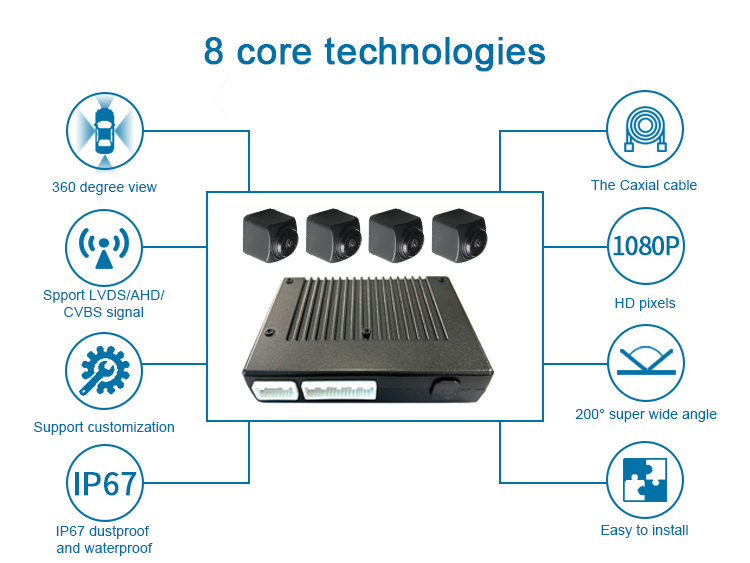

Features
| 1. Supported by the coaxial cable, the interference resistance is strong 2. High-definition image display 3. No drilling, perfect fit for the original car body 4. Customized 3D car model  |
Specifications
| TV Mode | PAL/NTSC |
| Image Sensor | 1/2.9 inch |
| Operation voltage range | DC12V(7.5-16V) |
| Working Current | 63.5mA±10mA |
| Power Consumption | 0.75W DC12 V |
| Video Output | 1.0±0.2Vpp 75Ω |
| USEFUL PIXELS | 1920*1080 |
| Minimum Illumination | 0.5Lux |
| Resolution ratio | 1920*1080 |
| Lens angle | 190° |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +60℃ |
| Storage Temperature | -40℃~+85℃ |
| Transmission Signal | LVDS / AHD |
| Interface | Coaxial or Customized Interface |
Applications
 |
