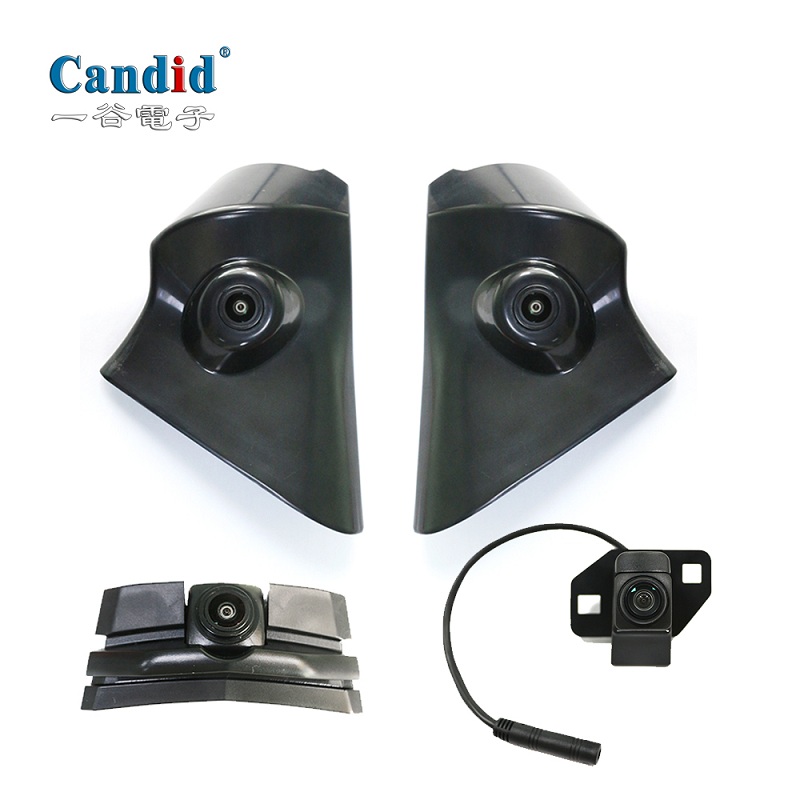

360° 3D Around View Monitor AVM System - Alphard
Features:
This AVM system features a customized around view monitoring system for Toyota Alphard, make your driving and parking safer and more easily.
This AVM system features a customized around view monitoring system for Toyota Alphard, make your driving and parking safer and more easily.
Features
AHD 1080P high resolution images output

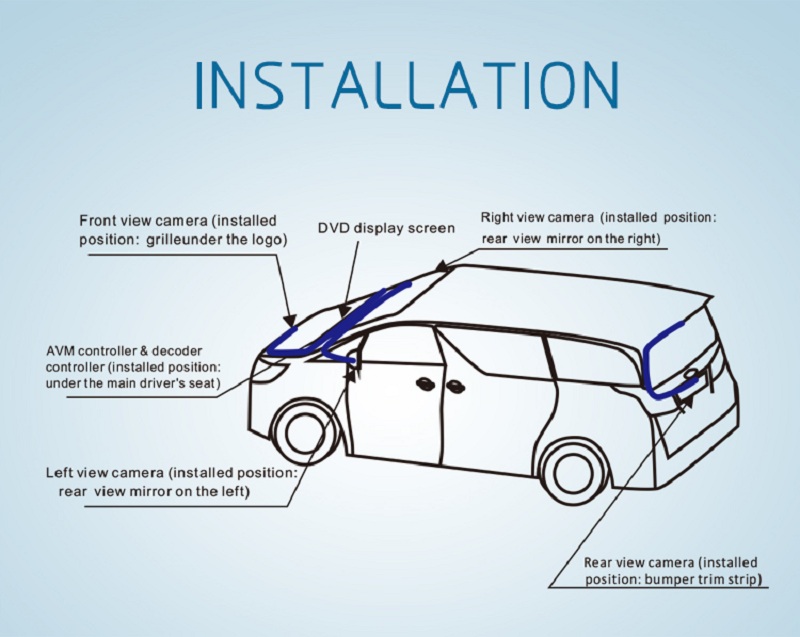

Customization designed and perfectly matched for Toyota Alphard, no impact on vehicle's appearance after installation
waterproof level: IP6K9K
auto calibration

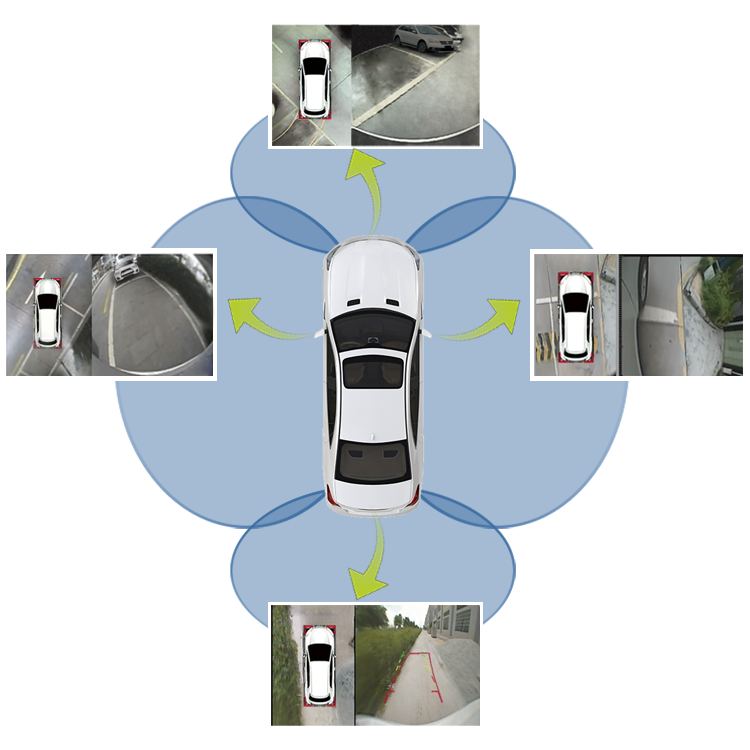

with four wide view angle cameras, show panoramic view around the vehicle without any blind spot
Super starry night vision
OE quality standard, extra long-term warranty of 3 years
360 avm systems
Customization designed and perfectly matched for Toyota Alphard, no impact on vehicle's appearance after installation
waterproof level: IP6K9K
auto calibration
with four wide view angle cameras, show panoramic view around the vehicle without any blind spot
Super starry night vision
OE quality standard, extra long-term warranty of 3 years
360 avm systems
Specifications
| sensor | SONY IMX307 （AHD） |
| TV Mode | PAL/NTSC |
| Image Sensor | 1/2.8 inch |
| Operation voltage range | DC12V(7.5-16V) |
| working current | 94mA±10mA |
| Power Consumption | 1.128W DC12 V |
| Video Output | 1.3±0.2Vpp 75Ω |
| USEFUL PIXELS | 1920*1080 |
| Minimum Illumination | 0.01Lux |
| Wide Dynamic | 95dB |
| Signal to Noise ratio | 46dB |
| Resolution ratio | 1080p |
| Gamma value | 0.45 |
| Lens angle | 130degree |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
| special function | Super starry night vision |
Applications
