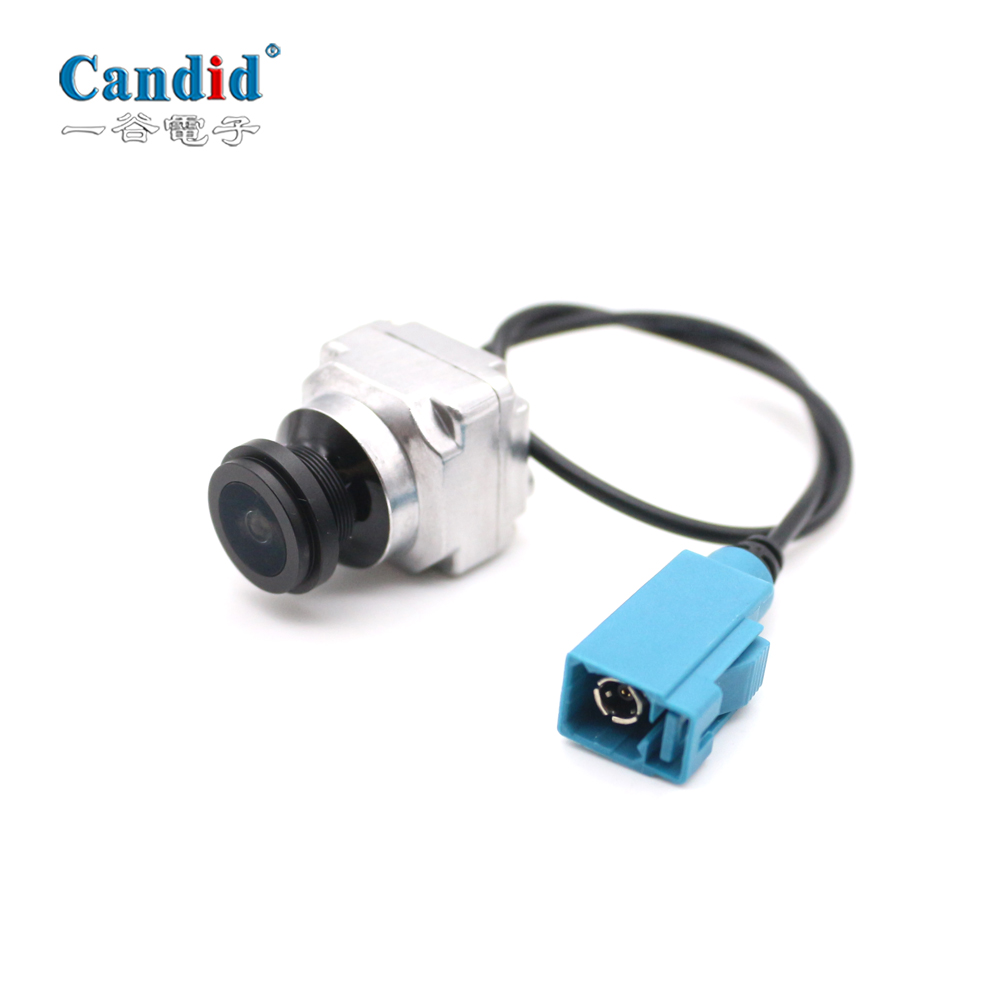

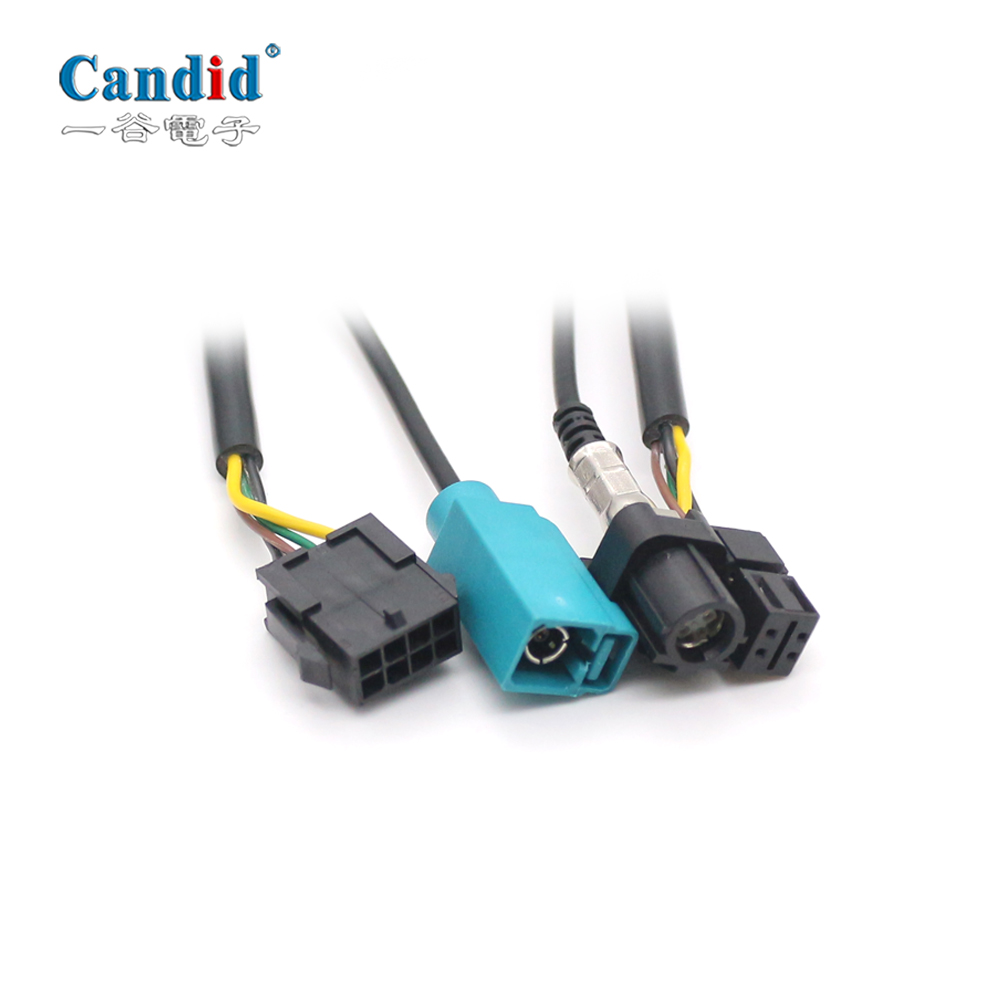

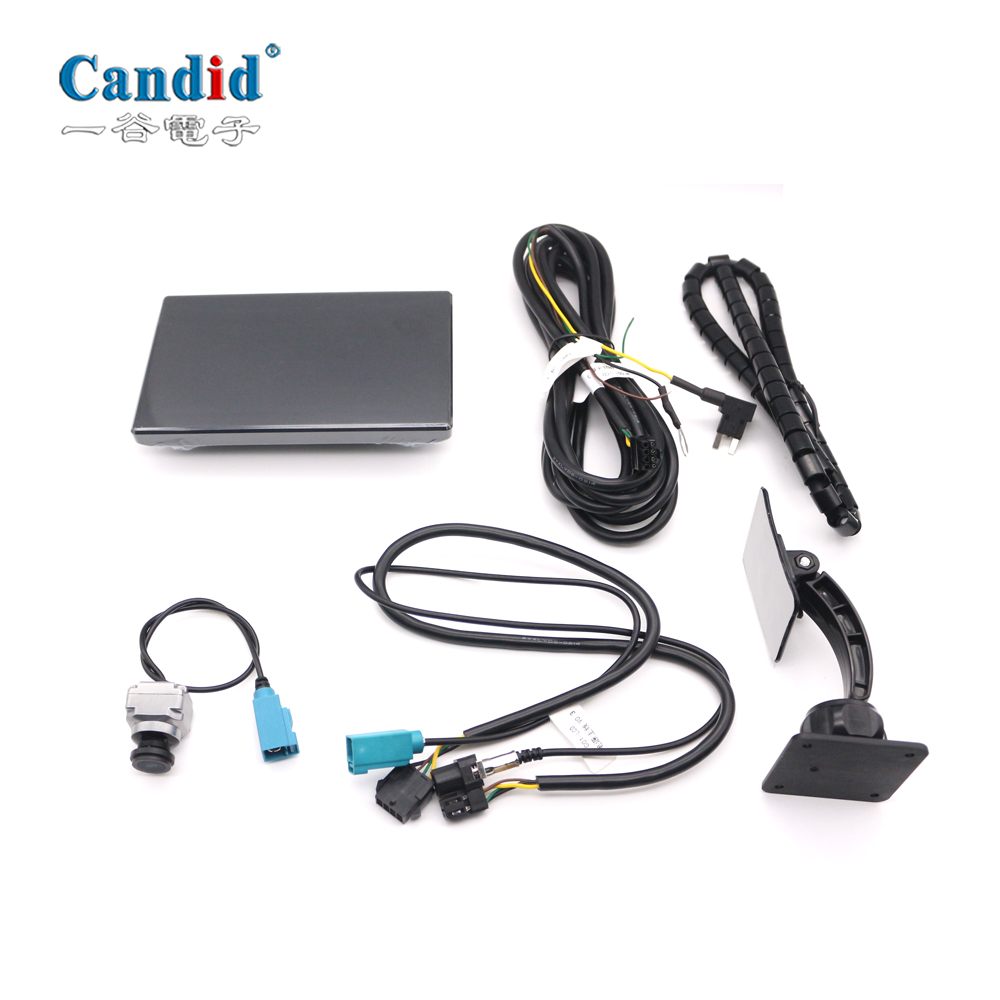

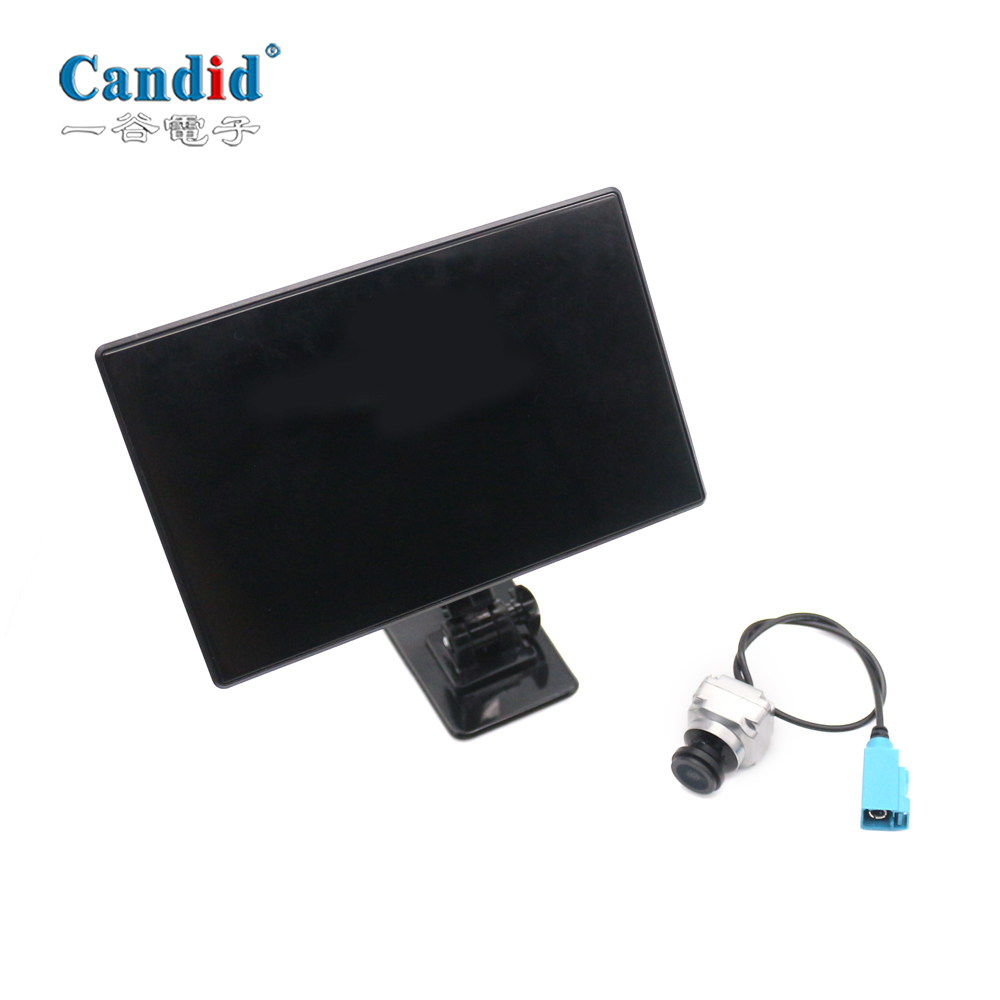

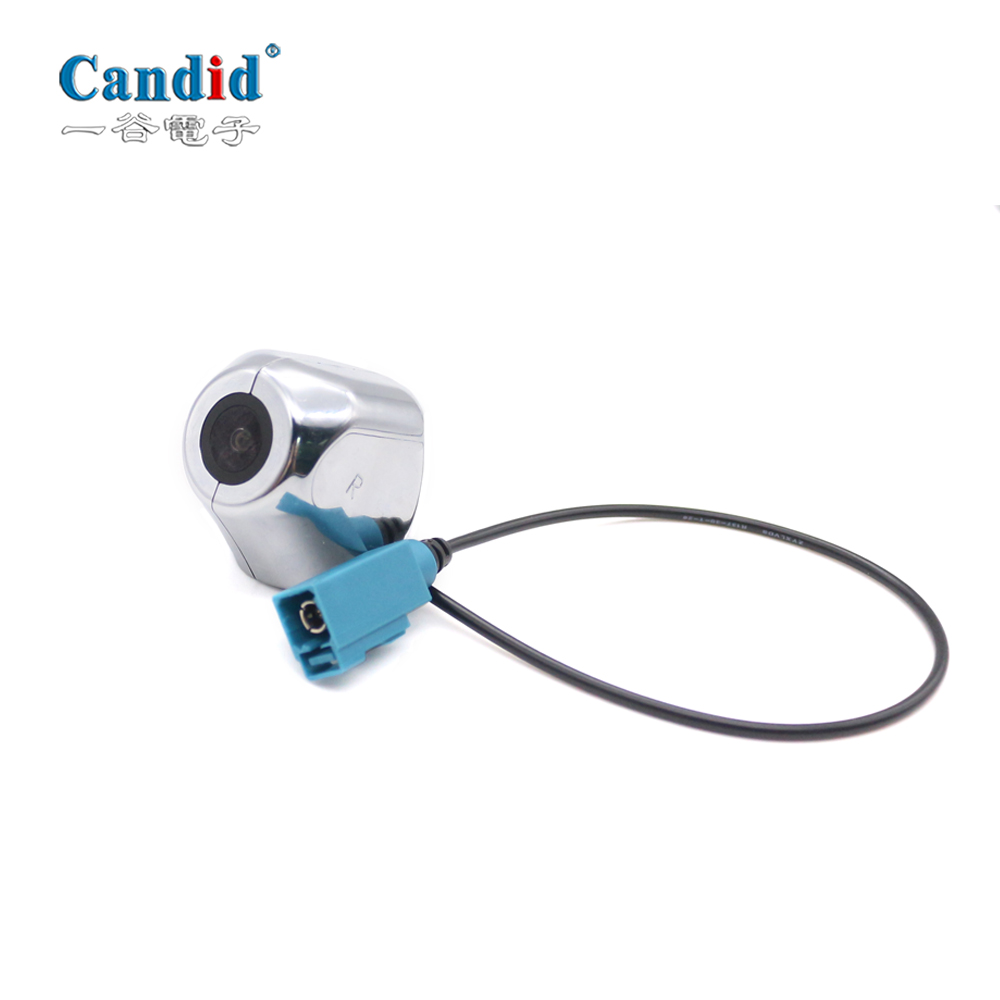

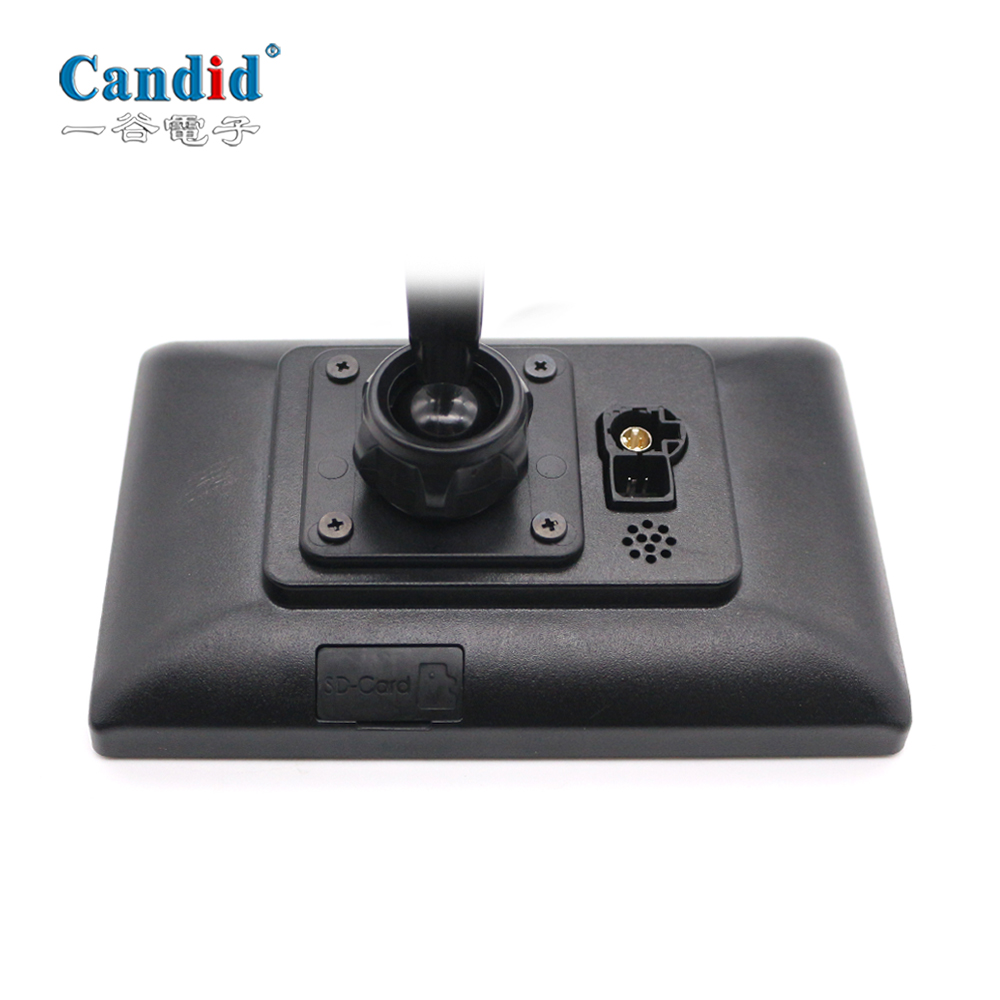

Passenger Vehicle CMS Electronic Rearview Mirror
See More, Drive Safer – Embrace the Revolution with CMS Smart Electronic Mirrors
Features
Rain does not block the view
Anti-glare design at night
LVDS coaxial signal
Rear Vehicle Recognition
Approach Warning
Superior Night Vision
WDR
Dashcam
IP68
1080P
Wide-angle Lens
Strong Light Inhibition
Specifications
| Shell Size | 138x88x25mm |
| Video Input | Digital coaxial input |
| Video Output | LVDS Signal |
| Video Output Format | 1440X810X60fps |
| FPS | 60fps/80ms |
| Horizontal Angle | 80° |
| Vertical Angle | 44° |
| Rated Voltage | DC12V |
| Rated Current | ≤0.6A |
| Rated Maximum Operating Current | ≤0.8A |
| Static Current | ≤0.4mA |
| Insulation Resistance | ≥100MΩ |
| Operating temperature | -20~70℃ |
| Storage temperature | -40~85℃ |
